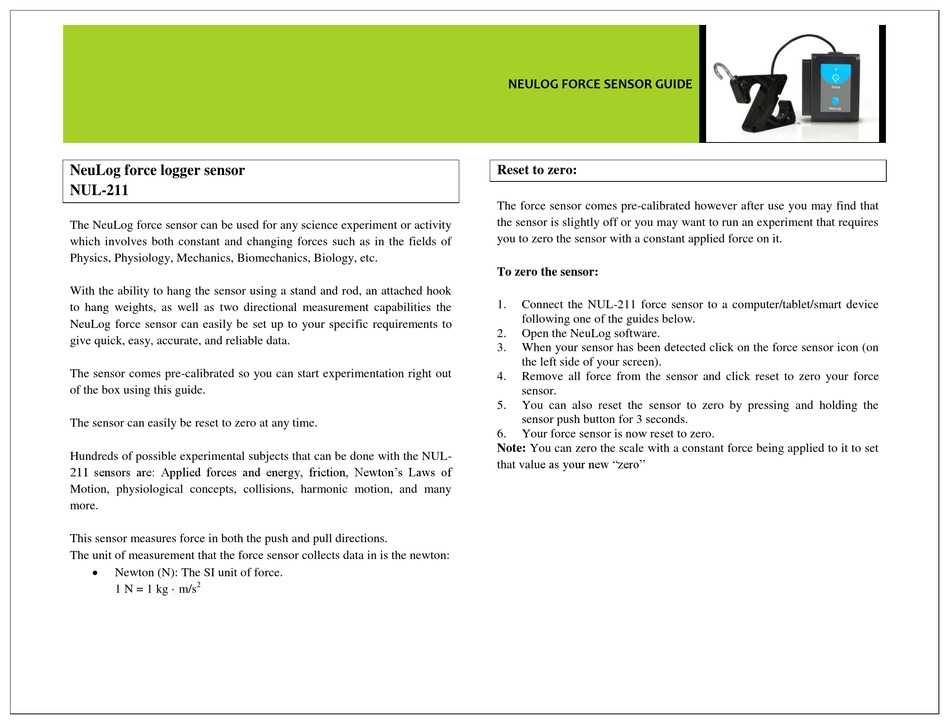

NeuLog force logger sensor
NUL-211
The NeuLog force sensor can be used for any science experiment or activity
which involves both constant and changing forces such as in the fields of
Physics, Physiology, Mechanics, Biomechanics, Biology, etc.
With the ability to hang the sensor using a stand and rod, an attached hook
to hang weights, as well as two directional measurement capabilities the
NeuLog force sensor can easily be set up to your specific requirements to
give quick, easy, accurate, and reliable data.
The sensor comes pre-calibrated so you can start experimentation right out
of the box using this guide.
The sensor can easily be reset to zero at any time.
Hundreds of possible experimental subjects that can be done with the NUL-
211 sensors are: Applied forces and energy, friction, Newton's Laws of
Motion, physiological concepts, collisions, harmonic motion, and many
more.
This sensor measures force in both the push and pull directions.
The unit of measurement that the force sensor collects data in is the newton:
Newton (N): The SI unit of force.
2
1 N = 1 kg · m/s
NEULOG FORCE SENSOR GUIDE
Reset to zero:
The force sensor comes pre-calibrated however after use you may find that
the sensor is slightly off or you may want to run an experiment that requires
you to zero the sensor with a constant applied force on it.
To zero the sensor:
1.
Connect the NUL-211 force sensor to a computer/tablet/smart device
following one of the guides below.
2.
Open the NeuLog software.
3.
When your sensor has been detected click on the force sensor icon (on
the left side of your screen).
4.
Remove all force from the sensor and click reset to zero your force
sensor.
5.
You can also reset the sensor to zero by pressing and holding the
sensor push button for 3 seconds.
6.
Your force sensor is now reset to zero.
Note: You can zero the scale with a constant force being applied to it to set
that value as your new "zero"
