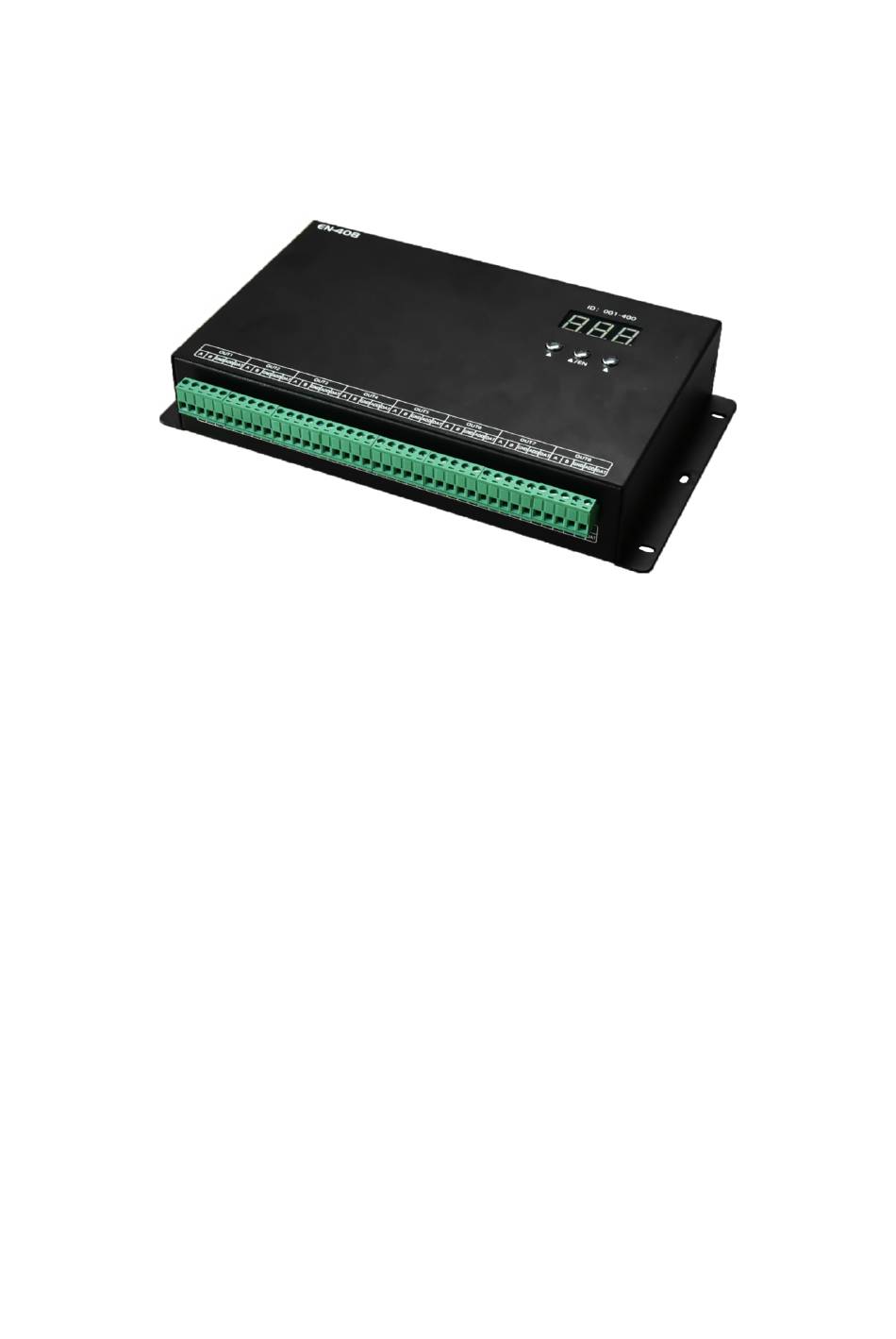

- Page 1 EN-408 MANUAL Version: 2.3 Model: EN-408-D8 2021-5...
-
Page 2: Table Of Contents
CONTENTS 1. FUNCTION OVERVIEW................................1 2. TECHNICAL PARAMETERS..............................1 3. CONNECTION MODE................................2 3.1. PORT INTRODUCTION..............................2 3.2. CONNECTION DIAGRAM OF CONTROLLER........................2 3.3. OPTICAL FIBER COMMUNICATION..........................2 3.4. CONNECT WITH LIGHTING FIXTURE..........................3 3.5. TRANSMISSION DISTANCE............................3 4. BASIC OPERATION................................4 4.1. MENU INTRODUCTIION............................... 4 4.2. -
Page 3: Function Overview
1. FUNCTION OVERVIEW 1. Support access and control by LED Player software or SN controller. 2. It supports 1,000,000 channels or cascade connection of 400 pieces controllers. 3. Use key of the controller to set the IP address of the controller. 4. -
Page 4: Connection Mode
Net weight: 1 kg Size: L253*W137*H45 Unit mm 3. CONNECTION MODE 3.1. PORT INTRODUCTION Port Description IN Connect with PC / SN controller / EN controller. Top left light Signal indicator, flicker when the 8 output port output the correct signal. Top right light Nonuse. -
Page 5: Connect With Lighting Fixture
Use UTP, distance between the controllers can be 100m. It can be 5km if use the optical fiber. 3.4. CONNECT WITH LIGHTING FIXTURE Please connect the cables in accordance with silk print on lighting fixture. ★ Signal cables connection cautions: 1. -
Page 6: Basic Operation
4. BASIC OPERATION 4.1. MENU INTRODUCTIION Button Description Long press Non-support. ID:001-400 ▲(Left) Short press Increase the left data. (Range is 0-4.) Long press 1) enter the ID setting. 2) Confirm ID. ▲/EN Short press Increase the middle data. (Range is 0-9.) ▲... -
Page 7: Configure Addressing
4.4. CONFIGURE ADDRESSING 1. .Long press “▲/EN” button and enter ID Setting. The lower right of each value of the digital tube flick “•”. ID:001-400 ID:001-400 ID:001-400 ▲ ▲/EN ▲ ▲ ▲/EN ▲ ▲ ▲/EN ▲ 2. Long press “▲” until the digital tube shows “888”. It is addressing during the lower right stroboscopic "•" of each value . -
Page 8: Addressing By Led Player
6. ADDRESSING BY LED PLAYER Access the controller correctly and open LED Player. Click Address of Debug to open the interface. After setting the chip address drove by the controller, click "Address All Controllers" to save address data into controllers. Note, If the controller is offline, there is a probability that the address data cannot be saved to the controller normally if it is offline. -
Page 9: Appendix (Chips Addressing)
Use Same Address: When saving the current chip address parameter, all chips are set the same address. Address Set the selected chip address. The chip list will be updated automatically after it is fill in the address. Note, Please do not fill in the value exceeding total chips to avoid abnormal output. Segment Sets the number of pixels driven by the selected chip. -
Page 10: Uccessfully Addressed And Set Parameters
Set parameters Custom Chip Addressing No signal Power-on GAMMA Channel Current Forward Serial State Setting SM18522P √ × √ √ √ × × √ SM18522PH √ × √ √ √ × × √ SW-D √ × × × × × ×... -
Page 11: Parts List
Byte + No signal + No Addressed Current parameter Self-Channel Setting Lighting color signal Chip after power on First Other First Other First Other First Other chip chip chip chip chip chip chip chip SM17522 Green Blue Yellow SM18522P Green Blue Yellow SM18522PH...
