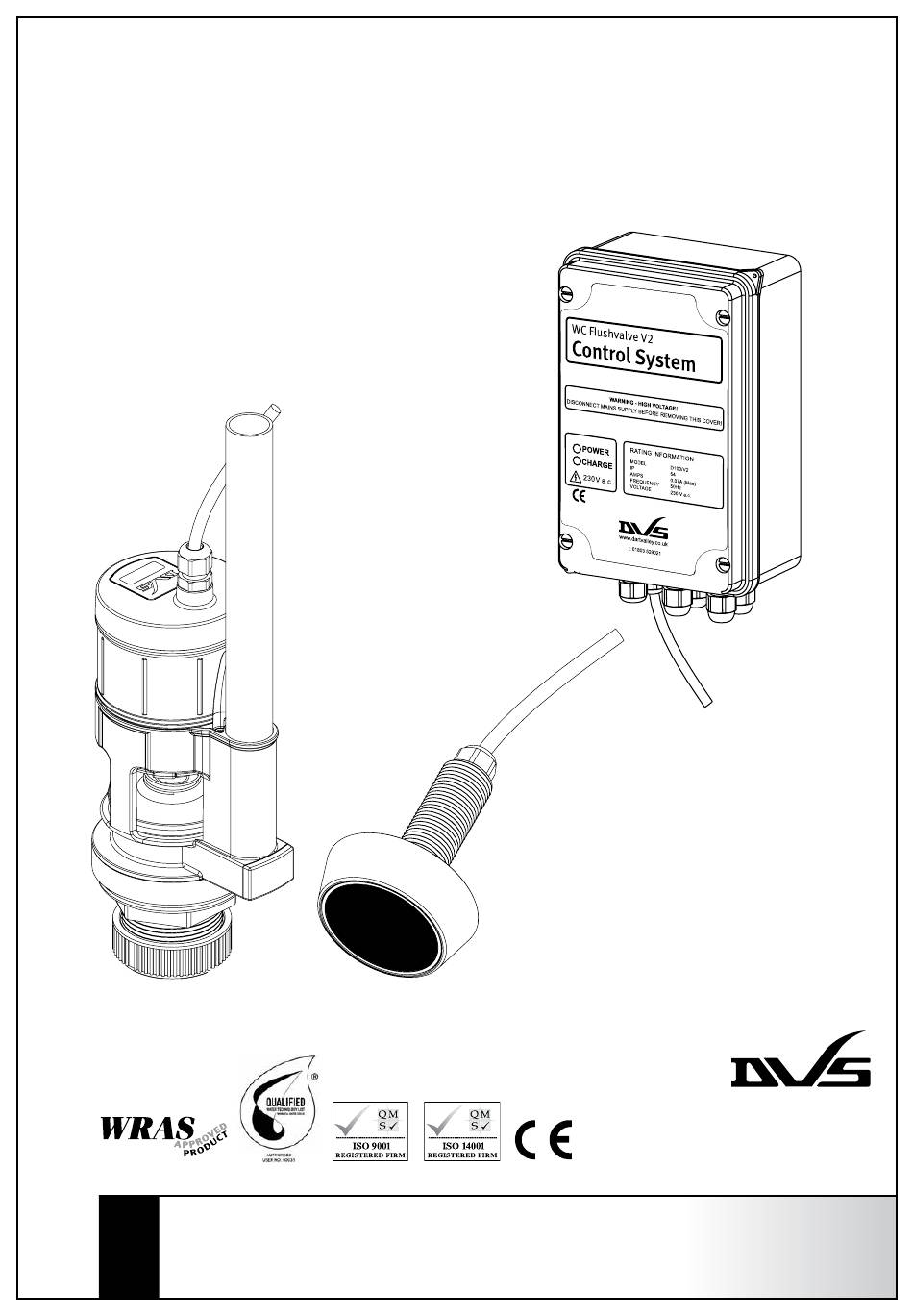

- Page 1 Version. INFL002 v2.1 101111 Flushvalve WC Flushing System V2 with the Fully Automatic Sensor Model: D103/V2/AUTO Dart Valley Systems Tel: +44 (0) 1803 529021 Fax: +44 (0) 1803 559016 www.dartvalley.co.uk Installation and operating instructions...
- Page 2 These instructions relate to the use of the Your kit will include the following items: Flushvalve WC Flushing System V2 with the Fully Automatic Sensor. Any external or ‘addon’ parts will be supplied with separate instructions. It is recommended that the electrical part of the installation be carried out by a qualified electrician in accordance with the latest electrical regulations.
- Page 3 Cable to Flushvalve Sensor with backplate If the mains lead becomes damaged, the Concealed cistern product should not be used. Contact DVS for Flushvalve in cistern replacement parts. WC pan 220-240V a.c Flushvalve WC Flushing System Instructions Version INFL002 v2.0 180511...
- Page 4 On multiple installations you will need to fit becomes damaged, the product should not an extra cable gland. Remove the blanking be used. Contact DVS for replacement parts. grommet on the bottom of the control box and fit the extra gland required.
-
Page 5: Minimum Level
Once the Flushvalve is installed reconnect the water supply and ensure that the cistern fills correctly and that there are no leaks. Maximum water level The maximum water level must be below the top of the overflow pipe. This is usually controlled by an inlet valve operated by a float. - Page 6 ‘pot’ at the 9 o’ clock position. If the sensor is fitted to a brick wall you may require a thread extension. Please contact DVS to purchase an extension and advise the wall thickness. Correct positioning Incorrect positioning...
- Page 7 Various sensor back plates and extensions are available from DVS for deep wall installations. Cable connection Connect the sensor cable to the manual sensor position in the control box using the connector plug.
- Page 8 700mm and a walkaway time of 4/5 Reset seconds. It should not be necessary to alter these factory preset settings. If adjustment is necessary contact DVS. 220-240V a.c 220-240V a.c When you first power up the system the The use of this crossed out Green Colour LED (Green ...
