Asada H-75 Instruction Manual

■HOW TO OPERATE
◆Ｈ－７５
①Loosen Knob and pull out Wire. (Do not pull out Wire any more if you find "red mark" on Wire.)
②Insert Wire to the pipe slowly and when Head reaches the blockage or Head cannot be inserted due to an
acute bend of the pipe, tighten Knob to hold Wire.
③Holding Grip by left hand, rotate Handle clockwise to clean the pipe.
④In case of heavy blockage, repeat to move Wire forward and backward with rotating Handle clockwise and
counter-clockwise.
⑤After cleaning the pipe, wash the Wire with water, apply anticorrosive oil and pull back wire into the Wire Case.
◆Ｈ－１５０
①Loosen Knob, pull up Chuck Handle to release Wire and pull out Wire. (Do not pull out Wire any more if you
find "red mark" on wire.)
②Insert Wire to the pipe slowly and when Head reaches the blockage or Head cannot be inserted due to an
acute bend of the pipe, push down Chuck Handle to hold Wire. Tighten also Knob if Wire cannot be held
by Chuck Handle.
③In case of heavy blockage, repeat to move Wire forward and backward with rotating Handle clockwise and
counter-clockwise.
④After cleaning the pipe, wash the Wire with water, apply anti corrosive oil and pull back Wire into
the Wire Case.
(Optional Accessory : Rowonal R72142)
Do not operate the Chuck Handle while holding Wire with the Knob. The Chuck Jaws will be damaged.
■HOW TO OPEN WIRE CASE
Wire Case can be opened to clean the inside of Wire Case or fix Wire entanglement.
◆How to open
Loosen 4 pcs. of Stop Bolt A (Fig.1) and loosen 4 pcs. of Stop Bolt fixing Wire Case.
(Wire Case for H-75 is fixed with 3 pcs. of Stop Bolt.)
■HOW TO FIX HANDLE （Ｈ－１５０）
Insert Handle and tighten Stop Bolt with the attached
Allen Wrench.
Allen Wrench can be used to open Wire Case.
CAUTION
Stop Bolt
Ａ
Ver.02 IM0541 A

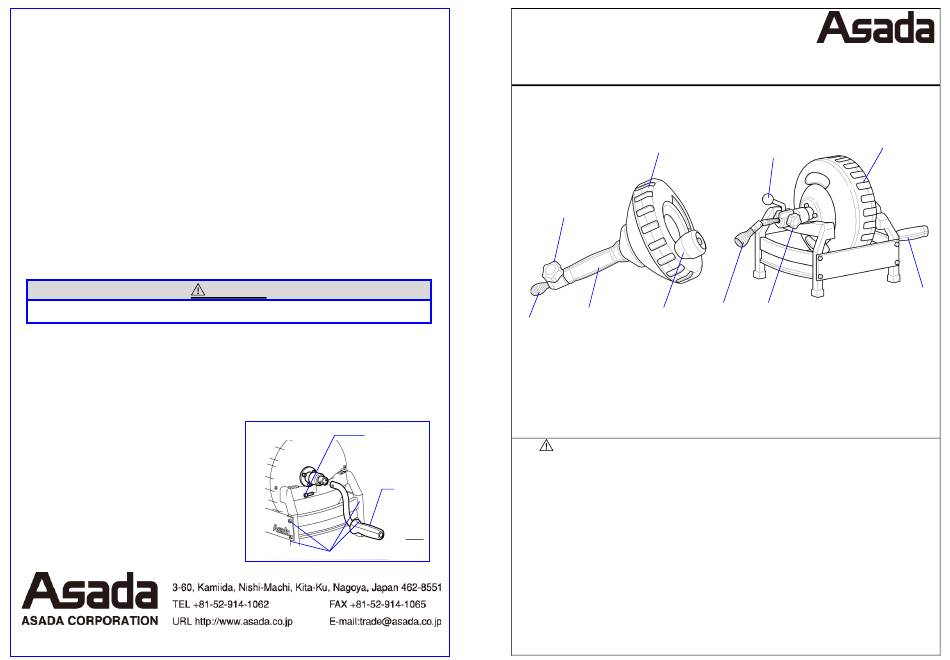

INSTRUCTION MANUAL
DRAIN CLEANER Ｈ－７５
②
③
①Wire Case
②Knob
③Wire
④Grip
⑤Handle
CLASSIFICATION OF CAUTIONS
WARNING ： Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
Handle
CAUTION ： Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury or damage to the machine.
Fig.1
DRAIN CLEANER Ｈ－１５０
①
③
④ ⑤
①
④
⑤
②
①Wire Case
②Knob
③Head
④Chuck Handle
⑤Handle
