WIRING DIAGRAM
for Cabinet Lifts with Manual Swivel

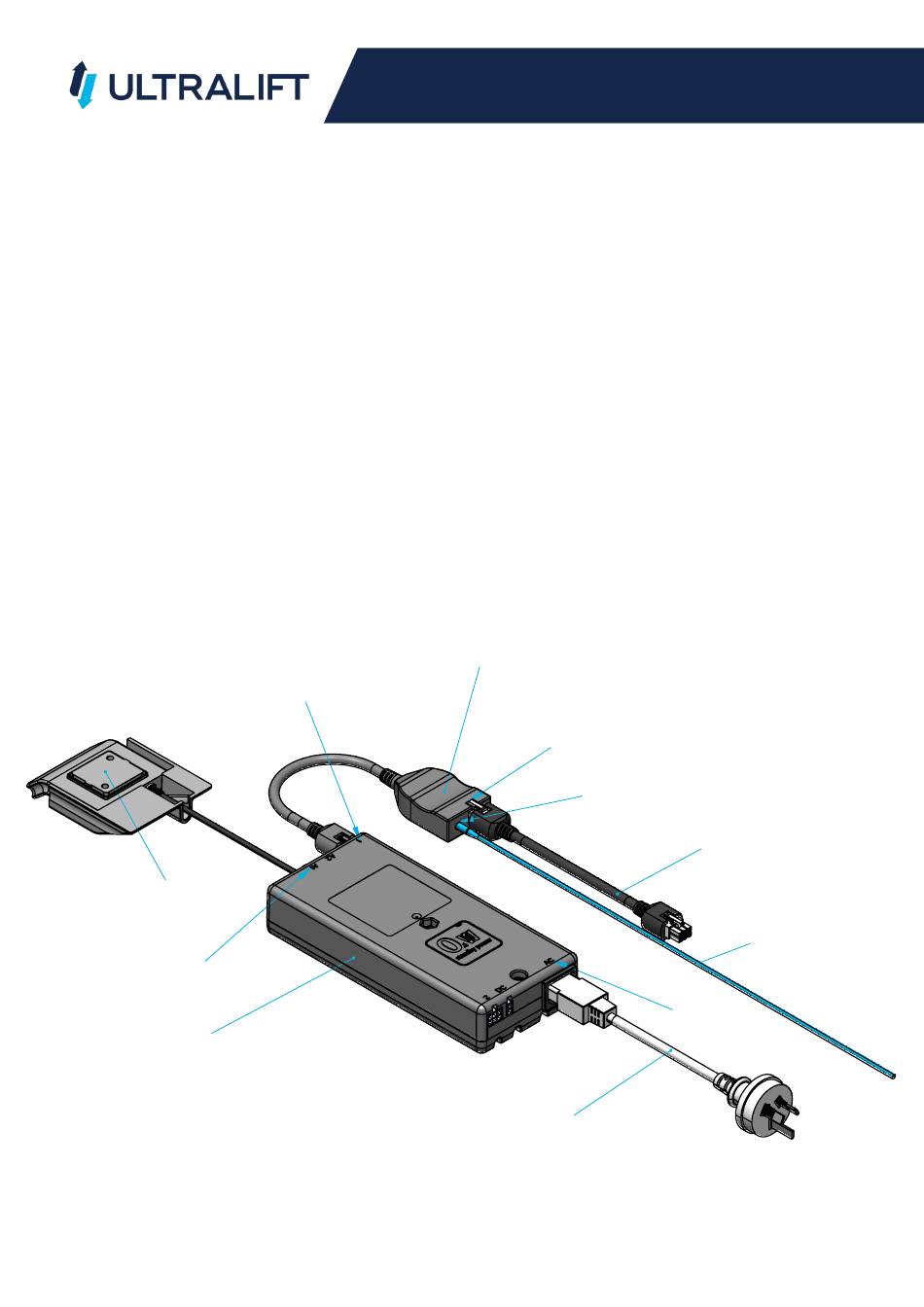

The wiring diagram shown below is the standard wiring arrangement for Ultralift's Phoenix and Titan with the
Manual Swivel.
This should not need to be changed unless swapping to an integrated automation setup using contact closure.
Ports and their uses:
• AC: 240 V, 50-60 Hz, 200 W
• A1 & A2: Parallel Controller Ports (Bluetooth, IR, or Dry Contact Closure for automation)
• 1, 2: Actuator/Column connected through the SLS unit
• Safety Switch: Connected to the SLS unit
ACTUATOR 1 PORT
DPG1C
A1 PORT
CBD6S-200W
WIRING DIAGRAM
CBD SLS
ACTUATOR PORT
POWER CABLE
SAFETY SWITCH PORT
ACTUATOR CABLE
SAFETY SWITCH CABLE
240V IN
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ultralift Phoenix and is the answer not in the manual?

Questions and answers

Summary of Contents for UltraLift Ultralift Phoenix

  • Page 1 WIRING DIAGRAM for Cabinet Lifts with Manual Swivel The wiring diagram shown below is the standard wiring arrangement for Ultralift’s Phoenix and Titan with the Manual Swivel. This should not need to be changed unless swapping to an integrated automation setup using contact closure.
  • Page 2 5. The infrared remote will now control the lift between the set limits. LEARNING A NEW REMOTE: To learn a new remote handset, point the remote at the IR receiver then press and hold the stop “-“ button for 10 seconds. Ultralift UIRC DP1U Infrared Remote IMPORTANT The lift should not be run up and down more than 4 times, or continuously at full load for more than 1 minute without a 10-minute break.
  • Page 3 OPERATION: AUTOMATION OPERATION: AUTOMATION Your product can be integrated into most control systems using dry contact relays. These instructions are provided for Automation specialist reference only. Please contact us, or an Automation specialist, before attempting this change. If your existing product does not have a DP1U Controller: Unplug and remove the original controller and replace it with a DP1U Controller.
  • Page 4 “LEARNING A NEW REMOTE” procedure should be followed. The Ultralift UIRC has a built in infrared receiver located behind the small hole on the side of the box to accommodate adhesive backed infrared emmiters without using the infrared eye extension.
  • Page 5 Release the “DOWN” button then press and hold again for 6 seconds. The lift should move up and down slightly. The system is now initialised. If you are still having issues, please contact Ultralift Australia on +61 3 9459 0873 for further support. Copyright © Ultralift Australia, all rights reserved...
