Instruction Manual for
1/4 HP Floating Fountain
Contents
Section 1 Safety Information..................2
Section 4 Troubleshooting...................10
Our Commitment..................................11
Part Number List.................................12
HQUA
HQUA-FS02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HQUA-FS02 and is the answer not in the manual?

Questions and answers

Summary of Contents for HQUA HQUA-FS02

  • Page 1: Table Of Contents

    HQUA Instruction Manual for 1/4 HP Floating Fountain HQUA-FS02 Contents Section 1 Safety Information…………..2 Section 2 General Information………..3-8 2.1 System Components 2.2 Specifications 2.3 Prepping for the Installation 2.4 Installation Section 3 Maintenance&WinterStorage…9 Section 4 Troubleshooting……………….10 Section 5 After-Sales Service…………...11 Our Commitment……...…………………..11...
  • Page 2: Section 1 Safety Information

    Safety Information Section 1 Safety Information Before starting the installation job, it’s very important to read the entire instructions below. Make sure that you understand these in order to avoid any potential hazards. Failure to do so may result in serious personal injury or damage to the equipment. Electric Shock •...
  • Page 3: Section 2 General Information

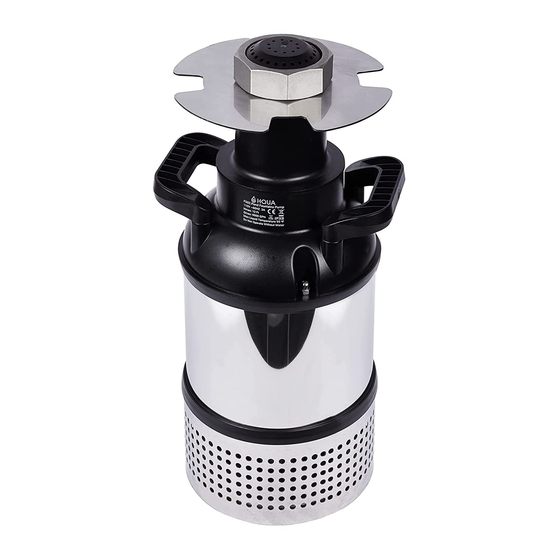

    Section 2 General Information ② ③ ① 2.1 System Components ① Floating Fountain Pump HQUA-FS02P 1. Easy to Install 2. Asynchronous Water-Cooled Motor, Stainless Steel Shaft Bearing. 3. Energy Efficient, Fully Sealed Motor. 2.9A, 320W 100-120V, 4. Stainless Steel Suction Screen & Body.
  • Page 4 General Information ⑥ ① ② ⑨ ⑦ ③ ④ ⑧ ⑤ Other Accessories Descriptions Number 2.5” Fastener for the spray nozzle ABS 3-layer spray nozzle 2.5” Flat Plastic Washer 8”×2.5” St. Steel Holder with 4 breaches 2.5”×4” Plastic Adapter Fitting 2”...
  • Page 5: Specifications

    General Information 2.2 Specification Power Max Pond Minimum Item Name Volts Amps Cord Size Depth FS02 110V 100’ 1/8 Acres 40” Pattern Size: 6’×25’ 2.3 Prepping for the installation: Tool Required: • Hammer • Boat/Raft/Swimsuit • 3/16” Allen Wrench • Shovel •...
  • Page 6 General Information Use the screws and nuts that provided in the package to assemble the floating. 2. Use the two carabiners to fix the rope on the float plate...
  • Page 7 Assemble all the accessories according to the figure above. (Follow this: Fastener-Spray Nozzle-Washer-Steel Holder-Adapter Fitting)- c, Place the float plate on the center of the pump with the HQUA logo facing up and screw the assembly in step b. Make sure the cord is below the floating.
  • Page 8 General Information 4. Fix the other side of the rope with the stakes by the cord locks. And hammer into the stake. You could adjust the cord locks to moor the float later. 5. Put the whole fountain assembly into the water and adjust rope by the carabiners or use a boat to help the fountain stay at your ideal position in your pond.
  • Page 9: Section 3 Maintenance&Winterstorage

    Maintenance & Winter Storage Section 3 Maintenance & Winter Storage Maintenance • Always unplug system before performing any maintenance or troubleshooting. • Always unplug system and refer servicing to a qualified electrician when: cord is damaged or frayed, compressor, power control, compressor fan, or other electrical components are producing unusual noises or odors.
  • Page 10: Section 4 Troubleshooting

    ISSUE Solution Intake Plugged or Fountain impeller stuck. Clean the intake. Contact HQUA if it still cannot be fixed. Not enough water in the pond. The water depth should not lower than 40”. Debris caught in nozzle hole or defective.
  • Page 11: Section 5 After-Sales Service

    HQUA warrants that the FS02 Floating Fountain is free from defects of material and workmanship for a period of 2 years from the date of purchase. During this period, HQUA will repair or replace, at its option, any defective HQUA UV chamber. Please return the defective part to your dealer for claim.
  • Page 12: Part Number List

    3/8”×16” Tent Stake 1/8” × 100 Feet St. Steel Coated Wire Rope with FS1022 hanging kit FS1023 2” St. Steel Spring Loaded Carabiner Hook FS1024 1/8” cord locks, spring stopper, two holes Version No.20200101 HQUA Technical Support Team At NY ..…..…………….….………….………………The End………………………………………………..
