Linksys WET54GS5 Quick Installation

®
A Division of Cisco Systems, Inc.

Package Contents

• Wireless-G Ethernet Bridge with 5-
• Setup CD-ROM
• User's Guide on CD
• Quick Installation Guide
• Detachable Antenna
• RJ-45 Network Cable
• Power Adapter
• Registration Card
2.4
GHz
Wireless-G
802.11g

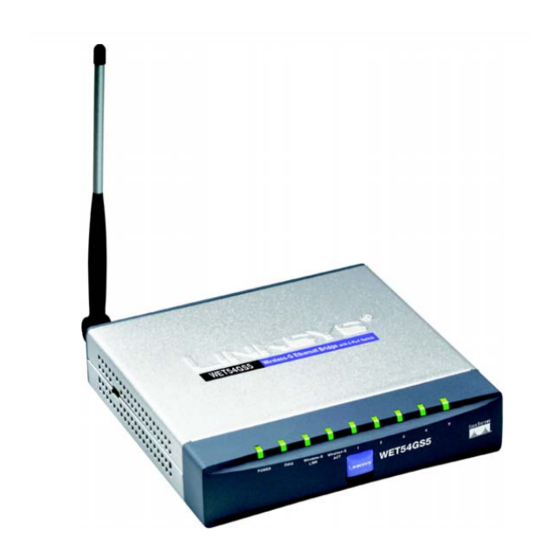

Ethernet Bridge
with 5-Port Switch
Wireless
Model No.
WET54GS5
Model No.
All manuals and user guides at all-guides.com
1
Connect the Wireless-G Ethernet
Bridge for Setup
A
Attach the detachable
antenna.
B
Plug the included Ethernet
network cable into one of the
LAN ports on the back panel of
the Bridge.
C
Plug the other end of the
Ethernet network cable into the
RJ-45 port of a hub, switch, or
router on your wired network.
D
Plug the supplied power
adapter into the Power port on
the side panel of the Bridge.
Then plug the other end into
an electrical outlet.
Port Switch
Quick Installation
2
A
Insert the Setup CD-ROM into
your PC's CD-ROM drive. The
Setup Utility should run
automatically, and the
Welcome screen should
appear. If it does not appear,
click the Start button and
B choose Run. In the field that
appears, enter D:\setup.exe (if
"D" is the letter of your CD-ROM
drive).
B
Click Setup to begin the setup
process.
C
Make sure the Bridge is
correctly connected to your
D wired network. Click Next.
D
The screen displays a list of
Wireless-G Ethernet Bridges on
your network, along with their
status information. Select the
Bridge you are currently
installing by clicking its name in
the Selection box. Click Yes.
E
A Password screen will appear.
In lowercase letters, enter
admin in the Password field.
Then click Enter.
Set up the Wireless-G
Ethernet Bridge
A
C
D
E
