SENTRONIC M-system Mini-M Series Instruction Manual

Super-mini Signal Conditioners Mini-M Series
VOLTAGE DIVIDER
Functions & Features
• Steps down a voltage too high to be input to a general
transmitter
• Divided to 1/1000 or by a specified ratio

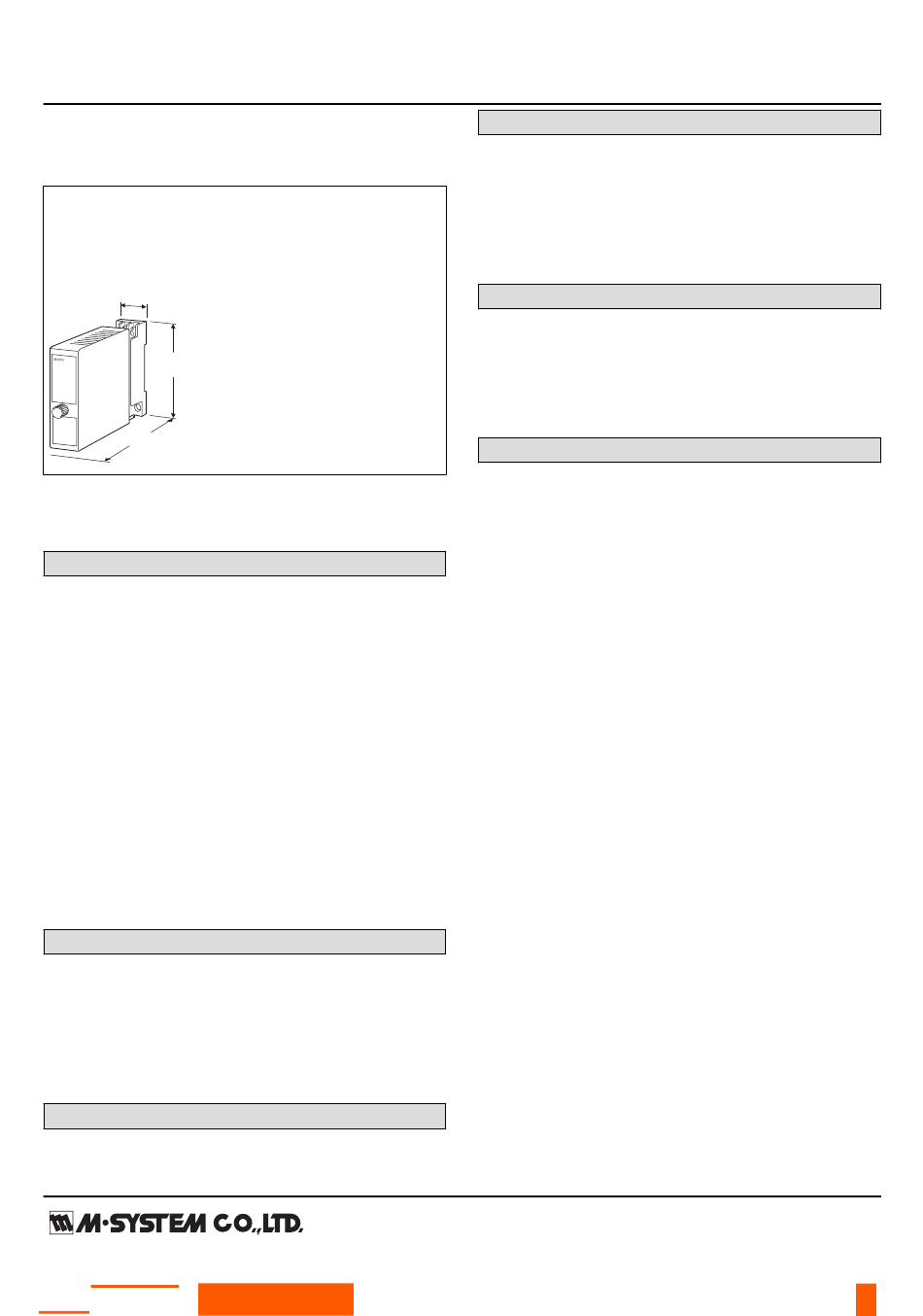

23 (.91)
76
(2.99)
124
(4.88)
mm (inch)
MODEL: M2VV-[1][2]
ORDERING INFORMATION
• Code number: M2VV-[1][2]
Specify a code from below for [1] and [2].
(e.g. M2VV-1/Q)
• Special ratio (For code 0)
• Specify the specification for option code /Q
(e.g. /C01/S01)
[1] DIVIDING RATIO
1: 1/1000
0: Specify
[2] OPTIONS
Other Options
blank: none
/Q: Option other than the above (specify the specification)
SPECIFICATIONS OF OPTION: Q (multiple selections)
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
TERMINAL SCREW MATERIAL
/S01: Stainless steel
GENERAL SPECIFICATIONS
Construction: Plug-in
Connection: M3 screw terminals (torque 0.8 N·m)
Housing material: Flame-resistant resin (black)
SEN TRONIC
AG
Produkte, Support und Service
INPUT & OUTPUT
Dividing ratio: 1/300 – 1/1000
Input voltage: Any specific DC voltage value up to ±1200 V
Input resistance: Approx. 1.1 MΩ
Output voltage: Input Voltage × Dividing Ratio
Output resistance: Approx. 1.1 kΩ with 1/1000 ratio;
Output Resistance [kΩ] ≈ Dividing Ratio × 1100
INSTALLATION
Operating temperature: -5 to +60°C (23 to 140°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Mounting: Surface or DIN rail
(Multiple installation bases can not be used.)
Weight: 150 g (0.33 lbs)
PERFORMANCE in percentage of span
Accuracy: ±0.2 %
Temp. coefficient: ±0.005 %/°C (±0.003 %/°F)
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 2000 V AC @1 minute (input or output
to ground)
