SENTRONIC M-SYSTEM Mini-M Series Quick Start Manual

Super-mini Signal Conditioners Mini-M Series
DC ALARM
(thumbwheel switch adjustment; single SPDT output)
Functions & Features
• Provides a SPDT relay output at a preset DC input level
• Thumbwheel switch setpoint adjustments
• Adjustable deadband
• Latching or non-latching output
• Relays energized or de-energized at tripped condition
• CE marking
Typical Applications
• Annunciator
• Various alarm applications

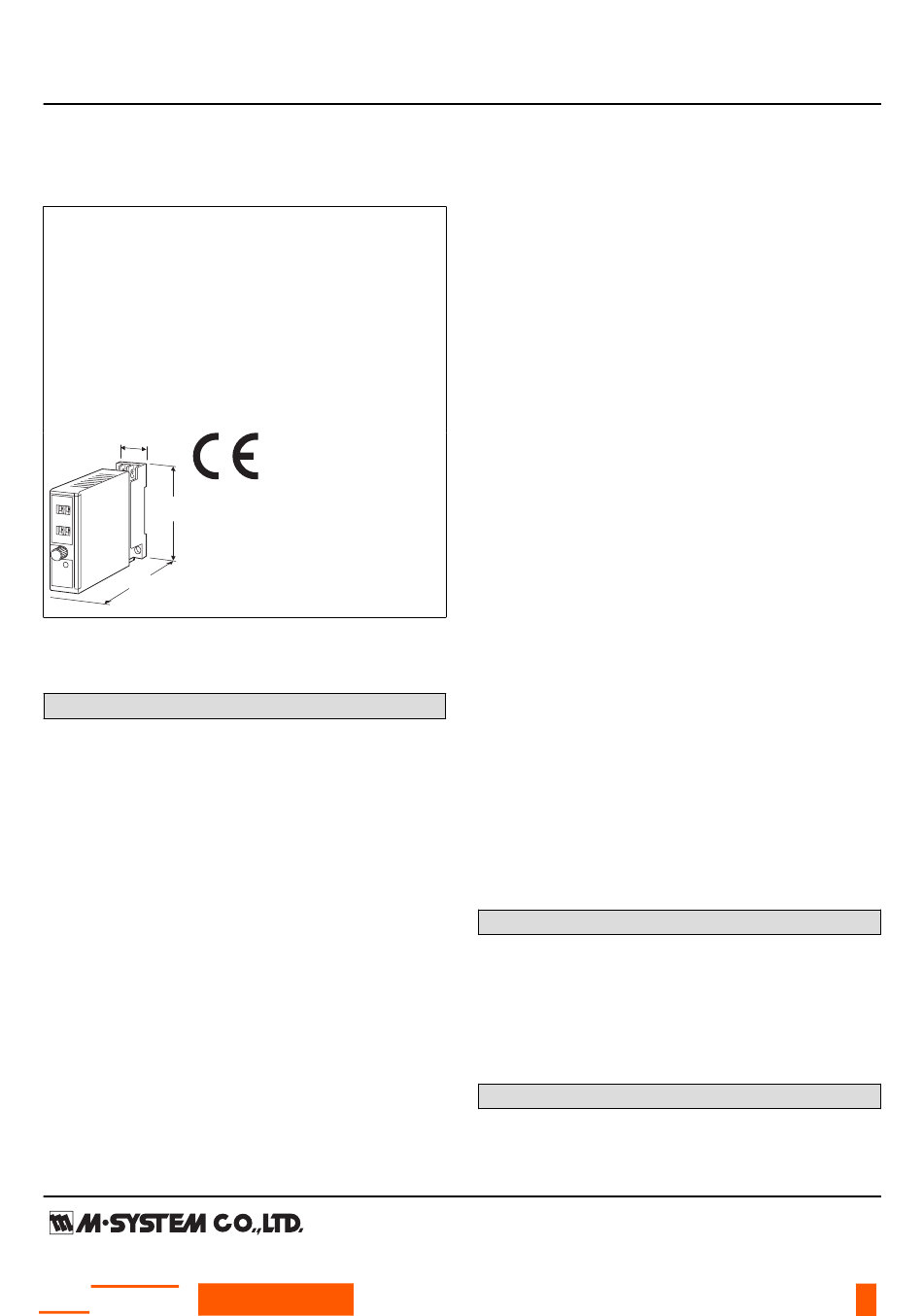

23 (.91)
76
4 4
(2.99)
3
1
124
(4.88)
mm (inch)
MODEL: M2AS1–[1][2][3][4]–[5][6]

ORDERING INFORMATION

• Code number: M2AS1-[1][2][3][4]-[5][6]
Specify a code from below for each [1] through [6].
(e.g. M2AS1-6111-M2/CE/Q)
• Specify the specification for option code /Q
(e.g. /C01/S01)
[1] INPUT
Current
A: 4 – 20 mA DC (Input resistance 250 Ω)
Voltage
4: 0 – 10 V DC (Input resistance 1 MΩ min.)
5: 0 – 5 V DC (Input resistance 1 MΩ min.)
6: 1 – 5 V DC (Input resistance 1 MΩ min.)
[2] ALARM OUTPUT
1: Hi (coil energized at alarm)
2: Hi (coil de-energized at alarm)
3: Lo (coil energized at alarm)
4: Lo (coil de-energized at alarm)
SEN TRONIC
AG
Produkte, Support und Service
[3] ON DELAY TIME
1: 0.05 second
2: 0.1 second
3: 0.2 second
4: 0.5 second
5: 1 second
6: 2 seconds
7: 5 seconds
8: 10 seconds
[4] POWER ON DELAY TIME
1: 1 second
2 : 2 seconds
3 : 3 seconds
4 : 4 seconds
[5] POWER INPUT
AC Power
M2: 100 – 240 V AC (Operational voltage range 85 – 264 V,
47 – 66 Hz)
DC Power
R: 24 V DC
(Operational voltage range 24 V ±10 %, ripple 10 %p-p max.)
R2: 11 – 27 V DC
(Operational voltage range 11 – 27 V, ripple 10 %p-p max.)
(Select '/N' for 'Standards & Approvals' code.)
P: 110 V DC
(Operational voltage range 85 – 150 V, ripple 10 %p-p max.)
[6] OPTIONS (multiple selections)
STANDARDS & APPROVALS (must be specified)
/N: Without CE
/CE: CE marking
OTHER OPTIONS
blank: none
/Q: Option other than the above (specify the specification)
SPECIFICATIONS OF OPTION: Q (multiple selections)
COATING (For the detail, refer to M-System's web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
TERMINAL SCREW MATERIAL
/S01: Stainless steel

GENERAL SPECIFICATIONS

Construction: Plug-in
Connection: M3 screw terminals (torque 0.8 N·m)
Housing material: Flame-resistant resin (black)
Isolation: Input to output to power
