Bedienungsanleitung
User Manual

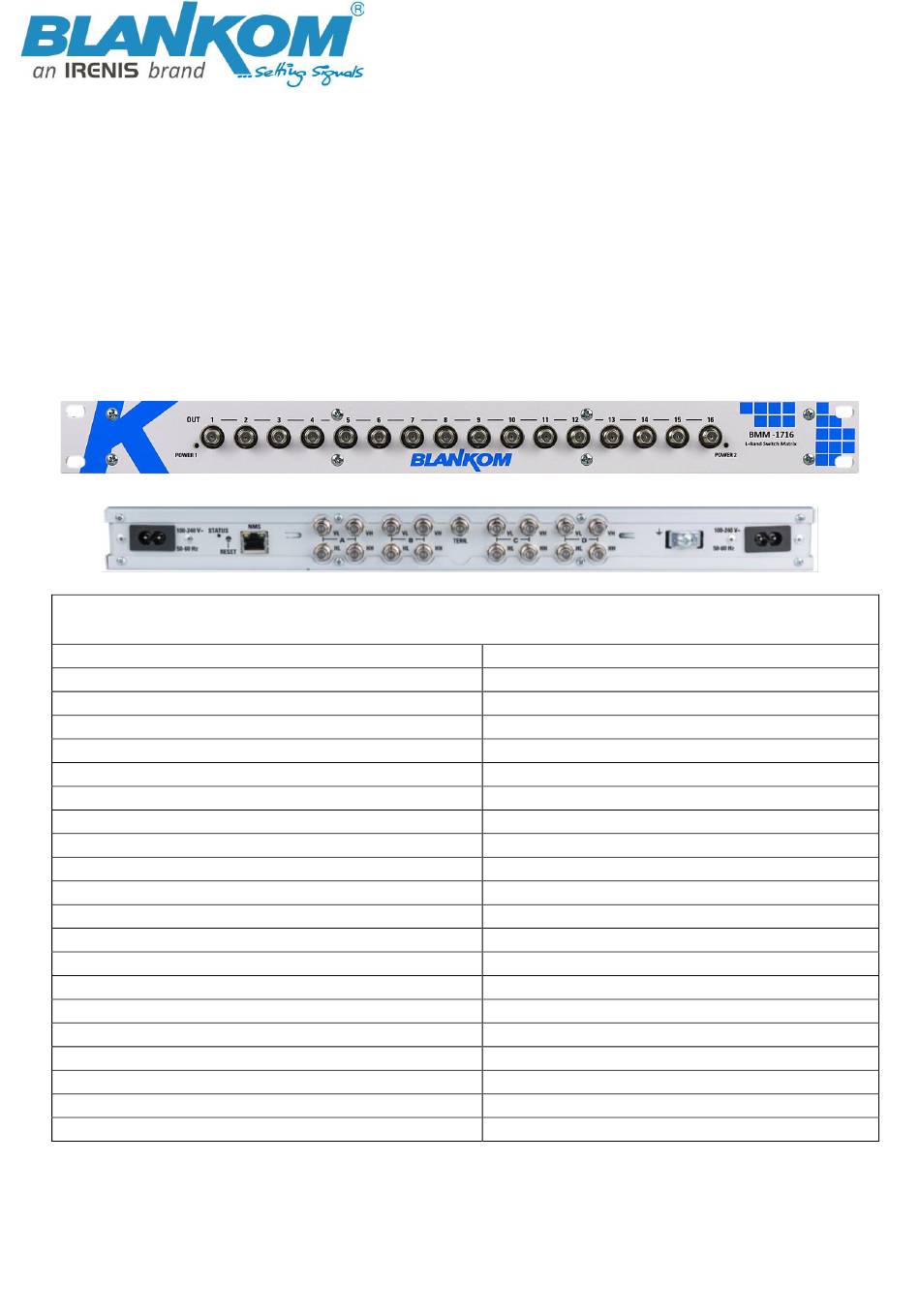

19" 17 –> 16 L-Band-Switch-Matrix
Technical Specification
Inputs / Eingänge
Outputs / Ausgänge
Impedance In- & Outputs / Impedanz
Frequency range / Frequenzbereich SAT
Frequency range / Frequenzbereich terr.
Max. Output level / Max. Ausgangspegel SAT
Max. Output level / Max. Ausgangspegel Terr.
Insertion loss / Anschlussdämpfung Terr.
Isolation / Entkopplung H/V
Return loss Inputs - Outputs / Rückflussdämpfung
LNB supply voltage / LNB Spannung
Max. LNB supply current / max. LNB Strom
Wide Band LNB support
Power consumption / Stromaufnahme
Netzteilredundanz / Power supply redundancy
Dimension / Abmessungen (LxBxH)
Weight / Gewicht
Operating temperature range / Temperaturbereich
Ethernet, Webserver
Connector type / Steckverbinder
PSU-Status signalling / Netzteil-Statusanzeige
All technical values are subject for changes w/o further notifications
User Manual BMM-1716
17
16
75 Ohm
950-2150 MHz
5-862 MHz
98 dBµv
passiv
18dB
30dB
> 10dB
15 VDC per trunk line / je Stammleitung
500 mA per trunk line / je Stammleitung
No/ Nein
4.7W
2x 90...265 VAC (47...63 Hz), 15 VDC / 3,3 A
482,6 x 310 x 44,5 mm
4kg
0...+55 °C
RJ45 / 100 BaseT
F-Connector
2x Red/Green LEDs at the front
IRENIS GmbH © 2021
Advertisement
Table of Contents
Related Manuals for Irenis BLANKOM BMM-1716
Summary of Contents for Irenis BLANKOM BMM-1716
-
Page 1: Technical Specification
Operating temperature range / Temperaturbereich Ethernet, Webserver RJ45 / 100 BaseT Connector type / Steckverbinder F-Connector PSU-Status signalling / Netzteil-Statusanzeige 2x Red/Green LEDs at the front All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 2: Brief Description
Test- und Laborprüfplätze optimal einsetzbar. Eine multiple Anwendung ermöglicht z.B. eine flexible Zusammenschaltung und Programmierung von nachfolgenden passiven und gemischten SAT/T2 - Multischaltersystemen ermöglicht eine konzeptionelle Erweiterung auf Anlagen mit mehr als den herkömmlichen 4 SAT-Positionen. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 3: Application Example Master / Backup Satellite Stations To Headend
User Manual BMM-1716 Application example Master / Backup Satellite stations to Headend: Applikationsbeispiel Master- und Backup Satellitensystem Zuführungen zum Headend: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 4: Table Of Contents
Installation guide for F-connectors: ..................... 32 / Installationshinweis für den F-Anschluß: .................. 32 Installation and safety instructions / Montage und Sicherheitshinweise ........32 Contact: ............................34 All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... - Page 5 Blankom / IRENIS GmbH. IRENIS GmbH reserves the right to revise this publication and make changes in its content from time to time, whereby it shall not be obligatory for IRENIS GmbH to provide notification of such revision or change.
-
Page 6: Statement / Anmerkungen
OUT 3, 7, 11, 15 to IN 3 OUT 4, 8, 12, 16 to IN 4 * Please adjust the Gateway address according to the routing settings in your network All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 7: Description Of Ports And Status Leds
If changes are to be made to the basic configuration via the Ethernet interface, the respective HTML user interface must be accessed via a connected computer. An internet browser is required as an operating program. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 8: Network Connection To The Computer
If the password or user name is not known or forgotten, a reset can be carried out via the button Reset, located at the rear side of the device. The device receives the access data and basic network parameters as described above. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 9: Menu Item 'Overview' (Menu Overview)
SAT input connector. If a red cross is displayed, no or a too low input signal is present at the assigned connector (<60 dBμV sum signal). All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 10: Menu Item 'Network Settings' (Menu Network Settings)
Depending on the used browser the refreshing might stuck. Edge is not a good choice so we recommend to use Mozilla: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 11: Menu Item 'Software Update' (Menu Software Update)
All set parameters are retained after the update. Browse to the update file (xxxx.bin) on the PC/Notebook by pressing the button Select All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 12: Menu Item 'Device Settings' (Settings Save/Load Settings)
Microsoft Word, Open Office or WordPad. Better to use a freeware tool called notepad++ which is conform to linux CR/LF operations. Note: If only one PSU is connected, the PSU- Redundancy status will be shown as: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... - Page 13 User Manual BMM-1716 All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 14 User Manual BMM-1716 This is a binary file which can be used for upload to the device!!! Not to review it!!! Reviewing the settings: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 15 Something for the freaks ;-) Load settings likes to get the *.esm file (not the RTF file!!!): The user/ Password can be changed to your needs: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 16 Back to its Function as a matrix: Connected LNB pathways will be shown when ready, and can be refreshed: Connected a Quattro LNB at the SAT D: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 17 User Manual BMM-1716 Now its time to adjust your Inputs to the outputs: And SAVE it. Ready... thats all All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
-
Page 18: Saftey And Mounting Instructions
User Manual BMM-1716 Saftey and Mounting instructions All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 19: Montage Und Sicherheitshinweise
User Manual BMM-1716 Montage und Sicherheitshinweise: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 20: Measurements
10 mA Leistungsverbrauch / Power consumption 4 W / 4.7 W (WEB RS) LNB-Versorgungsspannung / LNB Voltage power 15 V Schaltschwelle – Switching level 14.7V - 15V All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 21: Frequency Range Terr Receiver Output Port
User Manual BMM-1716 Frequency Range TERR receiver output port: Frequenzgang TERR output All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 22: Frequency Range Sat User-Ports Out
User Manual BMM-1716 Frequency Range SAT User-Ports Out: Frequenzgang SAT-Outputs: All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 23: Isolation / Schirmung H/V
User Manual BMM-1716 Isolation / Schirmung H/V All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 24: Isolation / Schirmung Terr
User Manual BMM-1716 ISOLATION / Schirmung TERR All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... - Page 25 39.81 0.021 -15.75 44.67 0.027 -14.75 50.12 0.033 -13.75 56.23 0.042 -12.75 63.10 0.053 -11.75 70.79 0.067 -10.75 79.43 0.084 -9.75 89.13 0.106 -8.75 100.00 0.133 All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 26 1000.00 13.333 12.25 1122.02 16.786 13.25 1258.93 21.132 14.25 1412.54 26.604 15.25 1584.89 33.492 16.25 1778.28 42.164 17.25 1995.26 53.081 18.25 2238.72 66.825 19.25 2511.89 84.128 All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
- Page 27 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
-
Page 28: Safety Instructions
Ventilation openings with objects such as newspapers, tablecloths, curtains, etc. (risk of fire). Warning: Follow all instructions in the device-specific operating manual. 3. Maintenance All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... - Page 29 Caution: Dispose of batteries (if present) in accordance with the applicable environmental regulations. Cartons and all pcs. of the packaging can be sent back to us for recycling for sustainable environment protection. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
-
Page 30: Sicherheitshinweise
Gefahr: Sorgen Sie für einen Freiraum von mindestens 20cm um das Gerät. Die Belüftung des Gerätes darf nicht durch Abdecken der Belüftungsöffnungen mit Gegenständen wie z. B. Zeitungen, Tischdecken, Gardinen usw. behindert werden (Brandgefahr). All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... -
Page 31: Wartung
Reparatur, andernfalls droht Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung: (Bei optischen Sendern sowie deren Verteilperipherie) ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de 6. -
Page 32: Installation Guide For F-Connectors
Ohm Widerstände ohne Gleichspannungssperren können das Gerät beschädigen! Unused trunk outputs must be terminated with 75Ohm resistors including DC Blocker. Otherwise the device may be inoperable or damaged. All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021... - Page 33 Please install according to the sticker on the Multiswitch Hinweis: Elektrische Installationen sollten nur durch geschultes Fachpersonal vorgenommen werden! Note: Electrical installations should only be done by well-educated and skilled technicians! All technical values are subject for changes w/o further notifications IRENIS GmbH © 2021...
-
Page 34: Contact
Director Technical Sales & Engineering IRENIS GmbH Hauptstr. 29 31171 Nordstemmen Phone: +49 5069 4809781 IRENIS technical hotline VoIP +49 5069 4399 -860 or -8601 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de Anmerkung: Alle von uns veröffentlichten Betriebsanleitungen richten sich an den Antennen- und IT-Fachmann, der über grundlegende Kenntnisse der...
