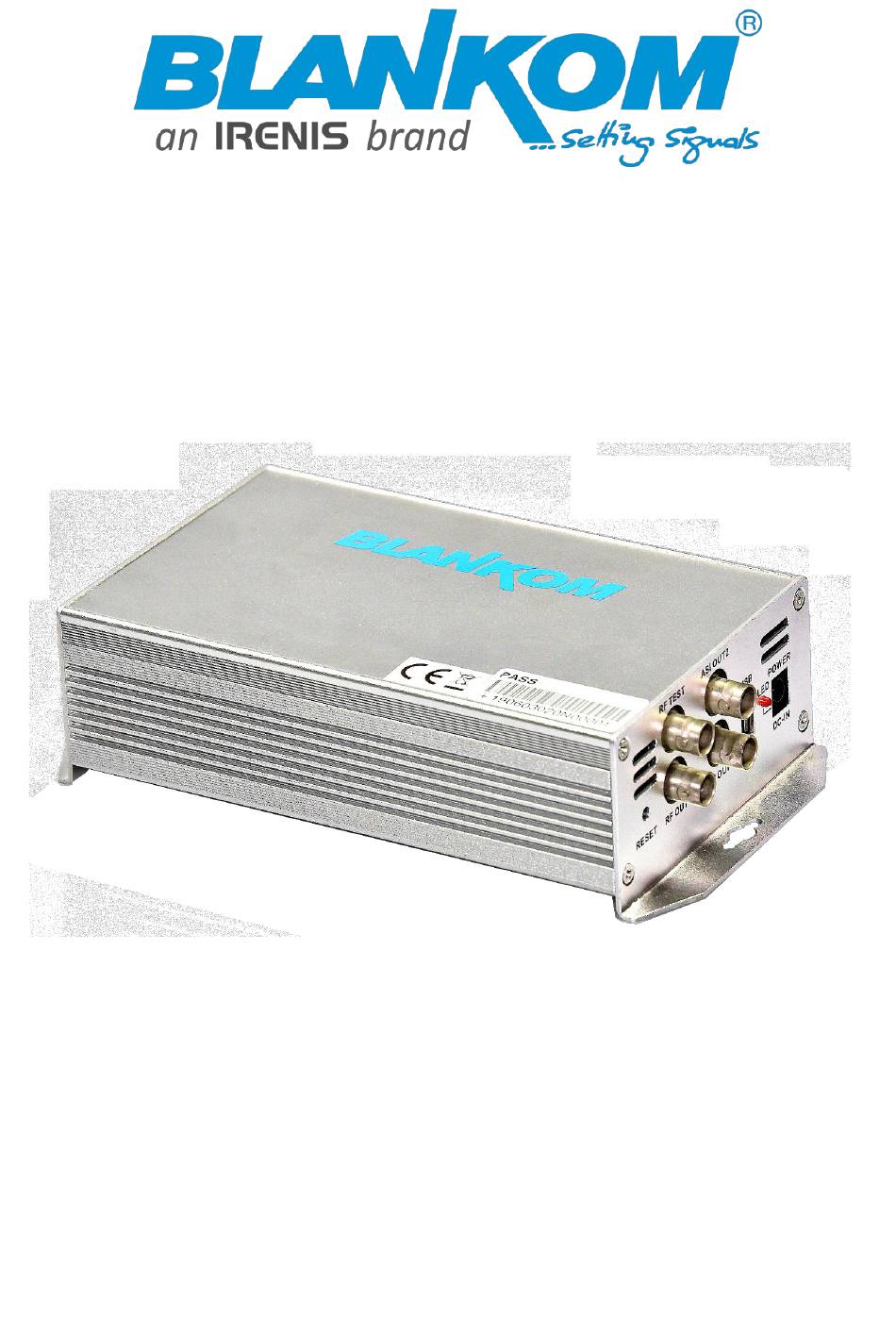

Page 1: Uhd- Hd/Sd Ip2Qam Multiplexer & Modulator In Dvb-C Annex A/C Qam
Installation and Operation Instructions IPQAM-801 8x UHD- HD/SD IP2QAM Multiplexer & Modulator in DVB-C Annex A/C QAM... - Page 2 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual About This Manual To whom it may concern This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in Microsoft Windows OS and components, electronics and especially in broadcast/broadband CATV as well as IPTV Streaming technologies and standards.
-
Page 3: Table Of Contents
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Table of Content 8X UHD- HD/SD IP2QAM MULTIPLEXER & MODULATOR IN DVB-C ANNEX A/C QAM ......1 ..........................5 HAPTER NTRODUCTION 1.1 P ........................... 5 RODUCT VERVIEW 1.2 K ............................. 5 EATURES 1.3 S ............................ - Page 4 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 7. E ............................. 52 NTSORGUNG INSTALLATION GUIDE FOR F-CONNECTORS: ..................52 ............53 NSTALLATION AND SAFETY INSTRUCTIONS ONTAGE UND ICHERHEITSHINWEISE : ............................54 OCUMENT ISTORY : ..............................55 ONTACT Author: RRi Page - 4 - Version 1.0 Date: 10-2019...
-
Page 5: Chapter 1 Introduction
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Chapter 1 Introduction 1.1 Product Overview A compact agile DVB-C A/C QAM channel modulator with integrated multiplexer receiving UDP multicast streams in any Codec/Resolution incl. SD, HD, 4K UHD compatible with h.265, h.264 &... -
Page 6: Specifications
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 1.3 Specifications Parameter Symbol Description Unit Remark Mechanical dimensions Height Width Depth IP Port Type 1000BASE-T Connector RJ45 Max. throughput Mbps HLS (HTTP Live Compatible protocol IP V4, RTSP, HLS, UDP Streaming) RF Output ... -
Page 7: Block Diagram
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 1.4 Block Diagram 1.5 Appearance and Description Front and Rear Panel Illustration Front (left picture) From Left to Right: COM-port for debugging by Serial adapter cable (not delivered with the product), GbE-DATAPort (includes the NMS Management), status LED's and a FAN (this needs to be kept open for air cooling purpose) Rear: RESET-Button (can be used to restore default settings) -
Page 8: Chapter 2 Installation Guide
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Chapter 2 Installation Guide This section is to explain the cautions the users must know in some case that possible injure may bring to users when it’s used or installed. For this reason, please read all details here and make in mind before installing or using the product. -
Page 9: Environmental Requirements
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 2.4 Environmental Requirements Item Requirement When user installs machine frame array in one machine hall, the distance between 2 Machine Hall rows of machine frames should be 1.2...1.5m and the distance against wall should be no Space less than 0.8m. -
Page 10: Chapter 3 Network Interface Setup
You can get the latest version of this management program from our service, it is a freeware, and green software, that is, you can run it directly without an installation process. Note: If you need the software, please get in touch with IRENIS / BLANKOM Service / Sales or the distributors contact to get it. - Page 11 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Figure 1 Start installation Figure2 Agreement acceptance Author: RRi Page - 11 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 12 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Figure 3 Installing Figure 4 Installation finished Author: RRi Page - 12 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
-
Page 13: Network Configuration Basics
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 3.1.4 Network configuration basics: Connect the PC (Personal Computer) and the device better not with a network cable directly (Check usage of crosslink cable eventually or network interface should support MDI/MDX), better using a at least Gigabit-Ethernet 1000BaseT switch and use a "ping"... -
Page 14: General Setup
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Intelligent switches with Loop detection can also be used i.e. if you separate the Network ports by VLAN's. You will find some more about streaming things at the end of this manual. Note: If you have set more than 2 IP ranges in your PC and try to get and check the Streams by VLC: VLC is somehow stupid and do not recognize via which Ethernet (RJ45 or WIFI) IP address –Source it can... - Page 15 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Insert admin as the password: than click OK Author: RRi Page - 15 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 16 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual So now you can search the unit in your network. (Windows should not act as an own SNMP Agent –port161). Author: RRi Page - 16 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 17 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual usually it will find: Author: RRi Page - 17 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 18 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual add it: And it will appear in the list: Simply connect to it: Success: Author: RRi Page - 18 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 19 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Notice the bottom window: Shows the actual status of your IP streams coming in… Now ‘READ’ from the IPQAM: And you will see the former configuration or all is left blank (factory): Author: RRi Page - 19 - Version 1.0...
- Page 20 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual You can change the values according to your need But need to ‘APPLY’ them to let them take effect. You always will see a status window popping up: Author: RRi Page - 20 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
-
Page 21: Dvb-Rf Settings
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual DVB-RF settings: We should go to QAM Parameters first to adjust maximum capacity of our Multiplexed Datastream: FIRST –READ the actual values than you should see the stored settings: Author: RRi Page - 21 - Version 1.0 Date: 10-2019... - Page 22 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Advice: max. DVB-C Channel bitrate can be 51.6Mb/s in a Transportstream but we recommend to give the QAM a little overhead of 10%. So 5 Mbit should be left in the calculations of your stream reception to avoid the distortion of all channels transmitted when heavy bitrate peaks are overloading the channel.
- Page 23 Note: We recommend to control and check the configured Transport-Stream Values with a TS analyser like a DekTec Fantasi (can be obtained from IRENIS GmbH) and the corresponding Software like stream-Expert either at the ASI out and / or the SPTS and MPTS streams.
- Page 24 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual See, the null-pakets of the DVB-TS is constant according to the max. datarate of the QAM-DVB-C settings whilke the content is fluktuating which depends on the Video stream and their single datarates. Now we can insert some more or less importand values to the PSI/SI tables: Author: RRi Page - 24 -...
- Page 25 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual To have a common Date/Time table transported you can use the PC to IPQAM mode of setting the Time & Date tables accordingly: -> Apply will update the TS-TDT/TOT table Actually the software is not capable of reading that from the Input-Streams and update that to the multiplexed TS.
- Page 26 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Please uncheck to insert the Character Table because that is not recommended and will not work actually. Please don’t tick the "Insert Char-table type", while Chinese need this, others not. Also the HEX-Generator as file importing for that isn’t finished. Than inject EIT –...
- Page 27 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Usually the receiving TV set would not update its NIT (Network information Table) Recommendation: You perform a manual tuning to the RF-channel Some TV sets will only be store one NIT, and if you need the using of a NIT in your Coax-CATV network we recommend to place these extra inserted QAM DVB-C Channel in a free 8MHz channel range as lowest as possible by i.e.
-
Page 28: Setting Up The Ip-Input Streams
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual But now something completely different: Setting up the IP-Input streams: We are using as example some HDMI to IP encoders and some DVB-SAT-Streamers: Please note, that these handover the STREAM-URI as UDP or RTP to be convenient with the VLC notation/syntax: VLC like to have an @ after the /: Author: RRi... - Page 29 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual While it displays it w/o the @: So it’s almost a good idea to monitor your input streams when configuring the multiplexer. Note: There are sooo many different sources which are acting slightly different from the standards for RTSP and if you face problems, we can arrange a remote login to the unit with i.e.
-
Page 30: Ip-Input Parameter Setting
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual IP-Input Parameter setting: Addresses, Ports and mode can be adjusted here. Enabling and disabling as well as changing the Service provider name and program name. The URI for VLC udp with an @ works here as well. Author: RRi Page - 30 - Version 1.0... - Page 31 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Please be a little patience, it take some time to acquire a stream and insert this into the mux. Channel Datrates depending on the modes setup: Symbol rate is usually 6750-6850 and 256 QAM the highest and best value for QAM out: max.
-
Page 32: Change Network And General Commands
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Change network and general commands: Here you can change the device Network parameters to your needs. Its almost helpful to have the sources of the IP streams in the same subnet like this QAM Modulator. -
Page 33: Tv Specialities
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Some useful remarks: Installing the device in the place in which environmental temperature between 0 to 45 °C Assure good ventilation for the heat-sink on the rear panel and other heat-sink holes if necessary ... - Page 34 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Author: RRi Page - 34 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
- Page 35 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Signal dB might be too high – please use attenuators and screw down the level: here we have already -20dB… A CATV measurement instrument /spectrum analyser might be very necessary. TV sets are feeling well if the QAM RF level input would be not more than 75-80 dBµv. The Unit is transmitting at the output more than 110dBµV so you should attenuate if you have not soo ,long distances by Coax and notz so much splitters in that.
- Page 36 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Found them: Author: RRi Page - 36 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
-
Page 37: Some Useful Hints About Network Streamings
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Some useful hints about network streamings: We recommend to make yourself familiar with the h.264 AVC (and HEVC depending on Encoder unit) encoding methods as well as streaming itself. IGMP is one of the important mechanism for IPTV securing overloadings of i.e. STB’s by pushing too many streams to it. -
Page 38: General Notes About Streams
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual decoded pictures at that location in the video stream despite using different pictures, or no pictures at all, as references prior to the switch. General notes about Streams: Multicast Address Ranges: We recommend, that the addressing of your Multicast streams should be in conjunction with this listings to avoid conflicts with other network equipment or protocols. -
Page 39: Registered Port
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Multicast (as opposed to unicast) is used to send UDP packets from 1 source to multiple destination servers. This is useful for example for streaming from a satellite/DVB-T receiver to multiple receiving PCs for playback. Multicast can also be used on the output of an encoder to feed multiple streaming servers. - Page 40 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Range for Ephemeral port Internet Assigned Numbers Authority (IANA) suggests the range 49152 to 65535 (2 to 2 −1) for dynamic or private ports. [note 2] Many Linux kernels use the port range 32768 to 61000. FreeBSD has used the IANA port range since release 4.6.
-
Page 41: Rtp
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual checksum field may be used for error-checking of the header and data. This field is optional in IPv4, and mandatory in IPv6. The field carries all-zeros if unused. RTP: a part from: https://tools.ietf.org/html/rfc3550 Chapter 11: RTP relies on the underlying protocol(s) to provide demultiplexing of RTP data and RTCP control streams. - Page 42 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Author: RRi Page - 42 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx...
-
Page 43: Annex Mpeg
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual ANNEX MPEG MPEG PSI/SI Information’s: We assume, that the user is familiar with all abbreviations mentioned in this manual. Author: RRi Page - 43 - Version 1.0 Date: 10-2019 BLANKOM-IPQAM-801_User_Manual_ENv1.0.docx... -
Page 44: Annex Channel Plan
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual ANNEX Channel Plan (CATV channel plan) Kanal- Mitten- Bild- T on- Kanal- Mitten- Bild- T on- Bereich Kanal Bereich Kanal frequenzen frequenz träger träger frequenzen frequenz träger träger Bands Channel Bands Channel Channel Middle... -
Page 45: A Ppendix Db
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Appendix DB Conversions of Power @ 75Ω / Umrechnungstabelle dBµV <-> dBm dBmV dBµV dBm 75Ω mW 75Ω -40.75 2.51 8.4E-05 -39.75 2.82 1.1E-04 -38.75 3.16 1.3E-04 -37.75 3.55 1.7E-04 -36.75 3.98 2.1E-04 -35.75... - Page 46 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual dBmV dBµV dBm 75Ω mW 75Ω -10.75 79.43 0.084 -9.75 89.13 0.106 -8.75 100.00 0.133 -7.75 112.20 0.168 -6.75 125.89 0.211 -5.75 141.25 0.266 -4.75 158.49 0.335 -3.75 177.83 0.422 -2.75 199.53 0.531 -1.75...
-
Page 47: Appendix A
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Appendix A Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen. ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. -
Page 48: Safety Instructions
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Safety instructions Read the safety instructions carefully before assembling or commissioning the device and ensure that you comply with them 1. Installation Danger: The device may only be installed and started up by competent people (see EN 60065). ... - Page 49 IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Danger: Ensure that there is a clearance of at least 20cm around the device. The device ventilation is not permitted to be impaired by covering the Ventilation openings with objects such as newspapers, tablecloths, curtains, etc. (risk of fire). ...
-
Page 50: Sicherheitshinweise
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Sicherheitshinweise Sicherheitshinweise bitte vor Montage bzw. Inbetriebnahme des Gerätes sorgfältig lesen und befolgen. 1. Installation Gefahr: Das Gerät darf ausschließlich von sachverständigen Personen (siehe EN 60065), installiert und in Betrieb genommen werden. Gefahr: Das Gerät und/oder die Verteilperipherie muß... -
Page 51: Wartung
Reparatur, andernfalls droht Gefahr eines elektrischen Schlags (Lebensgefahr) und Brandgefahr. Warnung: (Bei optischen Sendern sowie deren Verteilperipherie) ziehen Sie den Netzstecker bevor das Gerät ausgebaut wird. Bei Fragen zur Reparatur wenden Sie sich an den IRENIS-Service: E-Mail: info@blankom.de , Kontakt: www.blankom.de 6. -
Page 52: Entsorgung
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual 7. Entsorgung Vorsicht: Entsorgen Sie das Gerät entsprechend den geltenden umweltrechtlichen Bestimmungen. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll! Vorsicht: Entsorgen Sie Batterien (falls vorhanden), entsprechend den geltenden umweltrechtlichen Bestimmungen. -
Page 53: Installation And Safety Instructions
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Installation and safety instructions / Montage und Sicherheitshinweise Die beschriebenen Geräte dienen ausschließlich der Installation von Satelliten-Empfangsanlagen. The equipment described is designed solely for the installation of satellite receiver systems. ... -
Page 54: Document History
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Free circulation of air must be possible to discharge the heat emitted by the unit. Risk of overheating! Zulässige Umgebungstemperatur -20 bis +50°C Permissible ambient temperature -20 to +50°C Important notes: / Zur Beachtung ... -
Page 55: Contact
IPQAM-801 DVB-C A/C Modulator IP to QAM User Manual Contact: IRENIS GmbH Hauptstr. 29 31171 Nordstemmen- Germany Phone: +49 5069 4809781 Managing Director: Dipl.Ing. Murad Önol Commercial Register: HRB 206370 / District Court Hildesheim Web: www.blankom.de E-Mail: info@blankom.de Author: RRi Page - 55 - Version 1.0...
