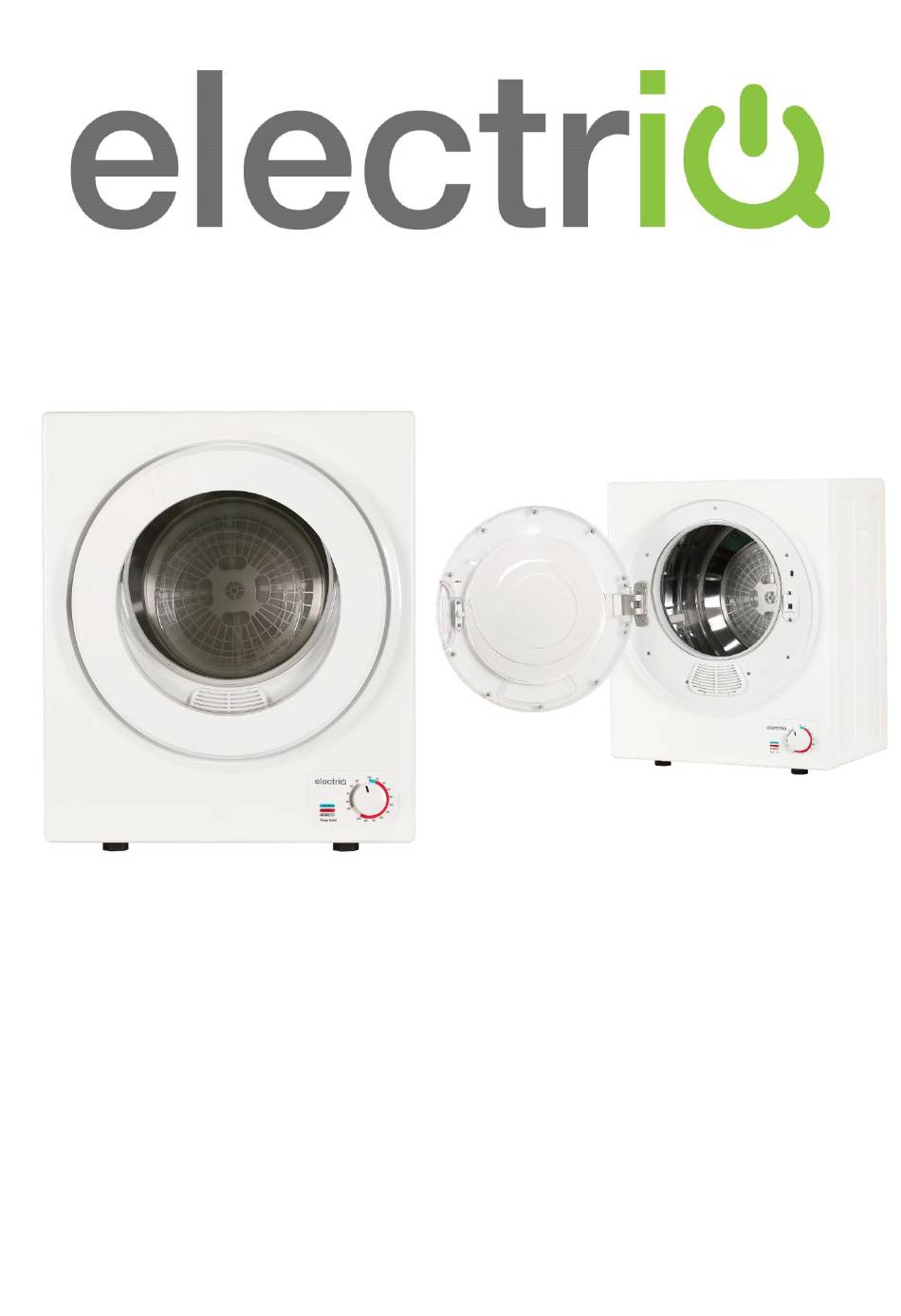

- Page 1 USER MANUAL 2.5KG TUMBLE DRYER eiQMTD2W eiQMTD2B Thank you for choosing electriQ Please read this user manual before using this condenser tumble dryer and keep it safe for future reference...
-
Page 3: Table Of Contents
CONTENTS SAFETY PRODUCT OVERVIEW INSTALLATION BEFORE EACH CYCLE DRYING TIME REFERENCE BEFORE EACH CYCLE OPERATION AFTER DRYING CLEANING THE FILTER TROUBLESHOOTING TECHNICAL SPECIFICATION SUPPORT... -
Page 4: Safety
SAFETY INSTRUCTIONS • Keep these instructions for use with the appliance. If the appliance should be sold or passed on to others, make sure that the instructions are passed on with it. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for... - Page 5 • The rear of the dryer will get quite hot during use. Position the dryer so that the back is not accessible while in operation, but ensure that the sides have space available to allow adequate airflow • The mains cable and plug assembly must only be replaced with a genuine part by the manufacturer or his service agents in order to avoid a hazard.
-
Page 6: Product Overview
• It could be possible for a child or pet to gain access to the tumble dryer through the door. Therefore, please check the drum before loading or starting the appliance. • DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket. -
Page 7: Installation
INSTALLATION • The dryer must be installed in a clean dry place. Air must be able to circulate freely around the appliance. • The dryer should be placed on a firm level surface to avoid unwanted noise and improve performance. •... - Page 8 1. Determine the dryers’ position on the chosen wall. Ensure that no piping or writing is behind the wall. A minimum of 50 mm is needed between the top of the dryer and the ceiling for ease of installation. 2. Mark two holes onto the chosen wall 450mm apart. 3.
-
Page 9: Before Each Cycle
DRYING TIME REFERENCE TABLE Drying times can be affected by many factors such as material, heaviness of load, and full the dryer is etc. The below is a guide only. DRYING CAPCIY DRYING TIME Approx. 0.5kg Approx. 30 min Approx. 1.0kg Approx. -
Page 10: Operation
CONTROL DIAL OPERATIONS DIAL Use the dial to set how long the dryer will be in operation for and which setting it will work at. When the drying function has finished, the dial will return to the off position. COOL (20) This function is used to cool down the drying. -
Page 11: After Drying
AFTER DRYING Turn the power off Clean the filter Open the door and and unplug the remove the dry clothes appliance CLEANING THE DOOR FILTER Disconnect the power before cleaning. Do not operate the dryer without the filter. The filter in the bottom of the drum Exhaust Lint... -
Page 12: Troubleshooting
Clean the air inlet. Clothes are not dry Clean the lint filter. Clean moisture sensors. Use next higher drying programme. PRODUCT FICHE Brand electriQ Model eiQMTD2W eiQMTD2B Dryer type Air vented Rated capacity 2.5kg Energy efficiency class 1 Energy consumption 2 197 kWh... -
Page 13: Support
EXHAUST FILTER 1010900900023 AIR INTAKE FILTER 101090000001 EXHAUST HOSE ASSEMBLY 801010240001 electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk Unit J6, Lowfields Business Park Lowfields Way, Elland West Yorkshire, HX5 9DA Recycling facilities are now available for all customers at which you can deposit your old electrical products.
