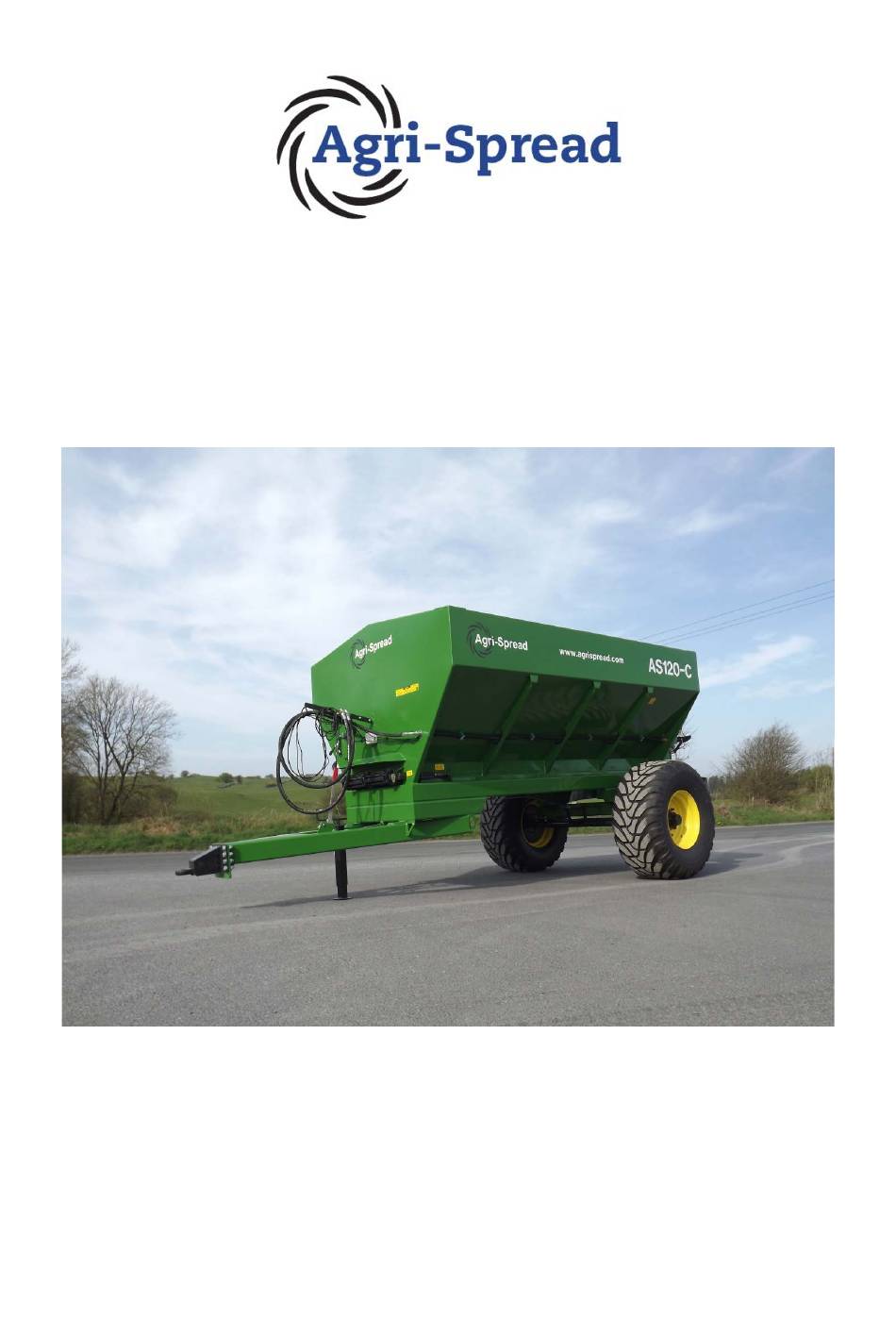

TRAILER SPREADER OPERATING MANUAL
AS55C, AS85C, AS100C & AS120C Chain Model
TRAILED FERTILISER AND LIME SPREADERS
Original Instructions
©Copyright Agrispread May 2013
730 Chain Spreader

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Chain AS55C and is the answer not in the manual?

Questions and answers

Richard thompson
March 4, 2025

How do you open that gear box on a as55 . It isbtuck in neutral and gears will not change

User image 67c70a2070085
0
1 comments:
Mr. Anderson
March 4, 2025

The manual does not provide specific instructions for opening the gearbox if it is stuck in neutral and the gears will not change. However, it does mention that neutral is between each gear and advises always replacing the retaining pin after changing gear. Ensure that the retaining pin is correctly positioned and check for any obstructions or mechanical issues. If the problem persists, consult a qualified technician.

This answer is automatically generated

0

Related Manuals for Agri-Spread Chain AS55C

Summary of Contents for Agri-Spread Chain AS55C

  • Page 1 TRAILER SPREADER OPERATING MANUAL AS55C, AS85C, AS100C & AS120C Chain Model TRAILED FERTILISER AND LIME SPREADERS Original Instructions ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 2 Manufacturing Plant and Head Office: Agri-Spread Running Gear Ltd Coolnaha Ballyhaunis Co. Mayo. Tel: 00353 (0)9496 31808 Fax: 00353 (0)9496 31525 Email: info@agrispread.com UK Office Agri-Spread Charlie Halliday Allendale Hexham Northumberland NE47 9PY Tel: (0044) (0)143 4683626 Fax: (0044) (0)143683340...

  • Page 3: Table Of Contents

    Setting Spinner Speeds and Rear Deflectors ..................4 Setting the Application Rate ......................5 Gear Box Parts and Service ........................ 7 Chain Adjustment ..........................12 Agri-spread Density Metres ......................14 Headland Control Valve ........................14 Adjusting Height of Hitch ......................... 15 Operating Handbrake ........................16 Bout Width Testing Form .........................

  • Page 5: Product Details

    Product Details Agrispread Model No: ………………………….. Serial Number….2013/ Spinner motor size: ………………………………………………………….…. Hydraulic valve No: …………………………………………………………… Wheel & tyre spec: ……………………………………………………..……… Recommended Pressure: …………………………. Max.: …………………….. Notes Figure 1: Location of Machine Serial Plate ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 6 WARNING Never exceed the spreader’s speed rating as this could lead to death or serious injury. Never carry out adjustments or maintenance on machinery while it is in operation, as this could lead to death or serious injury. Never attempt to clear a blockage while the spreader is in operation as this could lead to death or serious injury.

  • Page 7: Connecting Up Your Trailer

    General 1. Keep the machine as clean as possible. 2. Check wheel nuts daily before use. 3. Check tyre pressures before use (including jockey wheel on gear box). 4. Grease all gear box bearings weekly. IMPORTANT! Push gear selector right in to grease gear shift.

  • Page 8: Setting Spinner Speeds And Rear Deflectors

    Setting Spinner Speeds and Rear Deflectors Spinner Speed is the most important factor in achieving an accurate spread pattern. The spinner speed is adjusted by altering the control on the valve at the front of the machine (shown in Figure 1 below). Guideline spinner speeds for various different materials are given on page 21 Figure 2: Spinner Flow Control Valve When setting spinner speeds ensure the engine of the tractor is running at the same R.P.M.

  • Page 9: Setting The Application Rate

    Setting the Application Rate The application rate of material is controlled by the back door settings and gear selection. Refer to the rate charts in appendix 1 at the back of this manual for guideline settings of the door opening in millimetres and which gear should be selected. Once you have selected your rate from the charts, remove the retaining pins in the door handles and adjust the door so that the top of the door indicator lines up with your selected figure on the chart.
  • Page 10 To Stop Spreading Single Spool Tractors... To raise jockey wheel clear of main wheel return the hydraulic selector for the spinner to off through neutral to reverse flow until wheel is lifted and then return to neutral. Twin Spool Tractors ...

  • Page 11: Gear Box Parts And Service

    This end of plate DOWN for wider spread width, align This end of centre plate plate UP for more in Centre V Insert centre Vane Settings Gear Box Parts and Service REMOVE GEAR BOX. Remove inside main shaft bearing from gear box and slide away from box. Put heavy bar across back of box and pull off with pullers CAUTION Inner bearing must be removed or it will foul on key...
  • Page 12 Gear Selection Details Gear Change: To change gear, remove “R” Clip from gear selector. Complete gear change by moving gear selector to gear required. (See Figure 3 below) When selecting gear it is necessary to rotate the Jockey wheel manually in order to select required gear.
  • Page 13 Figure 3: Gearbox Settings ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 14 Gearbox Grease Details Grease details: Recommended Oil: 80 W 90, 1 part oil Recommended Grease: Lithium Complex Grease. 6 part Grease Gearbox should be checked for grease regularly. Gearbox does not need to be emptied out, just top up when necessary There are 8 grease nipples on the gear box these should be greased regularly ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 15 Gearbox Grease Details Grease details: Recommended Oil: 80 W 90, 1 part oil Recommended Grease: Lithium Complex Grease. 6 part Grease Gearbox should be checked for grease regularly. Gearbox does not need to be emptied out, just top up when necessary There are 8 grease nipples on the gear box these should be greased regularly ©Copyright Agrispread May 2013 730 Chain Spreader...

  • Page 16: Chain Adjustment

    Chain Adjustment Chain should be adjusted to spring length of 70 mm. If the chain is too tight it will cause chain to jam when spreading material that will build up in the sprockets, to loose will allow chain to jam under floor and not return, this can damage gear box and rear shaft. IMPORTANT! Check chain after each load for first day while chain is bedding in.
  • Page 17 To get correct spread pattern spreader must be pan tested. Kit descriptions are as follows 1) Agri-spread Tacho (already has magnet on spinner shaft) 2) Rev counter with magnet and sensor mount 3) Plug kit for trailers or trucks with demountable bins.

  • Page 18: Agri-Spread Density Metres

    Agri-spread Density Metres The Agri-spread density metres are a quick and easy way to find out the density of fertiliser even on al load by load basis. Up until now we have only been able to measure cubic density by very accurate scales which are expensive and easily broken. The Agri-spread density metre gives you a robust, light and simple alternative that can even be carried out in the cab.

  • Page 19: Adjusting Height Of Hitch

    Adjusting Height of Hitch It is possible to raise or lower the hitch as shown in figure below. To lower the hitch 1. Remove bolt and nuts using a size 30 spanner. 2. If the hitch requires to be lowered, lower the swivel hitch one hole. 3.

  • Page 20: Operating Handbrake

    Operating Handbrake In order to engage parking brake on Machine, pull the handbrake lever towards the rear of the machine. The Handbrake operates on a handbrake mechanism therefore the above action should be repeated continually until the brakes are engaged. To disengage brake, sharply pull the hand brake towards the hitch.
  • Page 21 ©Copyright Agrispread May 2013 730 Chain Spreader...

  • Page 22: Bout Width Testing Form

    Bout Width Testing Form Test Number ……………………………………………….……Date……………………………………… ………………………….. TestMaterial……………………………………………………..SpreaderIdentification...…… …………………..………… Spinner Size ………………………………..……………………Spinner Speed ………………………………….….………….. Bout Width ………………………………………………………Rate …………………...………………………………….... Number of Runs …………………………………………….. Direction Spread: Up & down / Round & Round Width/Measurement of Bins Bin Number Left Centre Right Bin 1 Bin 2 Bin 3...
  • Page 23 ©Copyright Agrispread May 2013 730 Chain Spreader...

  • Page 24: How To Use Rate Charts

    How to use Rate Charts: Step 1: Find the material density by using the Agri-spread density metre as described in the operator’s manual. Step 2: When you have the density of the material go to the appropriate density chart. The density is shown on each chart on the top left hand side of the chart.

  • Page 25: Recommended Spinner Speeds For Spreading

    Recommended Spinner Speeds For Spreading Spread Width With Standard Spinner Disks (See Figure A) Material 12 M Deflector 18 M Deflector Deflector /Cross Bar /Cross Bar /Cross Bar Position Position Position _________ _________ _________ _________ Lime 450-650 See Figure 1 / Figure 2 Fertiliser 600-650...
  • Page 26 Figure 1 (Spreading Lime Products ) Cross Bar Folded Up Center V Removed ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 27 Figure 2 & 3 (Granular Material ) Cross Bar Folded Cross Bar Folded Up & Center V In Some Lime Products Can Be Spread With Centre V In. ©Copyright Agrispread May 2013 730 Chain Spreader...
  • Page 28 Figure 4 Extend This End Of Plate A To Reduce The Amount Of Material Directly Behind The Spreader Cross Bar May Be Required To Be Folded Down To Spread Less Material Behind The Spreader, Increase The Angle Of The Centre Deflectors I.E.
  • Page 29 For Use with Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 0.75 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 30 For Use with Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 0.85 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 31 For Use with A Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 0.95 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 32 For Use with A Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 1.05 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 33 For Use with Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 1.15 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 34 For Use with Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 1.25 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 35 For Use with Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 1.35 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 36 Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Low Gear Gear Box...Low Gear Material Density Cu. Mtre.. 1.45 Figures in body of chart = mm of door opening Material Density Cu.
  • Page 37 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 38 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 39 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 40 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 41 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 42 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 43 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. M. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 44 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 45 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 46 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 47 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 48 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 49 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 50 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use ... O RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...Med. Gear Gear Box...Med. Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 51 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 52 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 53 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 54 For Use with AGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 55 FFor Use with AGRISPREAD Density Meter..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 56 For Use withAGRISPREAD Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
  • Page 57 AGRISPREAD For Use with Density Meter ..Accuracy of final settings operators responsibility based on use RATE CHART KG. PER HA. RATE CHART KG. PER HA. Gear Box...High Gear Gear Box...High Gear Material Density Cu. Mtre.. Figures in body of chart = mm of door opening Material Density Cu.
