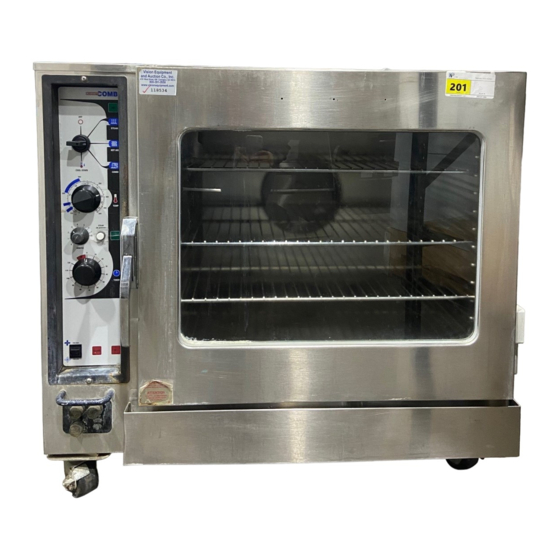

BC14E AND BC14G
COMBINATION OVEN STEAMER
SERVICE AND REPAIR MANUAL
BLODGETT COMBI
E

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYNEGRI BC14E and is the answer not in the manual?

Questions and answers

Summary of Contents for Blodgett Combi SYNEGRI BC14E

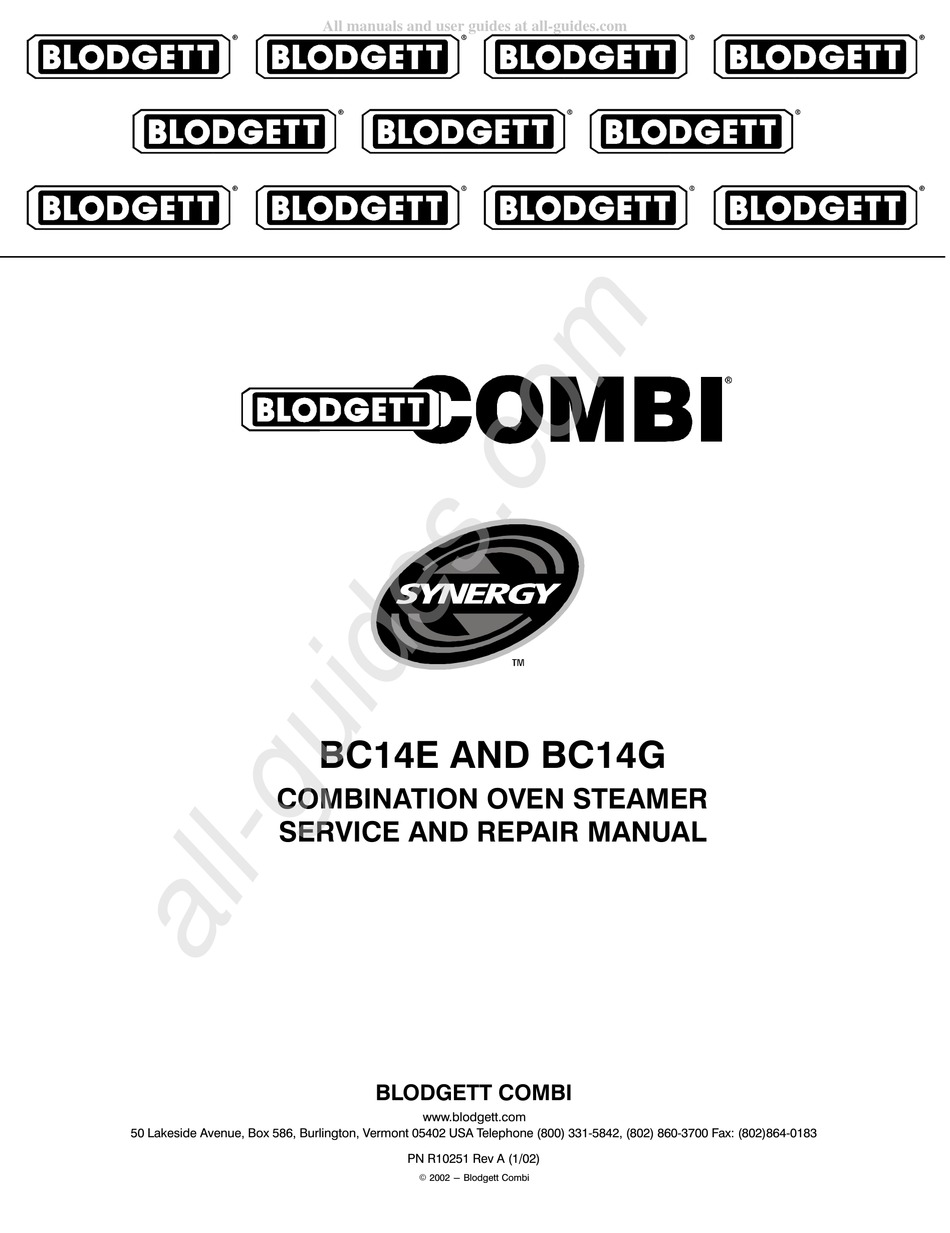

  • Page 1 All manuals and user guides at all-guides.com BC14E AND BC14G COMBINATION OVEN STEAMER SERVICE AND REPAIR MANUAL BLODGETT COMBI...
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com TABLE OF CONTENTS Section 2 BC14G Installation Section 3 Operation and Maintenance Section 4 BC14G Troubleshooting Section 5 BC14G Schematics Section 6 Pre Site Visit Questions Section 7 Component Identification Section 8 BC14E Schematics...
  • Page 3 All manuals and user guides at all-guides.com TABLE OF CONTENTS Section 9 BC14E Troubleshooting Section 10 BC14E Installation...
  • Page 4: Bc14G Installation

    All manuals and user guides at all-guides.com CHAPTER 1 BC14G INSTALLATION...
  • Page 5 All manuals and user guides at all-guides.com BC14G INSTALLATION SPECIFICATIONS/INFORMATION MAXIMUM SHELF LOADING TABLE 1 PLUMBING SPECIFICATIONS - BC14G/AA Water Drainage TABLE 2 PLUMBING SPECIFICATIONS - BC14GDS/AA Water Drainage NOTE: For steam requirements see page 1-5 STEAM CONNECTION for the BC14GDS. TABLE 3...
  • Page 6 All manuals and user guides at all-guides.com INSTALLATION RATINGS - GAS APPLIANCES - BC14G/AA Gas Type Gas Input Voltage Phase Amps Motor TABLE 4 RATINGS - GAS APPLIANCES - BC14GDS/AA Gas Type Gas Input Voltage Phase Amps Motor TABLE 5 GAS PRESSURE - BC14G/AA and BC14GDS/AA Orifice Size at Sea Level Manifold Pressure...
  • Page 7 All manuals and user guides at all-guides.com BC14G OVEN LOCATION Left Side Heat Shield MINIMUM REQUIRED NOTE: On gas models, routine servicing can usu CLEARANCES Oven ally be accomplished within the limited M d l Model movement provided by the gas hose re Right Side Left Side Back...
  • Page 8 NOTE: An optional gas plumbing manifold may be purchased from Blodgett Combi. Order part number R9570. An optional drain plumbing manifold may be purchased from Blodgett Combi. Order part number R9381 for single or top ovens. Rear View FIGURE 1...
  • Page 9 All manuals and user guides at all-guides.com BC14G PLUMBING CONNECTIONS WATER CONNECTION DRAIN CONNECTION WARNING!! Operating the appliance without the water restrictor installed will invalidate the war ranty. The use of poor quality water will in validate the warranty. FIGURE 3 STEAM CONNECTION FOR BC14GDS Option 1 Option 2...
  • Page 10 All manuals and user guides at all-guides.com INSTALLATION DOOR ADJUSTMENTS NOTE: When making door adjustments, always adjust the hinge side first. Adjusting the Catch Adjusting the Hinges NOTE: If you need to adjust the hinges, always ad just the top hinge first. NOTE: The hinges on the door have no adjustment, you can only adjust the hinge on the oven.
  • Page 11 All manuals and user guides at all-guides.com BC14G FINE TUNING A DOOR GASKET FIGURE 5 Checking Door Adjustment NOTE: When the door is adjusted properly, you should be able to close a dollar bill be tween the door and gasket on all four sides of the door and still be able to pull it out.
  • Page 12: Operation And Maintenance

    All manuals and user guides at all-guides.com CHAPTER 2 OPERATION AND MAINTENANCE...
  • Page 13 All manuals and user guides at all-guides.com BC14G AND BC14E STANDARD CONTROLS CONTROLS IDENTIFICATION MODE SELECTOR SWITCH TEMPERATURE DIAL STEAM INJECTION TIMER STEAM ON DEMAND SWITCH TIMER DIAL FAN SPEED SWITCH FLUSH/DRAIN SWITCH FILL LAMP TEMP LIGHT STEAM LAMP ON LIGHT FIGURE 1...
  • Page 14 All manuals and user guides at all-guides.com OPERATION AND MAINTENANCE OPTIONAL MEAT PROBE CONTROLS IDENTIFICATION MEAT PROBE SWITCH MEAT PROBE CONTROL MEAT PROBE CONNECTOR NOTE: For sanitation purposes it is recom STAY ON mended that the meat probe remain plugged into the front panel receptacle at all times.
  • Page 15 All manuals and user guides at all-guides.com BC14G AND BC14E DELIMING WARNING!! Deliming solutions are hazardous and can cause burns to the skin and eyes. Wear protective clothing and eyewear when decalcifying your appliance. WARNING!! Problems caused by insufficient monthly deliming are not covered by the warranty.
  • Page 16: Bc14G Troubleshooting

    All manuals and user guides at all-guides.com CHAPTER 3 BC14G TROUBLESHOOTING...
  • Page 17 All manuals and user guides at all-guides.com BC14G BC14G TROUBLESHOOTING GUIDE NOTE: Always troubleshoot a Synergy oven in the following sequence: COOL DOWN, HOT AIR, STEAM, and then COMBI. Reference the text that follows with the appropriate troubleshooting schematic to help you troubleshoot each mode.
  • Page 18 All manuals and user guides at all-guides.com TROUBLESHOOTING NO FLUSH / DRAIN MODE / MANUAL OR AUTO NOTE: When the P11 flush diable snap disk is closed the steam generator is below 160_F (71_C) and the oven is in the OFF position. NO FILLING OF STEAM GENERATOR Auto Flush/Drain Manual Flush/Drain...
  • Page 19 All manuals and user guides at all-guides.com BC14G BC14G INCOMING POWER CHECK FIGURE 1...
  • Page 20 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14G HOT AIR FLOW CHART FIGURE 2...
  • Page 21 All manuals and user guides at all-guides.com BC14G BC14G STEAM FLOW CHART/WATER FILL FIGURE 3...
  • Page 22 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14G COMBI FLOW CHART FIGURE 4...
  • Page 23 All manuals and user guides at all-guides.com BC14G BC14G ON DEMAND STEAM FLOW CHART FIGURE 5...
  • Page 24 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14G FLUSH FLOW CHART FIGURE 6...
  • Page 25 All manuals and user guides at all-guides.com BC14G BC14G WATER FILL/MEAT PROBE/CONDENSATE/COOLING FAN FIGURE 7...
  • Page 26 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14G DRAIN ASSEMBLY Î Î Î Î Î Î Î Î Î Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Î Î Î Ï Ï Ï Î Î Î Ï...
  • Page 27 All manuals and user guides at all-guides.com BC14G BC14G FLUE ASSEMBLY Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï FIGURE 9...
  • Page 28 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14G TIMER SETTINGS NOTE: The L & R there are two timer adjustments per timer. FIGURE 10 T2 Steam duty cycle In combi mode. T4 Flush timer T5 Hot air duty cycle. In steam mode T3 One shot steam NOTE: Set by timer on front panel.
  • Page 29: Bc14G Schematics

    All manuals and user guides at all-guides.com CHAPTER 4 BC14G SCHEMATICS...
  • Page 30 All manuals and user guides at all-guides.com BC14G BC14G FIGURE 1...
  • Page 31 All manuals and user guides at all-guides.com SCHEMATICS BC14G FOR CE FIGURE 1...
  • Page 32 All manuals and user guides at all-guides.com BC14G This page intentionally left blank.
  • Page 33: Pre Site Visit Questions

    All manuals and user guides at all-guides.com CHAPTER 5 PRE SITE VISIT QUESTIONS...
  • Page 34 All manuals and user guides at all-guides.com BC14G AND BC14E TROUBLESHOOTING SEQUENCE HOT AIR MODE NO operation with the mode switch in the HOT AIR mode. (Gas Ovens Only) COOL DOWN MODE NO operation with the mode switch in the COOL DOWN mode.
  • Page 35 All manuals and user guides at all-guides.com COMPONENT IDENTIFICATION STEAM MODE COMBI MODE NO operation with the mode switch in the NO operation with the mode switch in the COMBI STEAM mode. mode. NOTE: If you have an operational problem in the COMBI mode and all other modes work, the problem most likely is either the Solid State Timer T2 or the mode selector switch.
  • Page 36 All manuals and user guides at all-guides.com BC14G AND BC14E This page intentionally left blank.
  • Page 37: Component Identification

    All manuals and user guides at all-guides.com CHAPTER 6 COMPONENT IDENTIFICATION...
  • Page 38 All manuals and user guides at all-guides.com BC14G AND BC14E COMPONENT IDENTIFICATION NOTE: Refer to the figures on pages 6-5 and 6-6 for component locations. CH 136 Hot Water Fill (solenoid) no designation (ELECTRIC OVENS) - Elements (Hot Air) (ELECTRIC OVENS) - Elements (Steam) Flush/Fill (solenoid) no designation (GAS OVENS) - F1 &...
  • Page 39 All manuals and user guides at all-guides.com COMPONENT IDENTIFICATION Resister Meat Probe no designation Meat Probe Controller optional (ELECTRIC OVENS) - Noise Filter (ELECTRIC OVENS) - R200 Pump (GAS OVENS) - PV , PV1 , PV2 (ELECTRIC OVENS) R201 (GAS OVENS) - R202 (ELECTRIC OVENS) - P12 (ELECTRIC OVENS) - P13 (GAS OVENS) - Quench...
  • Page 40 All manuals and user guides at all-guides.com BC14G AND BC14E (ELECTRIC OVENS) - R202 (GAS OVENS) - R205 (ELECTRIC OVENS) - R205 (GAS OVENS) - R204 R206 (ELECTRIC OVENS) - R204...
  • Page 41 All manuals and user guides at all-guides.com COMPONENT IDENTIFICATION (ELECTRIC OVENS) - Transformer (GAS OVENS) - T5 Speed Control (GAS OVENS) - Steam IGN1 (GAS OVENS) - XFMR1 (GAS OVENS) - XFMR2 XSFMR (GAS OVENS) - Transformer...
  • Page 42 All manuals and user guides at all-guides.com BC14G AND BC14E COMPONENT LOCATION DIAGRAMS REAR VIEW BC14G COMPONENT LOCATIONS FIGURE 1...
  • Page 43 All manuals and user guides at all-guides.com COMPONENT IDENTIFICATION On Bottom Tray REAR VIEW 21 33 34 BC14E COMPONENT LOCATIONS FIGURE 2...
  • Page 44: Bc14E Schematics

    All manuals and user guides at all-guides.com CHAPTER 7 BC14E SCHEMATICS...
  • Page 45 All manuals and user guides at all-guides.com BC14E BC14E FIGURE 1...
  • Page 46 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14E FOR CE FIGURE 1...
  • Page 47 All manuals and user guides at all-guides.com CHAPTER 8 BC14E TROUBLESHOOTING...
  • Page 48 All manuals and user guides at all-guides.com BC14E BC14E TROUBLESHOOTING GUIDE NOTE: Always troubleshoot a Synergy oven in the following sequence: COOL DOWN, HOT AIR, STEAM, and then COMBI. Reference the text that follows with the appropriate schematic to help troubleshoot each mode. NO OPERATION WITH THE MODE SWITCH IN COOL DOWN Single phase ovens...
  • Page 49 All manuals and user guides at all-guides.com TROUBLESHOOTING NO FLUSH / DRAIN MODE / MANUAL OR AUTO NOTE: When the P11 flush diable snap disk is closed the steam generator is below 160_F (71_C) and the oven is in the OFF position. NO FILLING OF STEAM GENERATOR Auto Flush/Drain Manual Flush/Drain...
  • Page 50 All manuals and user guides at all-guides.com BC14E BC14E SAFETY LIMITS FLOW CHART FIGURE 1...
  • Page 51 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14E HOT AIR FLOW CHART FIGURE 2...
  • Page 52 All manuals and user guides at all-guides.com BC14E BC14E STEAM FLOW CHART FIGURE 3...
  • Page 53 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14E COMBI FLOW CHART FIGURE 4...
  • Page 54 All manuals and user guides at all-guides.com BC14E BC14E ON DEMAND FLOW CHART FIGURE 5...
  • Page 55 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14E FLUSH FLOW CHART FIGURE 6...
  • Page 56 All manuals and user guides at all-guides.com BC14E BC14E WATER FILL/MEAT PROBE FIGURE 7...
  • Page 57 All manuals and user guides at all-guides.com TROUBLESHOOTING BC14E DRAIN ASSEMBLY Î Î Î Î Î Î Î Î Î Î Î Î Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Ï Î Î Ï Ï Ï Î...
  • Page 58 All manuals and user guides at all-guides.com BC14E BC14E TIMER SETTINGS NOTE: The L & R there are two timer adjustments per timer. FIGURE 9 T2 Steam duty cycle In combi mode. T3 One shot steam NOTE: Set by timer on front panel. T4 Flush timer.
  • Page 59 All manuals and user guides at all-guides.com TROUBLESHOOTING This page intentionally left blank.
  • Page 60 All manuals and user guides at all-guides.com CHAPTER 9 BC14E INSTALLATION...
  • Page 61 All manuals and user guides at all-guides.com BC14E INSTALLATION SPECIFICATIONS NOTE: Electrical and water connections must be performed by a qualified installer only. MAXIMUM SHELF LOADING TABLE 1 PLUMBING SPECIFICATIONS - BC14E/AA Water Drainage TABLE 2 PLUMBING SPECIFICATIONS - BC14EDS/AA Water Drainage NOTE: For steam requirements see page 9-4 STEAM CONNECTION for the BC14EDS...
  • Page 62 All manuals and user guides at all-guides.com INSTALLATION RATINGS - ELECTRIC APPLIANCES - BC14E/AA and BC14EDS/AA Max Load (amps) Voltage Phase Motor TABLE 4 OVEN LOCATION AND LEVELING OVEN LOCATION OVEN LEVELING This oven should be set up in place. Left Side Heat Shield MINIMUM REQUIRED Oven...
  • Page 63 All manuals and user guides at all-guides.com BC14E STACKING WARNING!! Stacking should be performed by quali fied installation personnel only. The ap pliances are heavy. Take care to use prop er tools and techniques when lifting and stacking appliances. BC14G Shown FIGURE 2...
  • Page 64 All manuals and user guides at all-guides.com INSTALLATION PLUMBING CONNECTIONS WATER CONNECTION DRAIN CONNECTION WARNING!! Operating the appliance without the water regulator installed will invalidate your war ranty. Use the drain vent assembly and a 2" (50.8mm) pipe for drain connection. WARNING!! The use of poor quality water will invali date your warranty.
  • Page 65 All manuals and user guides at all-guides.com BC14E DOOR ADJUSTMENTS NOTE: When making door adjustments, always adjust the hinge side first. Adjusting the Catch Adjusting the Hinges NOTE: If you need to adjust the hinges, always ad just the top hinge first. NOTE: The hinges on the door have no adjustment, you can only adjust the hinge on the oven.
  • Page 66 All manuals and user guides at all-guides.com INSTALLATION FINE TUNING A DOOR GASKET FIGURE 6 Checking Door Adjustment NOTE: When the door is adjusted properly, you should be able to close a dollar bill be tween the door and gasket on all four sides of the door and still be able to pull it out.
