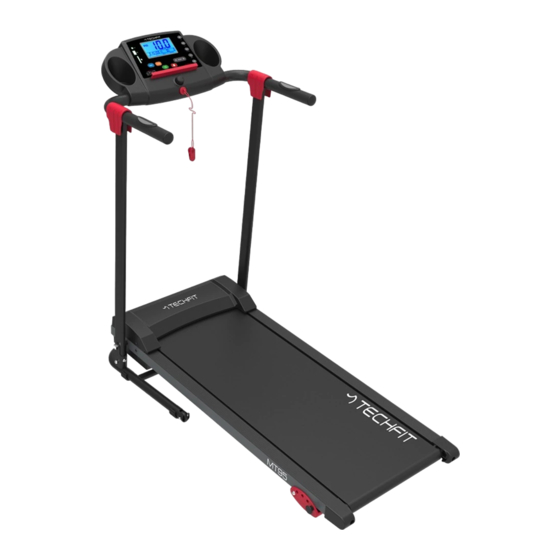

MOTORIZED TREADMILL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
MT95
scanează codul QR pentru
a descărca manualul în
limba română
https://justfit.ro/manuale/MT95N.pdf

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TECHFIT MT95

Summary of Contents for TECHFIT MT95

  • Page 1 MOTORIZED TREADMILL MT95 scanează codul QR pentru a descărca manualul în limba română https://justfit.ro/manuale/MT95N.pdf IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 3 Always hold on to the handrails while using the treadmill.  Always make sure the spring knob and round knob are in place when folding and  moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the ...

  • Page 4: Hardware List & Assembly Component

    HARDWARE LIST & ASSEMBLY COMPONENT Hexagon Socket Oval Spring Washer Hexagon Socket Oval Head Bolt M8x35 2 PCS Head Bolt M8x16 2 PCS 2 PCS Rotary Knob Allen Wrench Screw M6x16 1 PC 2 PCS 1 PC Safety Tether Key Left and Right End Cap Silicon oil 1 PC...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 It is recommended to have a second person assist with this step. Lift both Right and Left Handle- bar Support Tubes up. One person should hold the both Right and Left Handlebar Support Tubes in place while the other person tightens the bolts. Lift both Right and Left Handlebar Support Tubes up and align bolt holes.
  • Page 6 Assemble the decorative cover(S10) on each side handlebar. Use rotary knob to keep the computer fixed. IMPORTANT: While sliding the Handlebar Bracket onto the Right and Left Handlebar Support Tubes make sure the cables are installed inside the Right Handlebar Support Tube and pay attention not to pinch the cables.

  • Page 7: Operating The Computer

    OPERATING THE COMPUTER NOTE: Always stand on the side rails when you start the treadmill, never start the treadmill while you are standing on the running belt. QUICK START: Press the START button on the computer to start exercise, the LCD window will countdown 5 seconds with the LCD showing "5-4-3-2-1"...

  • Page 8: Display Functions

    PROG (PROGRAM): Press the PROG button to select the pre-set training program (P1 - P16) mode before training. MODE: Press the MODE button to select different functions (time, distance, or calories) for setting exercise goals in manual program mode before training. SPEED ＋...
  • Page 9 CALORIES: Displays the total calories burned during your workout. Press the START button on the computer to begin exercising, the LCD window will countdown 3 seconds with the LCD showing "3-2-1" before the running belt starts moving. The running belt starts moving with an initial speed of 1.0 KPH.

  • Page 10: Emergency Stop

    LUBRICATION Lubricating your treadmill running belt will ensure superior performance and extend its life expectan- cy. When you receive your treadmill please apply some lubricant into each oil pipe. After the first 25 hours of use ( or 2-3 months ) apply some lubricant and repeat for every following 50 hours of use ( or 5-8 months).
  • Page 11 4 LEVELS MANUAL INCLINE Incline Adjuster Lock Pin There are 4 incline angles that the Incline Adjuster can be set to. Place one hand on the rear end of the main frame, then lift the rear end of the main frame up and use the other hand to remove the Lock Pin.

  • Page 12: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 8-10 KPH. Use the Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 13: Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. WARNING: Always check the wear and tear components like spring knob and running belt to prevent injury. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.

  • Page 14: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.

  • Page 15: Inner Thigh Stretch

    QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.

  • Page 16: Preventative Maintenance

    PREVENTATIVE MA I NTENANCE BELT/DECK Your treadmill uses a very high-efficient low-friction deck. Performance is maximized when the deck is kept as clean as possible. Use a soft, cloth, or paper towel, wipe the edge of the belt and the area between the belt edge and the deck.

  • Page 17: Belt Adjustments

    Use the Lubricant to lubricate the deck beneath the belt. If you can reach under the belt approximately 15cm on each side, use the following procedure: Unplug the electrical cord. Lift up on the belt and reach under with the tube of lubricant. Squirt most of the lubricant on the deck surface.
  • Page 18 adjustment. Make tracking adjustments on the left side bolt. Set belt speed at kmph. Be aware that a small adjustment can make a dramatic difference which may not be apparent right away. If the belt is too close to the left side, then turn the bolt only a 1/4 turn to the right (clockwise) and wait a few minutes for the belt to adjust itself.
  • Page 19 Scan the QR code to download the KINOMAP or ZWIFT APP, and check the instruction which with APP connection steps . In case the QR code is invalid , please download the KINOMAP or ZWIFT APP from APPStore or Google Playstore etc . Check if your mobile device confirms the requirements for the application.The requirements of each application are shown in the Google PlayStore or AppStore.
