Summary of Contents for Roma Heating CT1000

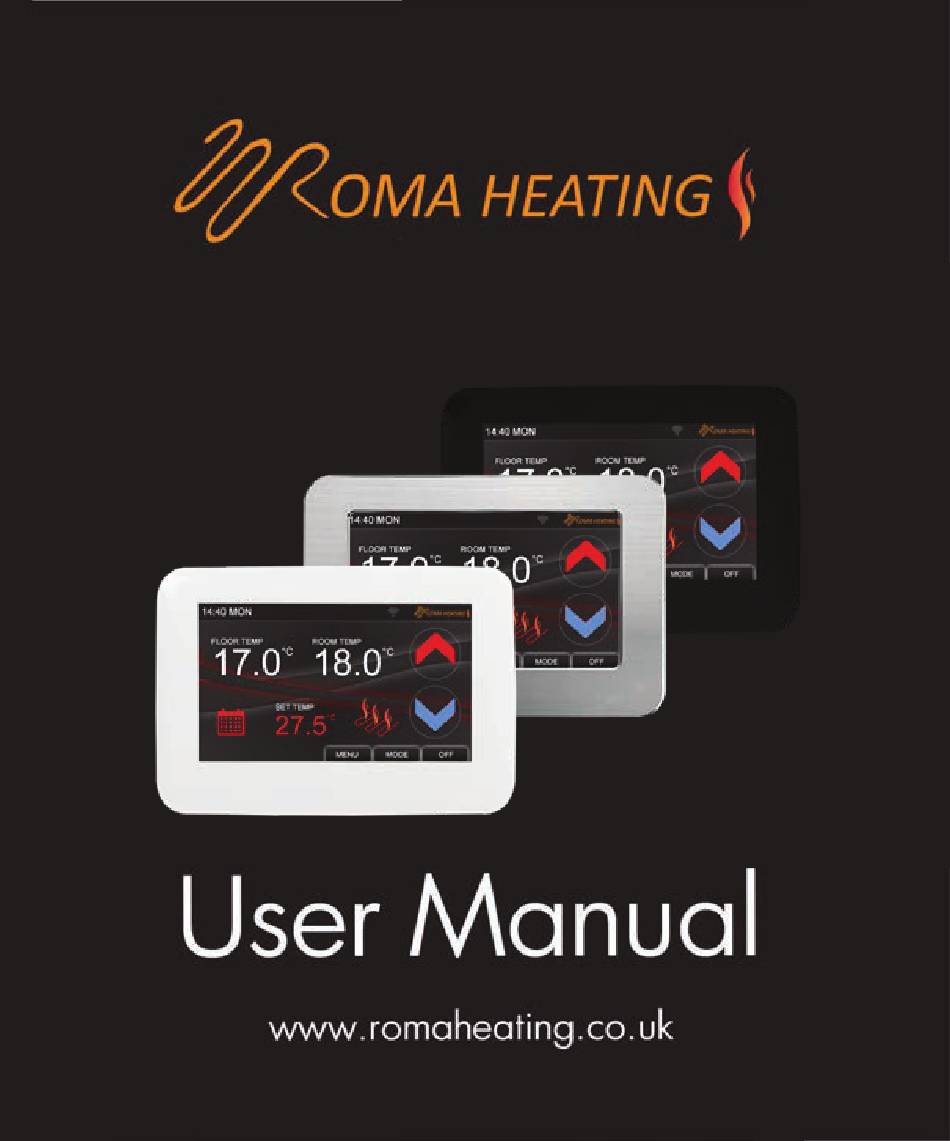

- Page 1 WiFi Colour Touch Screen Thermostat V0122...
- Page 2 Roma WiFi Colour Touch Screen Thermostat • The colour touch screen thermostat is designed for electric floor heating or water heating systems. Equipped with the latest 4.3 inch colour touch LCD display, the thermostat can be easily operated and understood. The thermostat is fully programmable to automate your heating, can be used in a simple manual mode or controlled remotely on a phone or tablet using the Smart Life APP.
- Page 3 Thermostat Features • Advanced 4.3 inch Colour Touch Screen Operation • Adjustable Screen Brightness For On And Sleep Modes • Electric Heating System ( Max. 16A) or Water Heating System Max.3A) • WiFi control with Smart Life APP. • Adjustable Comfort Mode, Economy Mode, Party Mode, Holiday Mode and Automatic Programme Mode Control •...
- Page 4 Screen and Display Home Screen 13 14 15 Menu Screen 16 17 18 19 20 Mode Screen 21 22 23 24 25...
- Page 5 Home Screen ON/OFF Use to turn thermostat on/off Mode Button Use to select working mode Menu Button Use to select menu settings Down Button Down button Up Button Up button Wi-Fi Wi-Fi connect button Unregulated Temp Shows 2nd temp not being regulated Regulated Temp Shows primary temp being regulated Set Temp...
- Page 6 My Schedule Setting The schedule can be set up directly on the thermostat using the touch screen, (see below) or remotely using WI-FI and the Smartlife APP. Please follow on screen instructions when using the APP. Press Menu button, then press You can then review your automated schedule.
- Page 7 Edit Date and Time Press Menu button, then press you can now edit date & time with buttons. Once set simply press" APPLY" to save the changes. Pre-set Mode Temperatures Press Menu button, then press You can now pre-set the 4 different mode temperatures.
- Page 8 Settings Pages. Depending upon how you use your thermostat and the type of heating system installed you may need to adjust the internal default settings on this thermostat. To access these settings, 1: Make sure the unit is in the ON position. 2: Press OFF in bottom right hand corner.
- Page 9 Settings Page 2, NTC Select. This setting alows the user to select between air, floor or a combination of air & floor sensors. I = Internal Air Sensor Temp. E = External Floor Probe Temp. I&E = The thermostat will only regualte air temp but will show all 3 temperatures.
- Page 10 Settings Page 5, Relay. Relay Out Delay. The time in seconds delay between switching the heating on or off once the temp reaches or falls below the set temp. Relay Out. This changes the switching of the relay between normal & inverted. Electric heating should be run on Normal.
- Page 11 Wiring Diagrams Installation Using a medium size flat screwdriver carefully insert into slots at bottom of thermostat and twist gently to open, (See fig 1). Connect the heating, power supply and floor probe cables to the correct terminals tightly, (See Wiring / Fig 2). Once wired fix back plate to the wall securely through screw locations (See fig 3).
- Page 12 Wi-Fi Connection Please note we are always looking to improve this thermostat and APP. To do this we make regular updates to the APP and thermostats firmware. These instructions are a guide. For the very latest instructions please always refer to our website and check for updated versions.
- Page 13 Select your Wi-Fi network and enter the Password for this selected network. Note: Your phone should also be connected to the same Wi-Fi network and the router must be set to transmit on 2.4Ghz, (NOT 5Ghz). Press Next. 5A: To get the thermostat ready to pair to device/APP, press the Wi-Fi symbol “...
- Page 14 6A: On the APP it may ask to reset the thermostat. This is not required so simply click “Next”. 6B: The APP will now show two blink options. Select “Blink Quickly”. 7A: The APP will now try to connect. Once the device is found Click “Add”.
- Page 15 Important. You can connect additional phones to the thermostat but you must send each phone an invite from the primary phone (1st phone connected). This is done within the APP. If you connect a 2nd phone directly to the thermostat it will become the primary phone and disconnect the previous phone.
- Page 16 V0122...
