EL.MO. Spa TACORA Series User Manual

User manUal
TACÓRA seRies
Control panels and signalling equipment
1 DeCLARATiON OF CONFORMiTY
AND PeRFORMANCe
TA1002: No. 0051 – CPR – 0402
TA1004: No. 0051 – CPR – 0403
13
TA2000: No. 0051 – CPR – 0401
TA4000: No. 0051 – CPR – 0515
17
Standards: EN 54-2:1997/A1:2006
EN 54-4:1997/A1:2002/A2:2006
2 GeNeRALs
TACÓRA series control and signalling equipment can man-
age a fire detection system devices, monitoring up to 45
different zones.
Model
MCP (call points)
Conventional zones
Analogue-addressable
loops
Total zones
Control panels are compatible with EXTING extinguishing
module and MDGSME SMS sender module.
3 ACCess LeVeLs
Panels functions can be accessed according to three differ-
ent access levels:
• level 1 (public) – no password needed
• level 2 (user) – dedicated key required
TA1002 TA1004 TA2000 TA4000
1 1 1
2 4 12
- - 1 (zones
13-44)
3 5 45
• level 3 (maintenance/programming) – accessible for au-
thorised personnel only
Level 1 grants access to all functions available to everyone,
such as those for panel general monitoring.
At level 2, setup menu will be displayed.
To go back to level 1, turn and remove the key.
If a control panel at level 2 receives no inputs from the front
keypad for 15 minutes, the LCD backlight will start blinking
and the last row of the display will show "Panel on level 2"
message.
Pressing any keys makes the message disappear for 15 min-
utes, but the display will keep blinking until the panel goes
back to level 1.

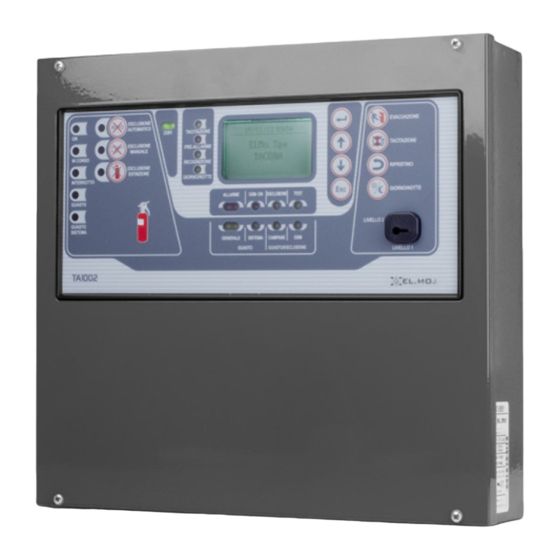

4 FRONT PANeL
The control panels can be managed by the front keypad or
by a connected TAREPEATER keypad.
All status and functions of the control panels are shown and
1
managed via panel LCD and the coloured LED indicators.
4 The available control buttons provide for easy configuration
and control operations.
2 (zones
5-44)
The display backlight colour will change according to panel
status.
45
GREEN - standard working mode
1 1 1
