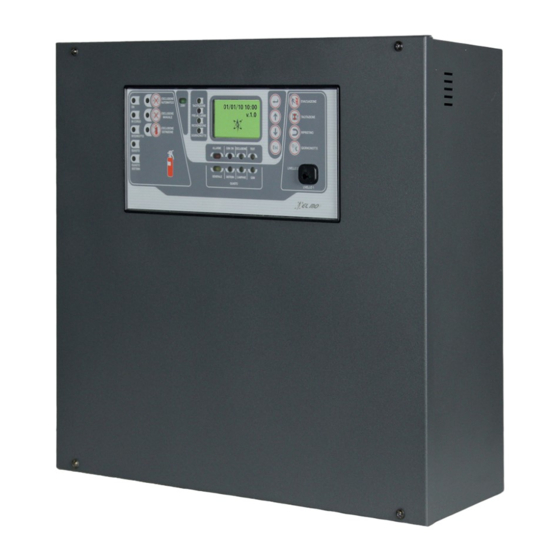

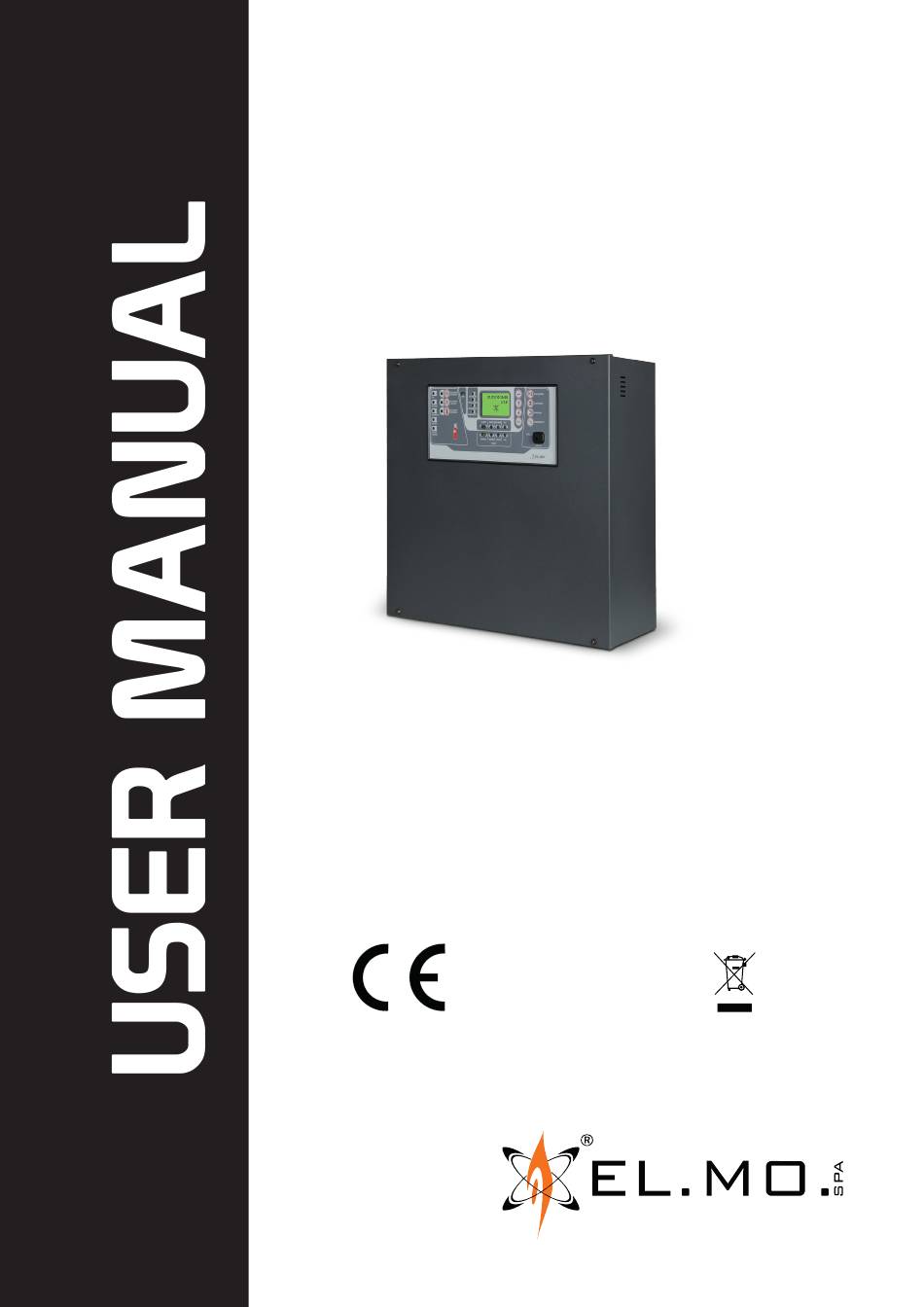

- Page 1 TA4000 Fire detection and fire alarm control panel 090020950 Declaration of Performance nº 0051 – CPR – 0515 Standards IT08020000001624 EN54-2:1997/A1:2006 EN54-4:1997/A2:2006...
-
Page 2: For The Installer
(explosion and fire). CE DECLARATION OF CONFORMITY The TA4000 control unit complies with current European EMC and LVD directives. You can log into the elmospa.com website to read the full Declaration of Performance: registration is quick and easy. -
Page 3: User Interface
1. USER INTERFACE TA4000 controls the devices of a fire detection and fire alarm system, monitoring up to 45 different zones: 4 conventional ones, 1 manual call point (MCP) zone and 40 connected to up to 2 optional loop modules. - Page 4 TA4000 - USER MANUAL - 090020950 LED name Colour Steady glow Blinking FIRE Ongoing alarm events with silenced buzzer Ongoing alarm events GSM ON Telephone dialler ON Waiting for confirmation DISABLE Yellow Some elements are disabled TEST Yellow Some system elements are being tested...
-
Page 5: Access Levels
090020950 - USER MANUAL - TA4000 2. ACCESS LEVELS The control unit functions are assigned to three different access levels: • Level 1 (public) – no password needed; • Level 2 (user) – accessed using the dedicated key; • Level 3 (maintenance/programming) – only accessibile to authorized personnel. - Page 6 TA4000 - USER MANUAL - 090020950 5.1.1 Zone LEVEL 2 MENU ► DISABLEMENTS ► ZONE A list of all conventional zones and of all analogue-addressable zones with at least one device is shown. • ENTER disables or enables the selected zone. Disabled zones are marked with a X on the right.
- Page 7 090020950 - USER MANUAL - TA4000 5.2 Events (events log) LEVEL 2 MENU ► EVENTS A screen with the data of the last recorded event appears. The log stores the last 2000 events. Event types are listed in the e (6) table.
- Page 8 TA4000 - USER MANUAL - 090020950 5.4.5 Display LEVEL 2 MENU ► TEST ► DISPLAY The display pixels light up, one column at a time, starting left. The LCD backlight cyclically changes colour once per second. 5.4.6 Led LEVEL 2 MENU ► TEST ► LED All front panel LEDs light up at once for around 2 seconds.
- Page 9 090020950 - USER MANUAL - TA4000 6. EVENTS Event..generated by ...can activate Loop Call Conventional Relay Loop Activates the Loop Input Control unit EXTING Point or zones and I/O output following global Module (automatic) module outputs module MCP zone Z001–Z012...
- Page 10 TA4000 - USER MANUAL - 090020950 7. ISTRUZIONI PER L’OPERATORE If the control unit is in • Press Silence to turn the buzzer off. Alarm If you want to turn off the alarms: • Insert and turn the key to access level 2.
- Page 11 090020950 - USER MANUAL - TA4000 8. INDICE 1. INTERFACCIA UTENTE............... . . 3 2.
- Page 12 The information and product features herein are not binding and may be changed without prior notice. EL.MO. SpA Via Pontarola, 70 - 35011 Campodarsego (PD) - Italy Tel. +390499203333 - Fax +390499200306 - Help Desk +390499200426 - www.elmospa.com - international@elmospa.com...
