Basepoint Business Centre: Rivermead Drive,Westlea, Swindon SN5 7EX Phone: 0800-118-2476
J.P. Coenstraat 7, The Bridge, The Hague, 2595 WP, Netherlands Phone: 0800-567-8990

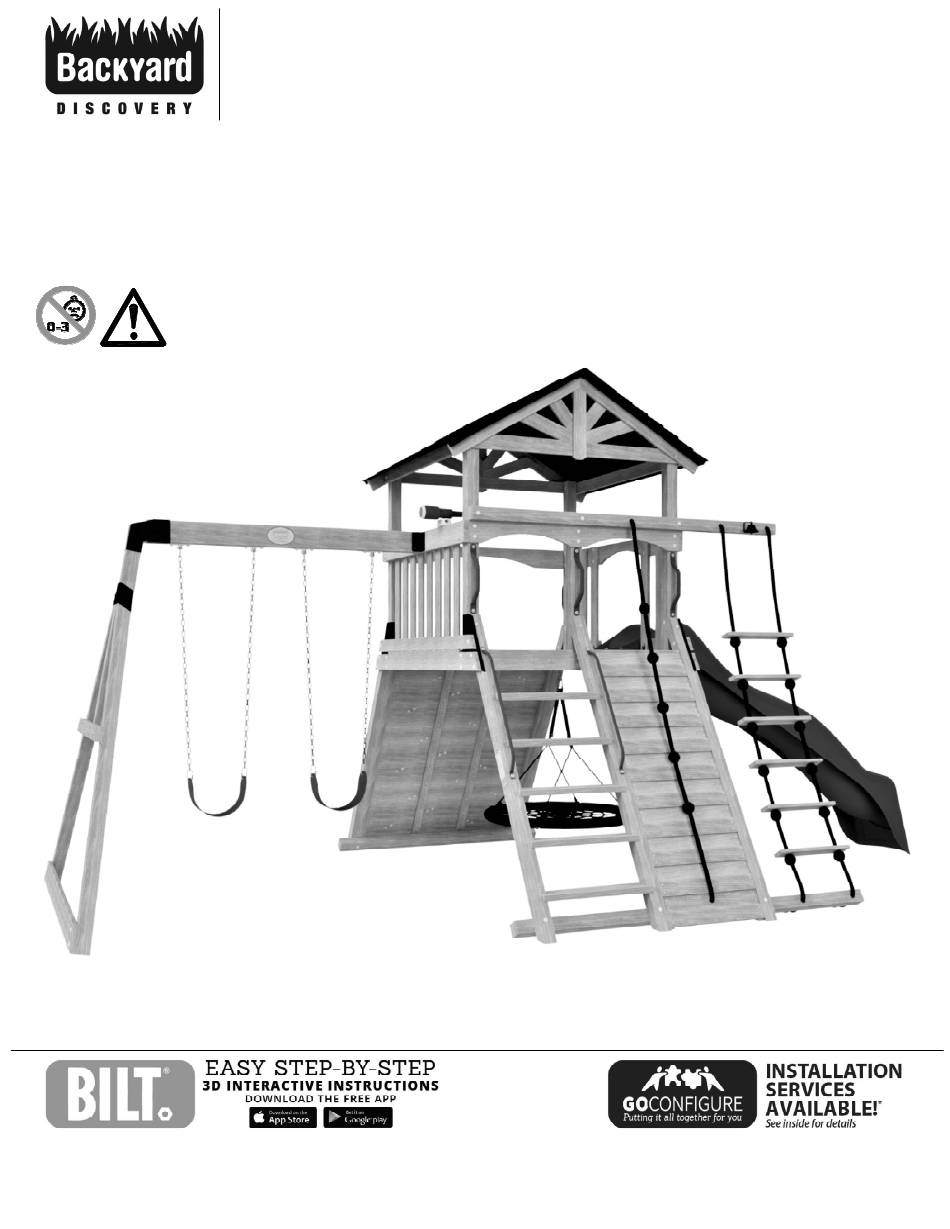

ENDEAVOR
Swing Set
Model # 2200104
WARNING
Adult Assembly Required.
Not suitable for children under 36 months due to small parts.
FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE.
For the most up to date assembly manual, to register your set, or to order replacement parts
Para obtener instrucciones en español, visite www.backyarddiscovery.com
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive, Pittsburg, KS 66762
800-856-4445
Please visit www.backyarddiscovery.com
INS-2200104-A-ENDEAVOR-ENG 12/14/21
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENDEAVOR and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Discovery ENDEAVOR

Summary of Contents for Backyard Discovery ENDEAVOR

  • Page 1 FOR DOMESTIC USE ONLY. INTENDED FOR OUTDOOR USE. Please visit www.backyarddiscovery.com For the most up to date assembly manual, to register your set, or to order replacement parts Para obtener instrucciones en español, visite www.backyarddiscovery.com Made in China INS-2200104-A-ENDEAVOR-ENG 12/14/21...

  • Page 2: General Information

    Owner's Manual - Basic Setup Dimensions & Assembly Notes Place the set on level ground, not less than 6'-7" [2 m] from any structure or obstruction such as a fence, garage, house, overhanging branches, laundry lines, or electrical wires. • While assembling unit, take time before and after each phase to make sure fort is level.
  • Page 3 Owner's Manual - Parts Identification Wood Components (Not to Scale) SWING BEAM 2 POSITION - W4L15991 (x1) 3 3/8"x5 1/4"x68 1/2" (86x134x1740) AL01 STEP - W4L15737 1 3/8"x4 3/8"x22 3/4" (36x112x579) (x5) UPRIGHT - W4L15718 (x2) 3"x3"x55 1/2" (76x76x1410) LEG - W4L15719 3"x3"x77 3/4"...
  • Page 4 Owner's Manual - Parts Identification Wood Components (Not to Scale) WALL RAIL - W4L15729 1 3/8"x5 1/4"x59 1/8" (36x134x1501) (x1) END SUPPORT - W4L15994 1 3/8"x3 3/8"x44 1/8" (36x86x1120) (x1) CLEAT - W4L15746 1 3/8"x2"x68 3/4" (36x52x1747) (x4) WALL RAIL - W4L15725 1"x5 1/4"x57 1/2"...
  • Page 5 Owner's Manual - Parts Identification Wood Components (Not to Scale) ROPE WALL BOARD - W4L15744 1"x3 3/8"x27 5/8" (24x86x701) (x9) WALL RAIL - W4L15980 ROPE LADDER RUNG - W4L15982 1"x3 3/8"x29 7/8" (24x86x760) (x2) (x6) 1"x3 3/8"x19 5/8" (24x86x500) WALL RAIL - W4L15983 1"x3 3/8"x57 1/2"...
  • Page 6 Owner's Manual - Parts Identification Wood Components (Not to Scale) SLIDE MOUNTING BOARD - W4L09040 (x1) 5/8"x1 3/8"x20 3/8" (16x34x517) FLOOR RAIL - W4L15717 1"x4 3/8"x74 3/8" (24x112x1890) (x2) FLOOR RAIL - W4L15721 1"x4 3/8"x57 1/2" (24x112x1460) (x1) FLOOR RAIL - W4L15724 1"x4 3/8"x57 1/2"...

  • Page 7: Hardware Components

    Owner's Manual - Parts Identification Hardware Components H100008 H100023 BOLT WH BOLT WH (x2) (x9) 5/16x1 5/16x6 H100009 BOLT WH H100022 BOLT WH (x3) 5/16x1 1/4 (x6) 5/16x5 H100407 BOLT WH BLK H100505 BOLT WH (x2) 5/16x1 1/2 (x7) 5/16x4 3/4 H100166 BOLT WH (x7)
  • Page 8 Owner's Manual - Parts Identification Hardware Components H100654 BOLT HEX H100073 T-NUT (x9) 3/8x5-1/2 (x9) H100476 BOLT HEX BLK (x2) 5/16x4 1/4 H100074 T-NUT H100379 T-NUT BLK (x96) (x9) 5/16 5/16 H100050 BOLT HEX (x2) 5/16x3 1/4 H100072 T-NUT H100831 NUT BARREL PTH H100128 SCREW PWH...
  • Page 9 Owner's Manual - Parts Identification Accessory Components (Not to Scale) BYD ID TAG A100164 (LARGE) AGES A4M00505 (x1) SWING HANGER H100338 (x4) 3-10 SWIVEL ARM (x1) A-FRAME A4M01498 (x1) BRACKET SWING BEAM SWING BEAM A4M00617 EXTENSION A4M00618 (x1) EXTENSION (x1) BRACKET-LEFT BRACKET-RIGHT L BRACKET...
  • Page 10 Owner's Manual - Parts Identification Accessory Components (Not to Scale) A100287 SLIDE VF 10 FT (x1) HAND GRIP A100118 HAND GRIP A100134 METAL GREEN (x5) (x2) GREEN 816 C/C 381 c/c A4M01495 40" WEB SWING (x1) A6P00507 ROPE (x3) A6P00508 ROPE CLAMP KIT (x23) A6P00096...

  • Page 11: Hardware Parts

    PRE-ASSEMBLY STEP 1 - SORTING PARTS It is critical for ease of assembly that you take the time to sort and organize the wood and hardware. WOOD PARTS: • Organize wood parts by the three-digit, alpha-numeric number stamped on each board (ex. P01). •...
  • Page 12 PRE-ASSEMBLY STEP 2 - TOOLS REQUIRED Drill Attachments: Phillips Head Open End Wrenches 1/2" & 9/16" 1/8", 3/16", 3/8" & 7/16" Drill Bits 3/8" Drive Ratchet, 1/2" & 9/16" STD Sockets 1/2" & 9/16" Deep Sockets Phillips Screw Driver Cordless Drill or Electric Drill Rubber Mallet - Optional Claw Hammer...
  • Page 13 PRE-ASSEMBLY STEP 3 - CHOOSE YOUR ASSEMBLY METHOD There are several types of assembly instructions available to you. 1. Printed Assembly Manual included with your set 2. BILT APP - 3D interactive instructions 3. Combination of the Printed Manual and BILT APP (Note: Step numbers can differ between the two methods)
  • Page 14 STEP 1 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION NUT BARREL WH 5/16x7/8 H100192 H100416 BOLT WH 5/16x3 BLK WASHER LOCK INT 8x15 SWING BEAM 2 POSITION - W4L15991 H100473 3 3/8"x5 1/4"x68 1/2" (86x134x1740) (x1) H100476 BOLT HEX 5/16x4 1/4 BLK H100479 NUT LOCK 5/16 BLK H100770...
  • Page 15 STEP 2 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION H100073 T-NUT 3/8 H100102 WASHER FLAT 11x25 WASHER LOCK INT H100107 10x18 H100654 BOLT HEX 3/8x5-1/2 A4M00505 SWING HANGER (x4) (x8) T-NUT - 3/8" (x8) WASHER - 11x25" (x8) WASHER - 10x18" (x8) BOLT - 5-1/2"...
  • Page 16 STEP 3 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION H100070 SCREW PWH 8x3/4 BYD ID TAG A100164 (LARGE) AGES (x1) 3-10 (x1) BYD ID TAG (LARGE) AGES 3-10 (x4) SCREW - 8x3/4"...
  • Page 17 STEP 4 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION H100379 T-NUT 5/16 BLK H100416 BOLT WH 5/16x3 BLK H100503 BOLT WH 5/16x3-1/2 BLK SP01 SWING BEAM SUPPORT - W4L15992 3 3/8"x3 3/8"x50" (86x86x1269) (x1) ANGLE BRACE - W4L15993 A4M01498 A-FRAME 3"x3"x87 1/8"...
  • Page 18 STEP 5 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 END SUPPORT - W4L15994 (x1) 1 3/8"x3 3/8"x44 1/8" (36x86x1120) H100166 BOLT WH 5/16x4 1/4 H100505 BOLT WH 5/16x4 3/4 GROUND BOARD - W4L15995 (x1) 1"x5 1/4"x86 3/4"...
  • Page 19 STEP 6 - SWING BEAM ASSEMBLY QTY PART NUMBER DESCRIPTION NUT BARREL WH H100192 5/16x7/8 BLK H100416 BOLT WH 5/16x3 BLK (x2) NUT BARREL - 7/8" FULLY TIGHTEN ALL 416 BOLTS NOW. (x2) BOLT - 3"...
  • Page 20 STEP 1 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 UPRIGHT - W4L15718 UPRIGHT - W4L15728 (x1) 3"x3"x55 1/2" (76x76x1410) (x1) 3"x3"x55 1/2" (76x76x1410) H100074 T-NUT 5/16 H100166 BOLT WH 5/16x4-1/4 H100416 BOLT WH 5/16x3 BLK WALL RAIL - W4L15984...
  • Page 21 STEP 2 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100022 BOLT WH 5/16x5 LEG - W4L15719 H100030 WASHER LOCK EXT 8x19 3"x3"x77 3/4" (76x76x1975) (x1) H100074 T-NUT 5/16 LEG - W2A03278 (x1) 3"x3"x79 3/8" (76x76x2015) TIP: INSTALL T-NUTS IN WOOD FIRST (x2)
  • Page 22 STEP 3 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 UPRIGHT - W4L15718 UPRIGHT - W4L15728 H100074 T-NUT 5/16 (x1) 3"x3"x55 1/2" (76x76x1410) (x1) 3"x3"x55 1/2" (76x76x1410) H100416 BOLT WH 5/16x3 BLK WALL RAIL - W4L15984 1"x3 3/8"x59 1/8"...
  • Page 23 STEP 4 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100022 BOLT WH 5/16x5 H100030 WASHER LOCK EXT 8x19 LEG - W4L15719 H100074 T-NUT 5/16 (x1) 3"x3"x77 3/4" (76x76x1975) LEG - W4L15747 (x1) 3"x3"x77 3/4" (76x76x1975) TIP: INSTALL T-NUTS IN WOOD FIRST (x2)
  • Page 24 STEP 5 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 FLOOR RAIL - W4L15724 (x1) 1"x4 3/8"x57 1/2" (24x112x1460) TIP: INSTALL T-NUTS IN WOOD FIRST (x2) WASHER - 8x19 (x2) (x2) BOLT - 3 3/4"...
  • Page 25 STEP 6 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 TIP: INSTALL T-NUTS IN WOOD FIRST (x2) WASHER - 8x19 (x2) (x2) BOLT - 3 3/4" T-NUT - 5/16"...
  • Page 26 STEP 7 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 FLOOR RAIL - W4L15721 1"x4 3/8"x57 1/2" (24x112x1460) (x1) TIP: INSTALL T-NUTS IN WOOD FIRST (x4) WASHER - 8x19 (x4) BOLT - 3 3/4"...
  • Page 27 STEP 8 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100074 T-NUT 5/16 H100030 WASHER LOCK EXT 8x19 H100023 BOLT WH 5/16X6 GROUND BOARD - W4L15976 3"x3"x65 3/8" (76x76x1660) (x1) GROUND BOARD - W4L15733 3"x3"x89 3/8" (76x76x2270) (x1) TIP: INSTALL T-NUTS IN WOOD FIRST (x1) (x4) BOLT - 6"...
  • Page 28 STEP 9 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100005 NUT BARREL WH 5/16x7/8 H100031 WASHER LOCK EXT 12x19 H100128 SCREW PWH 8x5/8 FLOOR JOIST - W4L15723 H100192 NUT BARREL WH 5/16x7/8 BLK 3"x3"x57 1/4" (76x76x1453) (x1) "A" REVISION A100314 (x1) H100195 BOLT WH 5/16x2-3/4 BLK...

  • Page 29: Front View

    STEP 10 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 UPRIGHT - W4L15722 H100091 SCREW PFH 8x2 1/4 FLOOR RAIL - W4L15736 3"x3"x38" (76x76x964) (x1) (x2) 1"x3"x3 3/8" (24x76x86) FRONT VIEW (x1) (x2)
  • Page 30 STEP 11 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100091 SCREW PFH 8x2 1/4 FLOOR RAIL - W4L15736 1"x3"x3 3/8" (24x76x86) (x4) FLUSH TOPS 4 PLCS (x4) (x8) SCREW - 2 1/4"...
  • Page 31 STEP 12 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100022 BOLT WH 5/16x5 H100023 BOLT WH 5/16X6 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 LEG - W4L15739 3"x3"x77 3/4" (76x76x1975) (x1) TIP: INSTALL T-NUTS IN WOOD FIRST (x1) T-NUT - 5/16" (x1) (x1) WASHER - 8x19...
  • Page 32 STEP 13 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100092 SCREW PFH 8x3 AL01 STEP - W4L15737 1 3/8"x4 3/8"x22 3/4" (36x112x579) (x5) ALIGN STEPS USING PILOT HOLES AL01 (x5) (x20) SCREW - 3...

  • Page 33: Side View

    STEP 14 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100089 SCREW PFH 8x1-3/4" H100092 SCREW PFH 8x3 CLEAT - W4L15748 1"x1 3/8"x24 1/4" (24x34x615) (x1) CLEAT - W4L15746 1 3/8"x2"x68 3/4" (36x52x1747) (x2) SIDE VIEW (x1) FLUSH INSIDE FLUSH TOPS (x2) (x3) (x14)
  • Page 34 STEP 15A - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" H100111 SCREW PFH 8x2 ROPE WALL BOARD - W4L16119 ROPE WALL BOARD - W4L15744 1"x2 3/4"x27 5/8" (24x69x701) (x1) (x9) 1"x3 3/8"x27 5/8" (24x86x701) ROPE WALL BOARD - W4L15742 ROPE WALL BOARD - W4L15981 5/8"x3 3/8"x27 5/8"...
  • Page 35 STEP 15B - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" ROPE WALL CLEAT - W4L16469 1"x2 3/8"x63" (24x60x1600) (x1) SIDE VIEW FLUSH TOPS (x1) CENTER J02 ON ROPE WALL (x18) SCREW - 1 1/2"...
  • Page 36 STEP 16 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100089 SCREW PFH 8x1-3/4" H100092 SCREW PFH 8x3 CLEAT - W4L15748 1"x1 3/8"x24 1/4" (24x34x615) (x2) CLEAT - W4L15746 1 3/8"x2"x68 3/4" (36x52x1747) (x2) SIDE VIEW (x2) FLUSH INSIDE FLUSH TOPS (x2) (x6) (x14)
  • Page 37 STEP 17A - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100072 T-NUT 1/4 H100108 WASHER LOCK INT 8x15 H100137 BOLT WH 1/4x1 ROCK WALL BOARD - W4L15974 1"x5 1/4"x51 1/2" (24x134x1307) (x5) ROCK WALL BOARD - W4L15975 GREEN HC ROCK GREEN HC ROCK A6P00037 A6P00036 1"x5 1/4"x51 1/2"...
  • Page 38 STEP 17B - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100111 SCREW PFH 8x2" G06LA (x3) G05RA ROCK WALL BOARD - W4L15749 (x3) 1"x4 1/2"x51 1/2" (24x115x1307) (x2) G06RA (x3) G05LA (x2) SIDE VIEW START HERE 1/8 in [3 mm] (x52) SCREW - 2"...

  • Page 39: Bottom View

    STEP 18 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" ROCK WALL CLEAT - W4L15977 1"x2 3/8"x66 7/8" (24x60x1698) (x2) SIDE VIEW FLUSH TOPS (x2) (x48) SCREW - 1 1/2" BOTTOM VIEW 15 3/4 in 15 3/4 in [399 mm] [399 mm]...
  • Page 40 STEP 19A - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100074 T-NUT 5/16 FLOOR BOARD - W4L15743 5/8"x3 3/8"x59 1/2" (16x86x1511) (x12) FLOOR BOARD - W4L15738 FLOOR BOARD - W4L16468 5/8"x4"x20 7/8" (16x102x529) 5/8"x4"x27 5/8" (16x102x701) (x1) (x1) FLOOR BOARD - W4L15745 (x1) 5/8"x4"x51 1/2"...
  • Page 41 STEP 19B - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" FLOOR BOARD - W4L15743 5/8"x3 3/8"x59 1/2" (16x86x1511) (x3) (x3) (x106) SCREW - 1 1/2"...
  • Page 42 STEP 20 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" FLOOR BOARD - W4L15978 5/8"x4 3/4"x51 1/2" (16x120x1307) (x1) FLOOR BOARD - W4L15979 5/8"x4 3/4"x27 5/8" (16x120x701) (x1) (x12) SCREW - 1 1/2" (x1) (x1)
  • Page 43 STEP 21 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 FLOOR RAIL - W4L15734 1"x3 3/8"x68 1/2" (24x86x1741) (x1) FLOOR RAIL - W4L15735 1"x3 3/8"x22 1/8" (24x86x564) (x2) TIP: INSTALL T-NUTS IN WOOD FIRST (x1)
  • Page 44 STEP 22 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100005 NUT BARREL WH 5/16x7/8 H100011 BOLT WH 5/16x1 3/4 H100030 WASHER LOCK EXT 8x19 H100031 WASHER LOCK EXT 12x19 WALL RAIL - W4L15980 H100074 T-NUT 5/16 L BRACKET A4M01047 1"x3 3/8"x29 7/8" (24x86x760) (x2) (x2) 2.5x38x55x55...
  • Page 45 STEP 23 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 WALL RAIL - W4L15727 (x1) 1"x5 1/4"x57 1/2" (24x134x1460) TIP: INSTALL T-NUTS IN WOOD FIRST (x1) (x4) T-NUT - 5/16" (x4) BOLT - 3 3/4"...
  • Page 46 STEP 24 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100019 BOLT WH 5/16x3 3/4 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 WALL RAIL - W4L15725 (x1) 1"x5 1/4"x57 1/2" (24x134x1460) TIP: INSTALL T-NUTS IN WOOD FIRST (x1) (x6) T-NUT - 5/16" (x6) BOLT - 3 3/4"...
  • Page 47 STEP 25 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100023 BOLT WH 5/16X6 H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 ROPE BOARD - W4L15740 3"x3"x85 3/8" (76x76x2170) (x1) TIP: INSTALL T-NUTS IN WOOD FIRST (x1) (x3) T-NUT - 5/16" (x3) BOLT - 6"...
  • Page 48 STEP 26 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" PICKET - W4L15997 5/8"x3 3/8"x29 7/8" (16x86x760) (x2) SIDE VIEW 3 3/8 in [85 mm] USE A6P00410 PICKET PAL FOR SPACING (x2) (x8) SCREW - 1 1/2" SET PICKET ON FLOOR...
  • Page 49 STEP 27 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" PICKET - W4L15997 5/8"x3 3/8"x29 7/8" (16x86x760) (x8) SIDE VIEW 2 5/8 in [68 mm] (x8) USE PICKET PAL FOR PICKET SPACING (x32) SCREW - 1 1/2" SET PICKET ON FLOOR...
  • Page 50 STEP 28 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100030 WASHER LOCK EXT 8x19 H100074 T-NUT 5/16 H100505 BOLT WH 5/16x4 3/4 WALL RAIL - W4L15983 1"x3 3/8"x57 1/2" (24x86x1460) (x2) ROOF RAIL - W4L15985 1"x3 3/8"x39 5/8" (24x86x1007) (x4) TIP: INSTALL T-NUTS IN WOOD FIRST (x2)
  • Page 51 STEP 29 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100089 SCREW PFH 8x1-3/4" GABLE BOARD - W4L15986 1"x3 3/8"x17 3/8" (24x86x440) (x2) GABLE CLEAT - W4L15987 1"x3"x3 3/8" (24x76x86) (x2) (x2) (x2) (x12) SCREW - 1 3/4" SIDE VIEW ENSURE H10 BOARDS ARE SQUARE WITH H07...
  • Page 52 STEP 30 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100089 SCREW PFH 8x1-3/4" GABLE BOARD - W4L15988 GABLE BOARD - W4L15989 (x4) 1"x3 3/8"x18 1/4" (24x86x465) (x4) 1"x3 3/8"x11 3/4" (24x86x300) SIDE VIEW CORRECT BOARD ASSEMBLY (x4) (x24) (x4) SCREW - 1 3/4"...
  • Page 53 STEP 31 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100091 SCREW PFH 8x2-1/4" PEAK ROOF PANEL - W2A03276 1 5/8"x20 5/8"x59" (42x511x1676) (x2) SIDE VIEW (x12) SCREW - 2 1/4" CORRECT PANEL ASSEMBLY (x2)
  • Page 54 STEP 32 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100091 SCREW PFH 8x2-1/4" ROOF PANEL - W2A03277 1 5/8"x20 5/8"x66" (42x524x1676) (x2) SIDE VIEW (x12) SCREW - 2 1/4" CORRECT PANEL ASSEMBLY (x2)
  • Page 55 STEP 33 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100380 SCREW PFH 8x1 1/8 BLK ROOF CLEAT - W4L15990 5/8"x2 3/8"x31 1/2" (16x60x800) (x4) BOTTOM VIEW FRONT VIEW 15 3/4 in [401 mm] 20 7/8 in [531 mm] CORRECT BOARD ASSEMBLY (x4) (x24) SCREW - 1 1/8"...
  • Page 56 STEP 34 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100027 LAG SCREW WH 5/16x2 HAND GRIP A100118 METAL GREEN (x2) 381 c/c (x2) HAND GRIP (x4) LAG SCREW - 2"...
  • Page 57 STEP 35 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100027 LAG SCREW WH 5/16x2 HAND GRIP A100118 METAL GREEN (x3) 381 c/c (x3) HAND GRIP (x6) LAG SCREW - 2"...
  • Page 58 STEP 36 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100027 LAG SCREW WH 5/16x2 HAND GRIP A100134 (x2) GREEN 816 C/C (x4) LAG SCREW - 2" (x2) HAND GRIP...
  • Page 59 STEP 37 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100050 BOLT HEX 5/16x3 1/4 H100095 WASHER SPLIT 5/16 H100105 WASHER FLAT 8x27 H100338 TIRE SWIVEL (x1) (x2) WASHER - 8x27 (x2) WASHER - 5/16" (x1) TIRE SWIVEL (x2) BOLT - 3 1/4"...
  • Page 60 STEP 38 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100477 WASHER SPLIT 5/16 BLK H100478 WASHER FLAT 8x27 BLK H100498 BOLT HEX 5/16x1-1/2 - BLK SWING BEAM ASSEMBLY SWING BEAM ASSEMBLY (x4) WASHER - 8x27 (x4) WASHER - 5/16 (x4) BOLT - 1 1/2"...
  • Page 61 STEP 39 - FORT ASSEMBLY A100069 QUICK LINK (x4) A100027 SWING SEAT (x2) GREEN 26" A100047 CHAIN GREEN (x4) 57" (x4) CHAIN GREEN 57" (x4) QUICK LINK (x2) SWING SEAT GREEN 26"...
  • Page 62 STEP 1 - WEB SWING ASSEMBLY QTY PART NUMBER DESCRIPTION H101121 BOLT PTH 1/4x1 BLK with LOCTITE H100831 NUT BARREL PTH 1/4x3/4 BLK WEB SWING SETUP INSTRUCTIONS FOLLOW INSTRUCTIONS BELOW BEFORE USING THE WEB SWING. IMPORTANT: SLIDE ROPE LOOPS OVER TUBE ENDS FIRST! (SEE VIEW BELOW) SLIDE NARROW END OF TUBES INTO LARGER OPENING AFTER...
  • Page 63 STEP 40 - FORT ASSEMBLY A4M01044 CARABINER SD (x1) A4M01495 40" WEB SWING (x1) (x1) CARABINER SD (x1) 40" WEB SWING...
  • Page 64 STEP 1 - ROPE CLAMP ASSEMBLY ROPE CLAMP ATTACHED IN NEXT STEP. (x2) BOLT PPH - 1 1/2" (x2) NUT - 1/4" (x1) ROPE CLAMP KIT ROPE (x1)
  • Page 65 STEP 41 - FORT ASSEMBLY A6P00508 ROPE CLAMP KIT (x7) A6P00507 ROPE (x1) (x7) ROPE CLAMP KIT (x1) ROPE MINIMUM 2 INCHES [50mm] OF ROPE OUT OF ROPE CLAMP ROPE SECTION 9 3/4 in [248 mm] ROPE CLAMP SPACING...
  • Page 66 STEP 42 - FORT ASSEMBLY A6P00508 ROPE CLAMP KIT ROPE LADDER RUNG - W4L15982 (x16) 1"x3 3/8"x19 5/8" (24x86x500) (x6) A6P00507 ROPE (x2) (x16) ROPE CLAMP KIT (x2) ROPE MINIMUM 2 INCHES [50mm] OF ROPE OUT OF ROPE CLAMP ROPE LADDER SECTION 11 in [280 mm] (x6)
  • Page 67 STEP 43 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100392 SCREW PWH 8x3/4 BLK A4M00554 BELL ASSEMBLY (x1) 9 7/8 in [250 mm] (x2) SCREW - 3/4" (x1) BELL ASSEMBLY...
  • Page 68 STEP 44 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100086 SCREW PFH 8x1-1/2" A6P00096 TELESCOPE (x1) (x2) SCREW - 1 1/2" (x1) TELESCOPE CENTER IN D01 BOARD...

  • Page 69: Top View

    STEP 45 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100009 BOLT WH 5/16x1-1/4" H100074 T-NUT 5/16" H100088 SCREW PFH 8x1-1/8" SLIDE MOUNTING BOARD - W4L09040 A100287 SLIDE VF 10 FT 5/8"x1 3/8"x20 3/8" (16x34x517) (x1) (x1) TOP VIEW (x4) SCREW - 1 1/8" (x1) 3 in 1 7/8 in...
  • Page 70 STEP 46 - FORT ASSEMBLY QTY PART NUMBER DESCRIPTION H100004 NUT BARREL WH 5/16x5/8 H100008 BOLT WH 5/16x1 H100028 LAG SCREW WH 5/16x2 1/2 H100031 WASHER LOCK EXT 12x19 A100178 AUGER GROUND STAKE (x6) DETAIL - A DETAIL - A (x2) DETAIL - A NUT BARREL - 5/8"...
