Backyard Discovery 6411 Owner's Manual
Backyard Discovery 6411 Owner's Manual

Backyard Discovery 6411 Owner's Manual

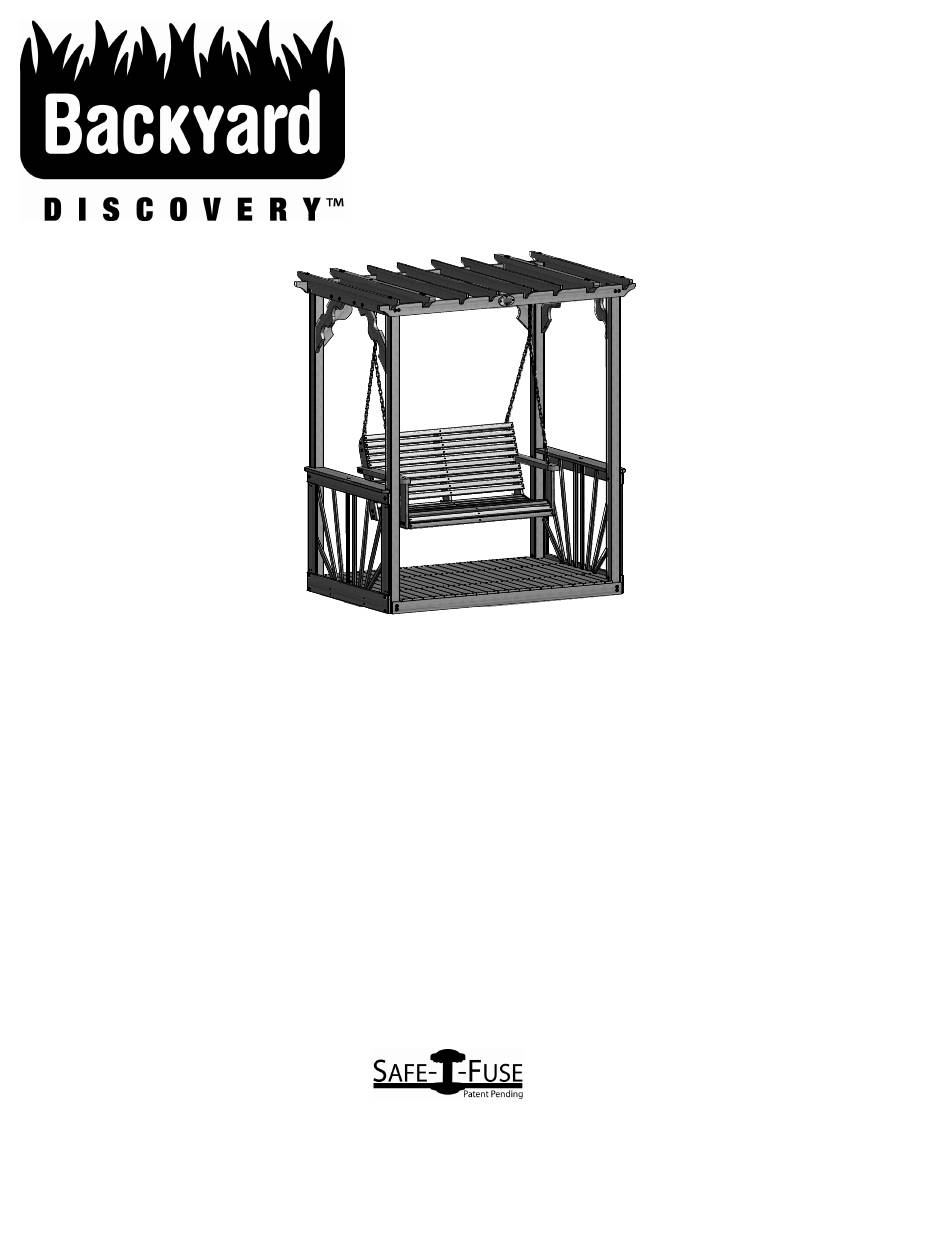

Pergola swing

Advertisement

Quick Links

Owner's Manual
Frequently Asked Questions
Assembly Instructions
Warranty Information
www.swingsetsonline.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Features the
Save this assembly manual for future reference in the event that
INS-06411-11 BRS 03/31/11
Manufacturer: Backyard Discovery
3001 North Rouse
Pittsburg, KS 66762
1-800-856-4445
Register your new pergola swing on-line @
you need to order replacement parts.
P P
P e e e e r r r r g g g g o o o o l l l l a a a a S S S S w w w w i i i i n n n n g g g g
P
M o o o o d d d d e e e e l l l l : : : : # # # # 6 6 6 6 4 4 4 4 1 1 1 1 1 1 1 1
M
M
M
fastening system.
Made in China

Advertisement

loading
Need help?

Need help?

Do you have a question about the 6411 and is the answer not in the manual?

Questions and answers

Summary of Contents for Backyard Discovery 6411

  • Page 1 • Assembly Instructions • • Warranty Information • Manufacturer: Backyard Discovery 3001 North Rouse Pittsburg, KS 66762 1-800-856-4445 Register your new pergola swing on-line @ www.swingsetsonline.com (you will also find any updates on assembly instructions and information to order replacement parts) Features the fastening system.
  • Page 2 STOP PARE Missing A Part? CALL US BEFORE GOING BACK TO THE STORE! The store where you made your purchase does not stock parts for this item. If you have assembly questions or if you need parts, whether they are missing or damaged Call Toll-Free Help Line or visit www.swingsetsonline.com ¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA! La tienda donde realizó...
  • Page 3 Owner’s Manual Outdoor Product Manual del Propietario del producto para exteriores Dear Customer: Estimado cliente: Please read entire booklet completely before beginning the assembly process. Lea este folleto completamente antes de comenzar el proceso de ensamblaje. Structures are not intended for public use. The Company does not warranty any of its residential structures subjected to commercial use such as: Recreational Park, or any similar Commercial Application.
  • Page 4 Owner’s Manual Outdoor Product Manual del Propietario del producto para exteriores Maintenance Instructions: Instrucciones de mantenimiento: 1. Check all nuts and bolts twice monthly during the usage season and tighten as required. (But not so tight that you crack the wood) It is particularly important that this procedure be followed at the beginning of each season.
  • Page 5 Our wood carries a 5 year pro-rated warranty on rot and decay as well. Please see warranty details for more information. 5. What is the best way to get started assembling the product? Backyard Discovery recommends taking all the parts out of the boxes and arranging them by part number before you begin any assembly.
  • Page 6: Tools Required For Installation

    Tools Required for Installation: (These are the tools that are generally required for assembly of our outdoor products. These tools are not included in the outdoor product purchase.) (Square) (Level 24") (Open End Wrenches 1/2") (Drive Ratchet, 1/2" STD (Tape Measure) Sockets &...
  • Page 7 B B B B a a a a s s s s i i i i c c c c S S S S e e e e t t t t u u u u p p p p D D i i i i m m m m e e e e n n n n s s s s i i i i o o o o n n n n s s s s Place the pergola swing on level ground, not less than 6 ft [2 m] from any structure or obstruction suchas a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
  • Page 8: Parts Identification

    Parts Identification Wood Components (NOT TO SCALE) B1 - POST - W101671 3"x3"x89 1/2" (76x76x2274) E1 - SWING RAIL - W101724 1 3/8"x3 3/8"x26 5/8" (36x86x677) E2 - SWING RAIL - W101725 1 3/8"x3 3/8"x26 5/8" (36x86x677) G1 - GROUND BOARD - W101673 1"x5 1/4"x48 1/8"...
  • Page 9 Parts Identification Wood Components (NOT TO SCALE) H5 - RAIL SUPPORT - W101710 1"x3 3/8"x48 1/8" (24x86x1222) H6 - SWING BACK SUPPORT - W101729 5/8"x3 3/8"x46 3/4" (16x86x1186) H7 - SWING SEAT SUPPORT - W101728 5/8"x3 3/8"x44 3/4" (16x86x1138) H8 - FLOOR BOARD - W101675 5/8"x3"x42 1/8"...
  • Page 10 Parts Identification Wood Components (NOT TO SCALE) L1 - INLET SUPPORT - W101715 5/8"x4 3/8"x26 1/8" (16x112x664) M1 - PERGOLA BEAM - W101693 5/8"x3 3/8"x58 7/8" (16x86x1495) M2 - FLOOR BOARD - W101676 (19) 5/8"x3 3/8"x50" (16x86x1270) S1 - INLET - W101677 (12) 5/8"x1 1/8"x30 7/8"...
  • Page 11 Parts Identification Hardware RS - BOLT HEX 5/16x5-1/2 - H100168 AH - BOLT HEX 5/16x1-1/2 - H100041 CY - SCREW PWH 8x5/8 - H100128 (34) BG - T-NUT 5/16 - H100074 LD - LAG SCREW WH 1/4x2 - H100146 AB - LAG SCREW WH 5/16x3 - H100029 (10) D - NUT BARREL WH 5/16x7/8 - H100005 (10)
  • Page 12 Parts Identification Hardware (10) CJ - NUT LOCK 5/16 - H100110 CE - WASHER FLAT 9x18 - H100106 KV - WASHER LOCK EXT 6x15 - H100138 CD - WASHER FLAT 8x27 - H100105 - T-40 Wrench - A100041 CB - WASHER SAFETY 17x30 - H100103 - T-40 Torx Driver - A100042 (32) BR - SCREW PFH 8x1-1/8"...
  • Page 13 Parts Identification A A A A c c c c c c c c e e e e s s s s s s s s o o o o r r r r i i i i e e e e s s s s FA - QUICK LINK -A100069 (2) QW - CHAIN ASSEMBLY - A100288...
  • Page 14: Frame Assembly

    Frame Assembly Phase 1 Hardware needed: Parts needed: • (8) E - NUT BARREL WH 5/16x1-3/4 - H100007 • (2) B1 - POST - W101671 • (8) AD - WASHER LOCK EXT 12x19 - H100031 • (1) H1 - BEAM SUPPORT - W101716 •...
  • Page 15 Frame Assembly Phase 2 Hardware needed: Parts needed: • (8) E - NUT BARREL WH 5/16x1-3/4 - H100007 • (2) B1 - POST - W101671 • (8) AD - WASHER LOCK EXT 12x19 - H100031 • (1) H2 - BEAM SUPPORT - W101691 •...
  • Page 16 Frame Assembly Phase 3 Hardware needed: Parts needed: • (8) E - NUT BARREL WH 5/16x1-3/4 - H100007 • (2) G3 - PERGOLA BEAM - W101679 • (8) AD - WASHER LOCK EXT 12x19 - H100031 • (2) H5 - RAIL SUPPORT - W101710 •...
  • Page 17 Frame Assembly Phase 4 Hardware needed: Parts needed: • (8) BT - SCREW PFH 8x2-1/2 - H100090 • (2) H3 - FLOOR SUPPORT - W101674 Phase Notes • Assemble with hardware as shown. To prevent board splitting, you Note: It is vital that the structure must pre-drill each board with be level before and after each a 1/8"...
  • Page 18 Frame Assembly Phase 5 Hardware needed: Parts needed: • (176) CK - SCREW PFH 8x2 - H100111 • (2) H8 - FLOOR BOARD - W101675 • (1) T1 - FLOOR BOARD - W101703 • (19) M2 - FLOOR BOARD - W101676 Phase Notes Note: It is vital that the structure be level before and after each...
  • Page 19 Frame Assembly Phase 6 Hardware needed: Parts needed: • (12) J - BOLT WH 5/16x1-3/4 - H100011 • (6) G4 - CORNER SUPPORT - W101711 • (12) AC - WASHER LOCK EXT 8x19 - H100030 • (12) BG - T-NUT 5/16 - H100074 Phase Notes •...
  • Page 20 Frame Assembly Phase 7 Hardware needed: Parts needed: • (16) BT - SCREW PFH 8x2-1/2 - H100090 • (4) L1 - INLET SUPPORT - W101715 Phase Notes • Assemble with hardware as shown. Note: It is vital that the structure be level before and after each phase of assembly.
