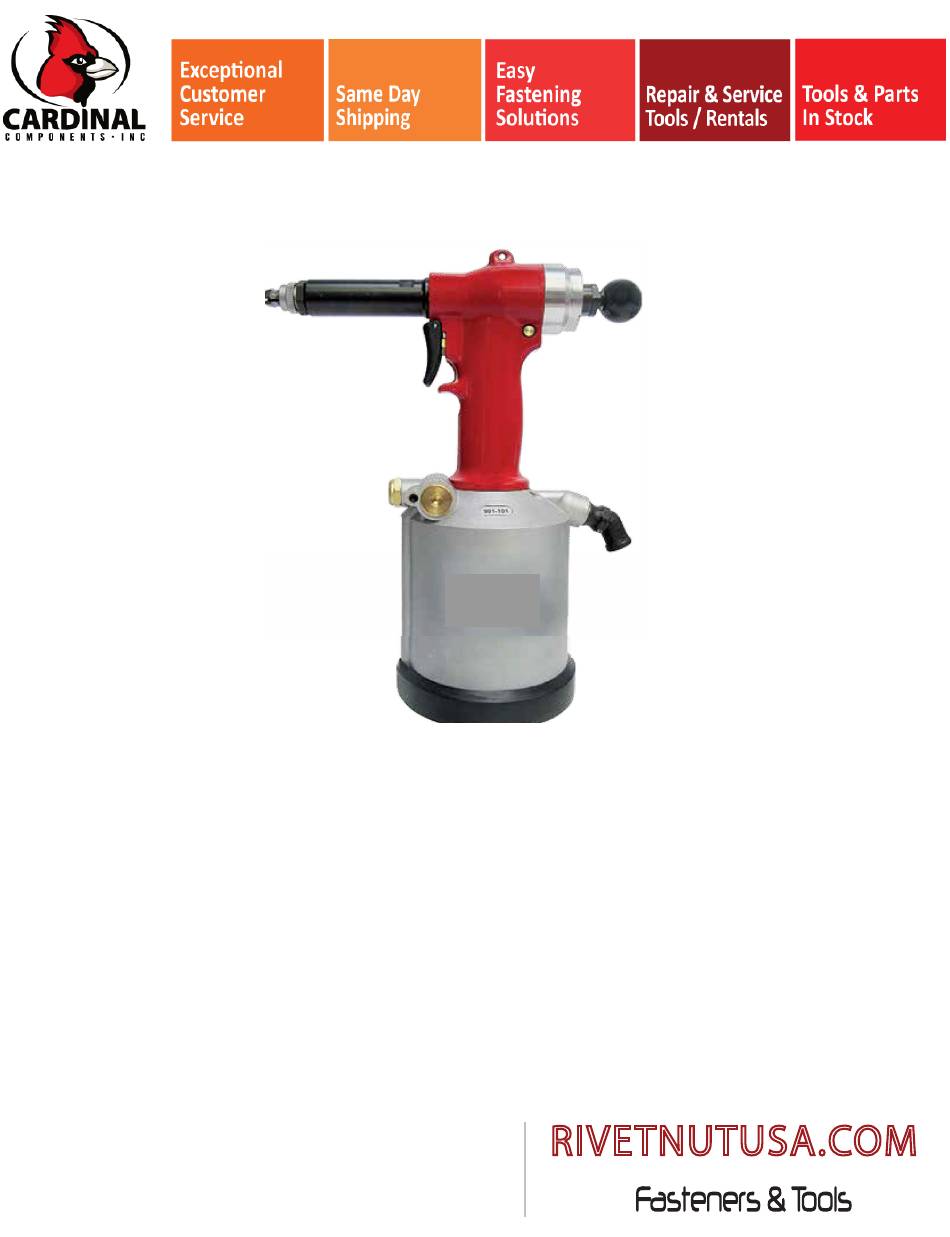

- Page 1 9991 Pneumatic Hex Hole Cutting Tool for 1032-1/2 (M5-M12) RIVETNUTUSA.COM ISO 9001 ISO CERTIFIED 800.236.3200 - sales@rivetnutusa.com A division of Cardinal Components, Inc. Blanket Orders - Level III PPAP’s - In Business Since 1983...
- Page 2 OPERATING SYSTEM 9991 The hydro-pneumatic hexcutter tool for hexagonal holes, , is used for hexagonal rivet nuts. Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200...
-
Page 3: Noise Level
21 kN @ 6 BAR WEIGHT 5.3 lbs. / 2.4 kg VIBRATIONS < 2.5 m/s2 NOISE LEVEL 80 dB (A) Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200... - Page 4 M10 COMPLETE KIT FOR RIVET NUT HEXAGON 13 4669200 M12 COMPLETE KIT FOR RIVET NUT HEXAGON 16 Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200...
-
Page 5: Kit Composition
SLEEVE FOR M10 4669500 HEXAGONAL PUNCH FOR M10 RIVET NUT HEXAGON 13 WITH RING NUT 4527500 PISTON CONNECTION Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200... - Page 6 SLEEVE FOR M12 4669400 HEXAGONAL PUNCH FOR M12 RIVET NUT HEXAGON 16 WITH RING NUT 4527500 PISTON CONNECTION Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200...
- Page 7 ASSEMBLY FOR M10 KIT (4631900) AND M12 KIT (4669200) Unscrew with 17mm wrench Hold tight with 39mm wrench Assemble M10 or M12 kit Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200...
-
Page 8: Spare Parts
SPARE PARTS Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200... - Page 9 NOTE: When placing an order, please indicate the REF. number and the DESCRIPTION. REF. PART NUMBER DESCRIPTION 4644400 SLEEVE 3119900 RING NUT 3119800 PISTON CONNECTION Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. Sales@RivetNutUSA.com (800) 236-3200...
-
Page 10: General Warnings
It is therefore absolutely crucial not to exceed the maximum pressure indicated in the technical data section on page 3. Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. - Page 11 The air supply line must be free from dirt and moisture to prevent early wear of moving components on the tool. Therefore, it is recommended to use dry air: i.e. not greased. Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor.
-
Page 12: Preliminary Checks
• Insert the punch inside the proper ring nut • Screw the sleeve on but don’t cover the cylindrical end of the punch Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. -
Page 13: Ordinary Maintenance
Do not throw the old oil outdoors. Hand it over to an authorized waste disposal center. Warning!: If you should accidentally spill oil on your skin, wash and rinse thoroughly with soap and water. Request your quote with Rivet Nut USA (a division of Cardinal Components, Inc.) Cardinal Components is your authorized preferred distributor. -
