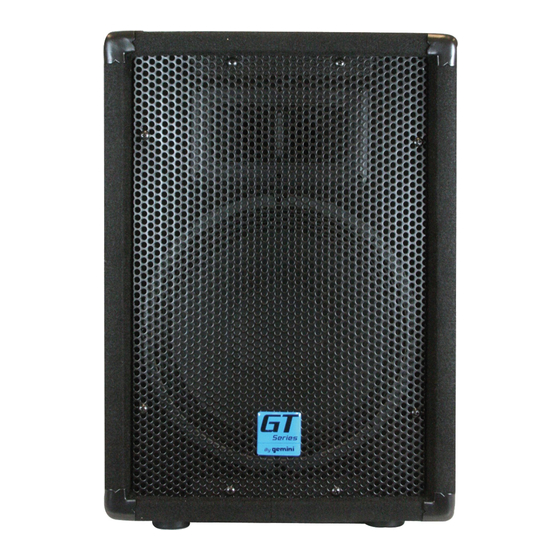

GT-SERIES LOUDSPEAKERS
GT-1004 • GT-1204 • GT-1504 • GT-3004
Specifications
Frequency Response
Respuesta Frecuencia | Bande passante | Frequenzgang
Dimensions
Dimensiones | Dimensions | Abmessungen
Net Weight
Peso Neto | Poids net | Gewicht
Double Piezo Horn
Trompeta Piezo Doble | Moteur à double pavillon | Doppel-Piezohorn
Low Frequency Driver
Altavoz de graves | Haut-parleur Basses | Bass-Chassis
Input
Entrada | Entrée | Eingang
Impedance
Impedancia | Impedance | Impedanz
Peak Power
Potencia de pico | Peak | Peak
RMS
RMS | RMS | RMS
Note: 1004, 1204, 1504, and 3004 have similiar back panels.
Nota: 1004, 1204, 1504 y 3004 tienen paneles traseros similares.
Note: 1004, 1204, 1504 et 808 disposent d'une face arrière identique.
Wichtig: 1004,1204, 1504 und 3004 haben identische Rückseiten.
GT-1004
GT-1204
60Hz ~ 20kHz
50Hz ~ 20kHz
12.5" x 9.1" x 18.3"
15.9" x 11.2" x 23.6"
(318mm x 232mm x 465mm)
(403mm x 284mm x 600mm)
15.6 lbs (7.1 kg)
22.7 lbs (10.3 kg)
6" x 3"
11" x 5"
10"
12"
Banana & (2) 1/4"
Banana & (2) 1/4"
8Ω
8Ω
360W
400W
90W
100W
GT-1204
12" Trapezoid Loudspeaker, 100W RMS, 400W peak power
1
3
DESIGNED AND ENGINEERED IN USA BY GEMINI,
A DIVISION OF GCI TECHNOLOGIES, MANUFACTURED IN CHINA
GT-1504
40Hz ~ 20kHz
19" x 14.4" x 28.2"
(482mm x 400mm x 88mm)
36.1 lbs (16.4 kg)
11" x 5"
15"
Banana & (2) 1/4"
8Ω
700W
175W
Especificaciones • Caractéristiques techniques • Technische Daten
Serial Number
2
GT-3004
35Hz ~ 20kHz
19" x 14.4" x 42.3"
(483mm x 365mm x 1075mm)
53.9 lbs (24.5 kg)
11" x 5"
(2)15"
Banana & (2) 1/4"
4Ω
1200W
300W
Specifications
1
