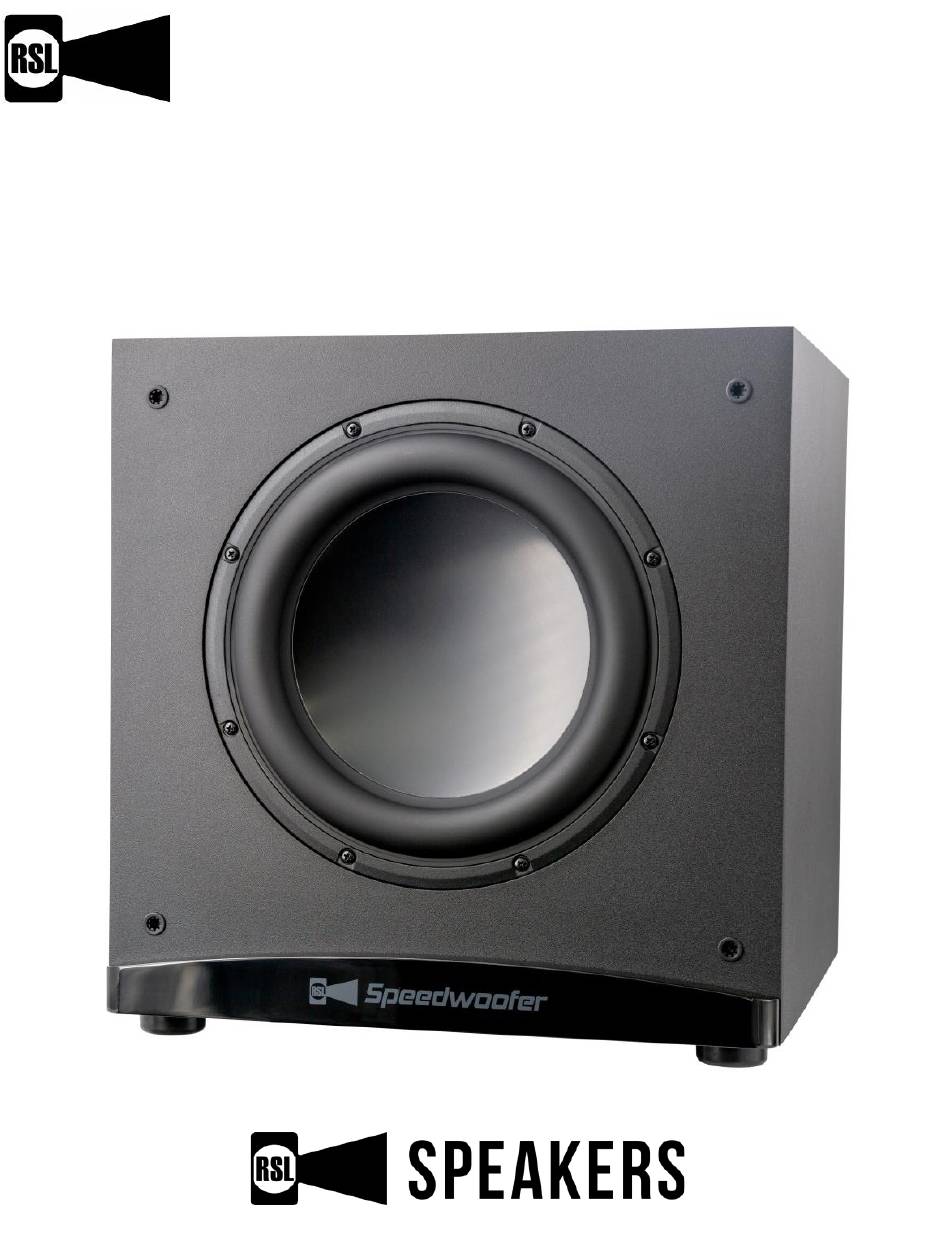

Speedwoofer 10S
MKII
OWNER'S MANUAL
Written by people who hate owners manuals and have limited attention spans.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Speedwoofer 10SMKII and is the answer not in the manual?

Questions and answers

Related Manuals for RSL Speedwoofer 10SMKII

Summary of Contents for RSL Speedwoofer 10SMKII

  • Page 1 Speedwoofer 10S MKII OWNER’S MANUAL Written by people who hate owners manuals and have limited attention spans.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ THIS SECTION CAREFULLY BEFORE PROCEEDING! 1. Read These Instructions – before operating. CAUTION 2. Retain These Instructions RISK OF ELECTRIC 3. Heed All Warnings And Follow All Instruc- SHOCK tions. DO NOT OPEN 4. Cleaning – Unplug this product from the wall outlet before cleaning.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS — Continued 8. Power Sources – This product should be 14. Replacement Parts – Use only replacement operated only from the type of power source parts specified by the manufacturer.. Unauthor- indicated on the marking label. If you are ized substitutions may result in fire, electric not sure of the type of power supply to your shock, or other hazards.

  • Page 4: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ………………… ..… ……………………….. … INTRODUCTION…………………………………………………………………………………………………..5 … …….. COMPRESSION GUIDE TECHNOLOGY - A LITTLE HISTORY………………… …… … SPEEDWOOFER 10SMKII FEATURES…………. …………………………………………………….7 …… FIRST STEPS………………………………………………………………………………………………………...7 …… ROOM ACOUSTICS………………………………………………………………………………………… …. POSITIONING YOUR SUBWOOFER…………………………………………………………………… MULTIPLE SUBWOOFERS……..……………………..……………………………………… ……………… HOME THEATER INSTALLATION……………………………………………………………………… … ...9 ……...

  • Page 5: Introduction

    Your New Speedwoofer 10S MKII The original RSL Speedwoofer 10S was introduced in 2016. Since that time, it has racked up numerous awards, including several product of the year titles. It set a standard for what’s possible from a compact, affordable 10 inch subwoofer. Its patented Compression Guide tuning allowed it to outperform sealed subwoofer designs when it came to accuracy and it also matched the bass impact usually associated with larger 12 inch ported subwoofers.
  • Page 6 Standard Enclosure Compression Guide Enclosure Compression Guide Technology - History - Continued For example, with a bass guitar, you can hear the pick of the string along with the bass note. With a kick drum, you could hear the rap of the mallet against the skin of the drum and your body could feel the impact.

  • Page 7: Speedwoofer 10Smkii Features

    Speedwoofer 10 SMKII Features • Improved Compression Guide Technology Tuning with rear venting. • Precision 10” woofer with heavy, die-cast aluminum frame, massive magnet structure and motor assembly. This allows the cone, along with its surround to achieve high excursions, delivering deep, powerful bass with complete control and linearity.

  • Page 8: Room Acoustics

    More Than You Probably Want to Know About Room Acoustics The acoustical characteristics of your listening room has a major effect on sound quality. This is so important, it bears repeating (so feel free to re-read the first sentence). If your room has good acoustical qualities, even mediocre speakers can sound pretty good.

  • Page 9: Multiple Subwoofers

    Multiple Subwoofers The majority of our customers are quite happy with the performance of a single Speedwoofer. However, many audio experts recommend dual subwoofers. They feel that with two or more subs it’s much easier to get consistent bass distribution by placing the two subs in different positions.

  • Page 10: Stereo Installation

    (In this manual) (If you are a home theater user, please skip to page 12) The RSL Speedwoofer 10SMKII can be used in virtually all stereo systems. Depending on your equipment, there are different options for hooking up your Speedwoofer.

  • Page 11: Protecting Your Speakers

    Receivers And Amplifiers With No Pre-amplifier Outputs Method #3 - Connection Using Speaker Wires If your equipment can’t accommodate the first two methods, use this method. You will need an additional pair of two-conductor speaker wires. In addition to your main speaker connections, you’ll run a second set of wires to your subwoofer (see diagram above).

  • Page 12: Connecting Your Subwoofer Wirelessly

    The RSL AT4 Wireless Audio Transmitter has a range up to 50 ft. The first time you setup the AT4 for wireless use, you will need to pair it with the Speedwoofer. You should only need to do this once.

  • Page 13: Wireless Connection Information

    Wireless Connection Information (Important) If you are using your RSL Speedwoofer 10SMKII wirelessly, here is some additional information you should know: • When pairing the wireless transmitter to the Speedwoofer, the Speedwoofer’s pairing button must be held for 3 or 4 seconds and no longer.

  • Page 14: Some Installation Tips

    Your RSL Speedwoofer 10SMKII is powered by a conservatively-rated 400 watt RMS amplifier. Combined with its Compression Guide tuning, your Speedwoofer should be more than capable of providing an abundance of clean, powerful bass. In addition, the RSL Speedwoofer 10SMKII contains circuitry that helps prevent distortion when played at excessively loud volumes.

  • Page 15: A Discussion About Maximum Bass Output

    The amount of bass your system can produce is determined by several factors. For some, the bass produced by a single quality subwoofer like our Speedwoofer 10SMKII is more than plenty. Many of our customers report that they can’t turn up their subwoofer nearly all the way without upsetting other members of their family.

  • Page 16: Operating Your Subwoofer

    Operating your RSL Speedwoofer 10S MKII Power Indicator - When the indicator light is red, the Speedwoofer is in standby mode (when the auto power switch is set to on). When the Speedwoofer receives a signal, it will turn on and the light will change to green.
  • Page 17 Crossover-DSP Settings – The crossover knob selects both the crossover frequency and also lets you select from two DSP sound modes. If the knob is turned fully counterclockwise until it clicks (LFE enabled), the internal crossover of the Speedwoofer is bypassed and the crossover function will be handled by your home theater receiver or processor.

  • Page 18: Troubleshooting

    Verify that the wall outlet is powered. 2. Check the RSL Speedwoofer 10SMKII’s removable fuse. It is located below the AC socket on the amplifier. Accessing the fuse. Make sure the Speedwoofer is unplugged from the AC.

  • Page 19: Warranty

    Here are the terms (sorry, our lawyer made us do this): RSL warranties your speakers for a period of 5 years from the date of purchase. We warranty our subwoofer amplifiers for a period of 2 years from the date of purchase. Our products are warranted to be free of defects in original materials and workmanship.
