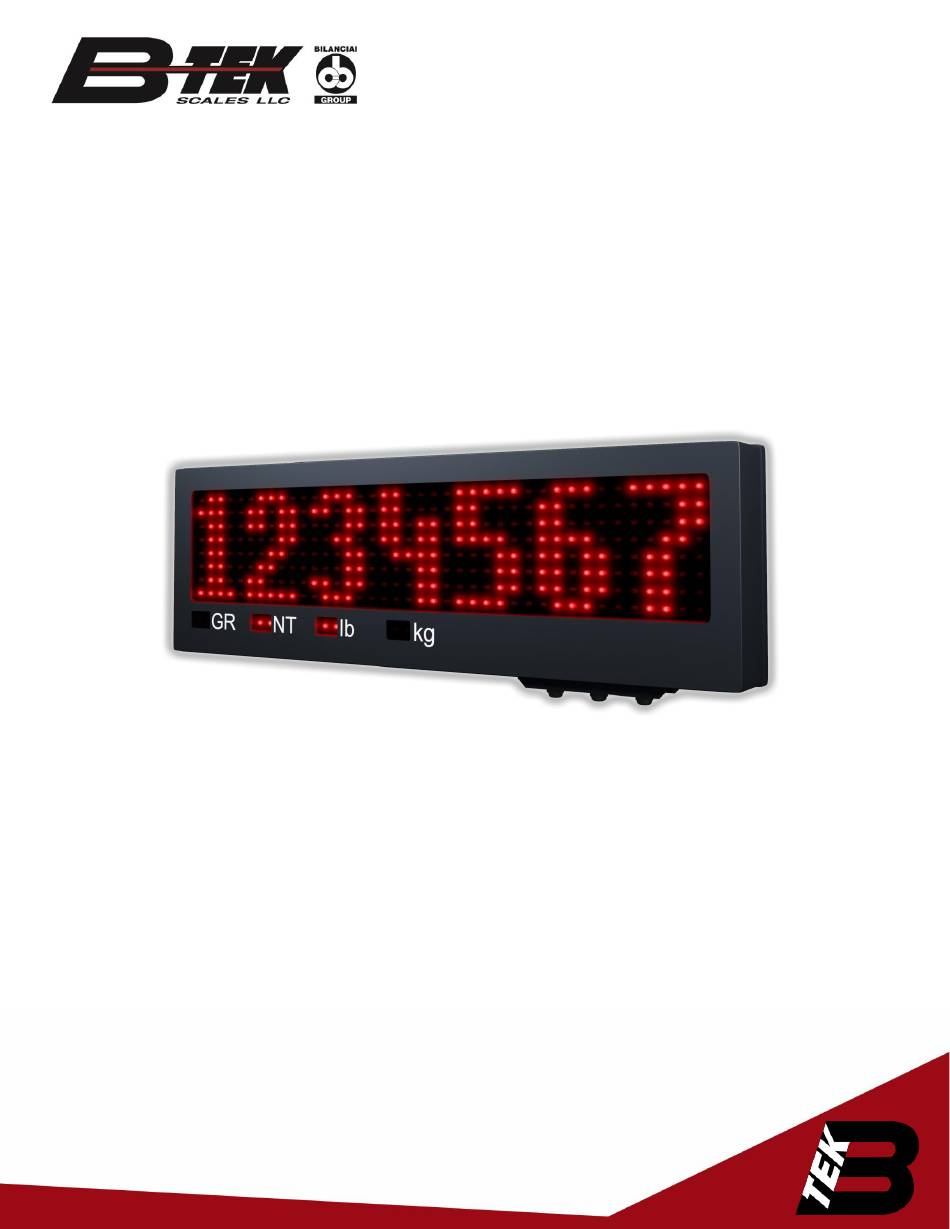

- Page 1 BT-470 REMOTE DISPLAY Item# 841-100040 / 841-100041 OPERATION & SETUP GUIDE V1.6 Page | 1...
-
Page 2: Table Of Contents
Contents Introduction ..............................3 Downloads ..............................3 Wall and Pole Mounting ..........................4 Autolearn Mode ............................5 Embedded User Menu ..........................6 Factory Default ............................7 Connecting the Display to a Computer for Configuration Purposes............. 8 WagSet RM (Windows Operating System only) ..................8 Web Panel Configuration Method ...................... -
Page 3: Introduction
Introduction BT-470 remote displays are designed to display measurement results transmitted by weighing terminals. The displays operate in the automatic mode by default (see Autolearn) and in standard installations do not require any prior configuration. For advanced options, it is necessary to adjust the settings via the WagSet RM software or through the user menu embedded in the device. -
Page 4: Wall And Pole Mounting
Wall and Pole Mounting The BT-470 Item# 841-100041 can be wall mounted by fastening the two angle brackets to the side of the display, then attaching to a sturdy wall. When installing without the visor, it is recommended to install in an area protected from direct sunlight and rain. -
Page 5: Autolearn Mode
Autolearn Mode The autolearn mode is enabled by default (position no. 0 is set in the 'proto' submenu). To disable it, the communication protocol must be set manually using the embedded user menu or the WagSet RM software. When autolearn mode is active, each time the device is started, it detects the parameters of the communication with the weighing terminal and analyses the structure of the data frames it sends. -
Page 6: Embedded User Menu
Embedded User Menu The button used to operate the menu is located on the controller board inside the display housing and marked B1. To access, unscrew the two philips head screws and slide out the controller board drawer. Once you have finished the configuration, push the drawer back, making sure that the seal is not compromised. -
Page 7: Factory Default
"Saved" appears). Exiting the "proto" option happens automatically after 30 seconds of user inactivity. “custm” option allows you to select the display communication protocol to work with the weighing terminals of the selected clients. These protocols have special, custom settings needed for the given client. -
Page 8: Connecting The Display To A Computer For Configuration Purposes
RS232. When using RS232, connect to the port of the computer as shown in fig. 3. See “Remote Display Connections” for location of the RA and RK connections. BT-470 Select “B-TEK Serial String” then Set Port settings can be changed under Basic. If using ethernet to transmit your serial string, go to Custom settings to set your indicator’s IP address. -
Page 9: Web Panel Configuration Method
In the web browser, network settings can be modified, password can be changed (not recommended), Protocols can be selected, Status information, Update firmware, and factory default the display. Note: The BT-470 works best with a Google Chrome browser. Other types might not connect correctly. Page | 9... -
Page 10: Remote Display Connections
Remote Display Connections NOTICE! The controller board should only be accessed when the power supply is disconnected. Take special care when doing this because of the danger of electric shock. Interface / Connector Notes Function marking RS232 RXD line of the RS232 interface. The line should be connected to the weighing terminal TXD output GND line of the RS232 interface 0/20mA CL line of the current loop. -
Page 11: Replacement Part Item Numbers
Replacement Part Item Numbers Part Description Numbers 841-100040 BT-470 4.7" LED ARRAY REMOTE DISPLAY w/VISOR, 3" POLE MNT BRACKETS, & ANNUNCIATORS 841-100041 BT-470 4.7" LED ARRAY REMOTE DISPLAY w/ ANNUNCIATORS 841-500074 BT-470 4.7" VISOR 841-500075 BT-470 4.7" POLE MOUNT KIT 841-500076 2"...
