600
- IMPORTANT NOTICE -
RESIDENTIAL HOME USE ONLY. Not intended for public areas
such as schools, churches, nurseries, day cares or parks
Parts missing or damaged?
Need assistance with assembly?
Contact Us First!
Please send your request to our central customer
service email: contact@spimbey.com
One of our customer service agents will reply to
you within 24 hours

Advertisement

loading
Need help?

Need help?

Do you have a question about the Play Deck XXL and is the answer not in the manual?

Questions and answers

Bridget Meyer
March 5, 2025

How many boxes can I expect to have for the swing set model number 2004

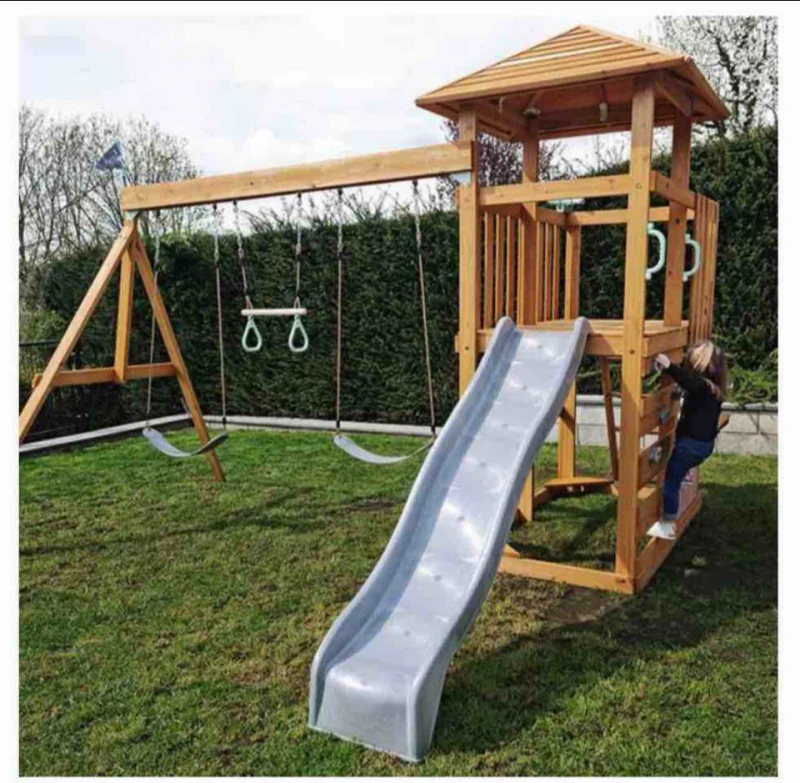

User image 67c86cf751457

Subscribe to Our Youtube Channel

Summary of Contents for Spimbey Play Deck XXL

  • Page 1 Parts missing or damaged? Need assistance with assembly? Contact Us First! Please send your request to our central customer service email: contact@spimbey.com One of our customer service agents will reply to you within 24 hours...
  • Page 2 This page intentionally left blank...
  • Page 3: Assembly And Installation Instructions

    REV: 3-13-2022 Play Deck XXL Assembly and Installation Instructions Intended for children f rom ages 3 to 10 Model: 2000 WARNING: ASSEMBLY BY AN ADULT RETAIN (BOXES: 1000, 1001, Accessory Box, Slide) THESE INSTRUCTIONS Spimba Inc. 108 Patriot Drive, Suite A,...
  • Page 4: Warnings And Safe Play Instructions

    Warnings and Safe Play Instructions CONTINUOUS ADULT SUPERVISION REQUIRED. Most serious injuries and deaths on playground equipment have occurred while children were unsupervised! Our products are designed to meet mandatory and voluntary safety standards. Complying with all warnings and recommendations in these instructions will reduce the risk of serious or fatal injury to children using this play system.
  • Page 5: Instructions For Proper Maintenance

    Instructions for Proper Maintenance Your Spimbey Playset is designed and constructed of quality materials with your child's safety in mind. As with all outdoor products used by children, it will weather and wear. To maximize the enjoyment, safety and life of your Play Set, it is important that you, the owner, properly maintain it.
  • Page 6 Playground Surfacing Materials Section 4 of the consumer product safety commission’s outdoor home playground safety handbook Select Protective Surfacing One of the most important things you can do to reduce the likelihood of serious head injuries is to install shock-protective surfacing under and around your play equipment.
  • Page 7: Assembly Information

    Assembly Information Tools Required Robertson Drive Tape Measure Open End Wrench 8’ (2.4m) Step Ladder (Included) Carpenters Level 7/16" (11mm) & 1/2" (13mm) Safety Glasses Ratchet with extension Carpenters Square Adjustable Wrench Adult Helpers Claw Hammer 7/16" (11mm) & 1/2" (13mm) Drill Bits (up to 3/8”...
  • Page 8 About our wood Spimbey Play Systems uses only premium playset lumber, ensuring the safest product for your children’s use. Although we take great care in selecting the best quality lumber available, wood is still a product of nature and susceptible to weathering which can change the appearance of your set.
  • Page 9 OCCUPANTS WEIGHT LIMITS TOTAL WEIGHT FALL HEIGHT...
  • Page 14 WOOD IDENTIFICATION...
  • Page 15 WOOD IDENTIFICATION...
  • Page 16: Hardware Listing

    HARDWARE LISTING (Fasteners are shown in full size)
  • Page 17: Accessory Listing

    ACCESSORY LISTING X4 - Assist Handle with Screws (SS-10009) X1 - Slide (SLD-GRAY-1) X1 - Telescope withs Screws (SS-10008) X2 - Only (2) tarps included: X1 - Flag with Screws (370) Table Tarp Blue/Gray (360) Table Tarp Pink/Pink (361) Table Tarp Green/Green (362) Table Tarp Yellow/Blue (363) X5 - Rockwall Rocks with Fasteners (SS-10010) X1 - Only (1) tarps included:...
  • Page 18 DECK WALL 1 DECK WALL 2 Parts Required: 100 X 5 105 X 2 1. Layout parts and assemble using only hex bolts first as shown. 101 X 1 108 X 1 2. After walls are square install #8 wood screws. 102 X 2 109 X 1...
  • Page 19 STAND WALLS 1 & 2 1. Two people required to safely stand walls. Parts Required: 2. ORIENT YOUR PLAYSET AT THIS TIME. SEE ACTIVITIES ABOVE FOR LOCATION. 104 X 2 3. Attach one end of each rail, then swing up to attach to opposite wall.
  • Page 20 STAND WALLS 1 & 2 1. Two people required to safely stand walls. Parts Required: 2. Attach one end of each rail, using only hex bolts. 104 X 5 3. Note: the wood screws will not be installed in the small holes at this step.
  • Page 21 LEVEL, SQUARE WALLS #8 x 3.00 Wood Screw At (20) holes use 3" screws going into the 3.38" uprights 21,00” 21,00” Flush at ends Parts Required: 1. IMPORTANT - FIRST Square and level all boards and walls. 2. Then secure with wood screws as shown. 113 X 1 3.
  • Page 22 DECK JOISTS Parts Required: 1. Attach two deck joints as shown. 107 X 2...
  • Page 23 DECK BRACES Parts Required: 1. Attach angle braces as shown 112 X 8...
  • Page 24 DECK & ROCKWALL BOARDS Parts Required: 1. IMPORTANT - FIRST Layout all deck boards as shown. 106 X 9 2. Then secure with wood screws as shown. 110 X 19 3. Attach rockwall boards as shown.
  • Page 25 LADDER #8 x 2.50 Wood Screw 5/16 Flat Washer Center on rail 5/16 Lock Washer 5/16 T-Nut 5/16 x 1.50 Hex Bolt 4.500 [114.3] Flush #8 x 2.50 Wood Screw Parts Required: 1. Layout and attach parts as shown 115 X 4 117 X 1 116 X 1 118 X 1...
  • Page 26 STAND WALLS 1 & 2 5/16 T-Nut 5/16 Flat Washer 5/16 x 1.75 Hex Bolt 5/16 Lock Washer Center ladder in opening #8 x 2.50 Wood Screw Flush Mark center of hole and drill a 3/8" hole through rail 2 - Holes 5/16 T-Nut 5/16 Flat Washer...
  • Page 27 WALL BALUSTERS LADDER 3.500 [88.9] 3.500 [88.9] 111 111 All spaces All spaces between between balusters is 3.00" balusters is 3.00" Some boards on this wall on this wall removed for clarity 3.000 [76.2] 3.000 [76.2] 111 111 3.500 [88.9] 3.500 [88.9] ROCKWALL #8 x 1.38...
  • Page 28 TABLE Flush at top Center braces on holes #8 x 2.50 Wood Screw #8 x 1.75 Wood Screw Flush at ends and seam Flush to upright 2 - places Parts Required: 122 X 1 124 X 4 1. Locate and install parts as shown. 125 X 1...
  • Page 29 BENCH Parts Required: 1. Assemble (4) leg assemblies. 120 X 8...
  • Page 30 BENCH 1. Attach bench seats to leg assemblies as shown. Parts Required: 302 Bracket X 8 Leg Assemblies X4 121 X4...
  • Page 31 BENCH Parts Required: 1. Attach bench seats to leg assemblies as shown.
  • Page 32 BENCH Parts Required: 1. Reinforce seats and legs as shown.
  • Page 33 TARPS Parts Required: 1. Attach the tarps as shown. Two people recommended. Table Tarp with Snaps X2 Over-Table Tarp with Snaps...
  • Page 34 ACCESSORIES at rockwall and ladder. Attach using screws in handle bag Parts Required: 1. Attach slide block as shown. Part 114 X 1 2. Locate and install slide, plates and accessories as shown.
  • Page 35 SWING BEAM IF YOU HAVE THE OPTIONAL SWING BEAM, ATTACH AS SHOWN Parts Required: 1. Refer to the Swing Beam instructions to assemble the A-frame and beams. 1002 Swing Beam Kit X 1...
  • Page 36 SWING BEAM & ANCHORS Pre-drill hole using an 1/8" drill bit 1.50" deep 5/16 x 4.25 Hex Bolt IMPORTANT: ENSURE THREADS ARE FLUSH OR EXTEND PAST LOCK NUT Note: Fasteners are in the swing beam kit. Parts Required: 1. Locate the swing beam assembly to the upright and attach as shown. Swing Beam Assembly 2.
  • Page 37 SWINGS ATTACHED 8.00 [20.3] applies to two-person glider and Belt Swing Parts Required: 1. Attach swings as shown to minimum heights shown. Swings X 2 Trapeze X 1...
  • Page 38: Warranty

    Spimba Inc.(dba. SPIMBEY) guarantees its products meet applicable standards only when used as directed under normal operation or service. Spimba Inc.(dba. SPIMBEY) warrants its products, to the Customer, to be free from defects in material and workmanship under normal and proper usage.
