Side Burner Owner's Manual
Safety and Installation Instructions
Side Burner Installation
This gas side burner must be installed in accordance with all local codes and is for outdoor use only.
If installation is planned in an area with no local codes, the gas side burner must be installed in accord with the National Fuel Gas Code ANSI
Z223.1 and storage and handling of liquefied petroleum gases, ANSI/NFPA 58 or CSA B149.1 natural gas and propane installation code.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some by-products which are on the list of substances which are known by the State of California to
cause cancer or reproductive harm. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to these substances, always operate the unit according to the use and care manual, ensuring you provide good ventilation when
cooking with gas.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, and void the warranty.
Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
Clearances
Combustible Construction
Minimum horizontal clearance from sides and back of the unit to adjacent vertical combustible construction extending above top of unit, 24 inches
from side and 24 inches from back. Do not locate under any overhead combustible construction.
Non-Combustible Construction
Sides of the side burner can be 0" from non-combustible wall, below the cooking surface.
Built-in Installation
For non-combustible cabinet enclosure installation only. Follow the cut-out dimensions as shown. ALL outdoor kitchen cabinets MUST include
ventilation. We recommend 12 square inches of opening for each (running) 4 feet of counter top. See Item # RVNT1 for approved vents.
Natural Gas Connection:
Appliance pressure
4" W.C.
Inlet pressure
5" – 14" W.C.
RCS side burners have 3/8" male flare connection
www.RCSGasGrills.com

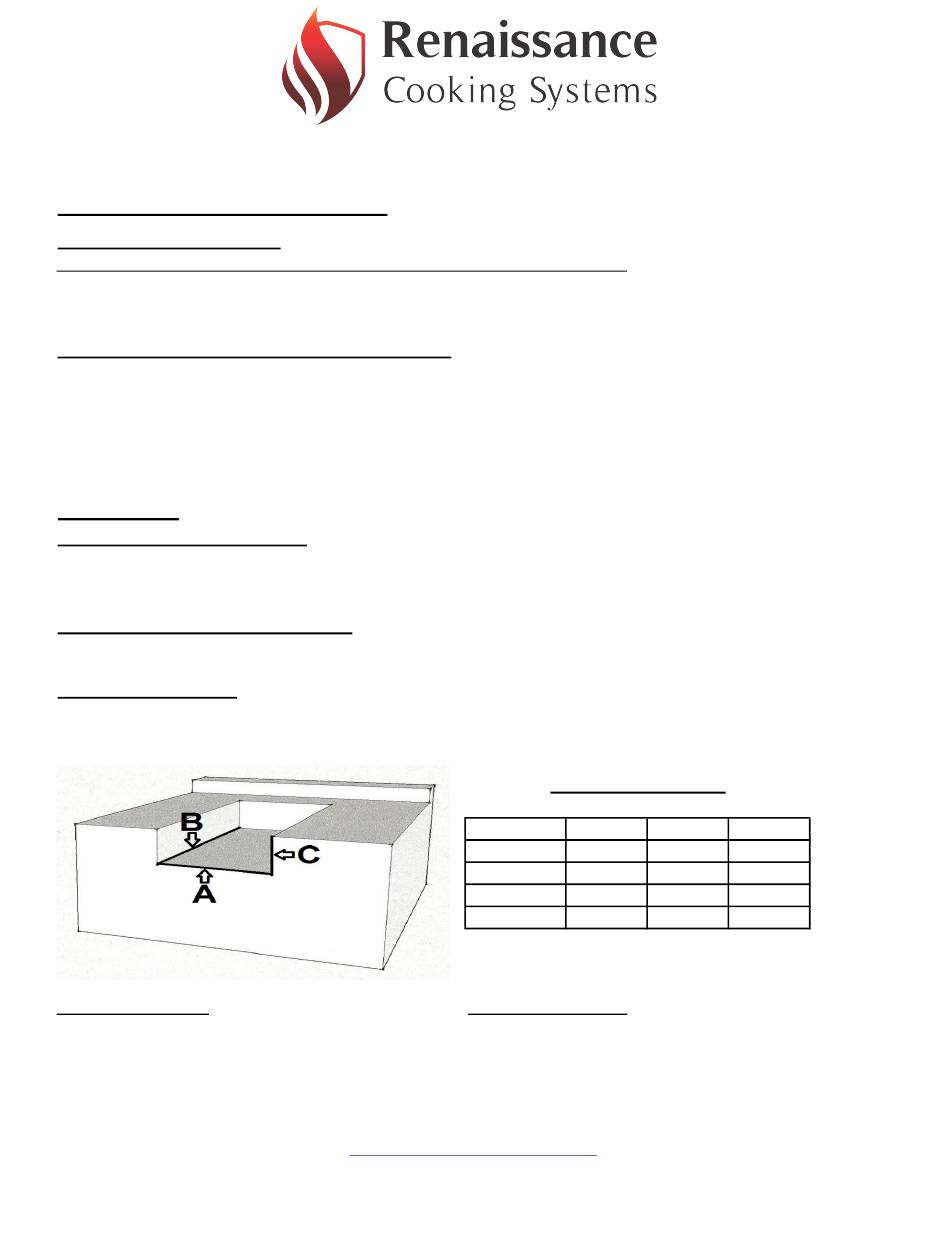

Cut Out Dimensions
A - Width
Model #
RSB1
8 1/2"
10 3/4"
RJCSSB
10 3/4"
RJCSSBL
12"
RDB1
12"
RDB1EL
Propane Gas Connection:
Appliance pressure
10" W.C.
Inlet pressure
11" – 14" W.C.
B - Depth
C - Height
15 1/2"
2"
21"
8"
21"
8"
19"
8"
19"
8"
