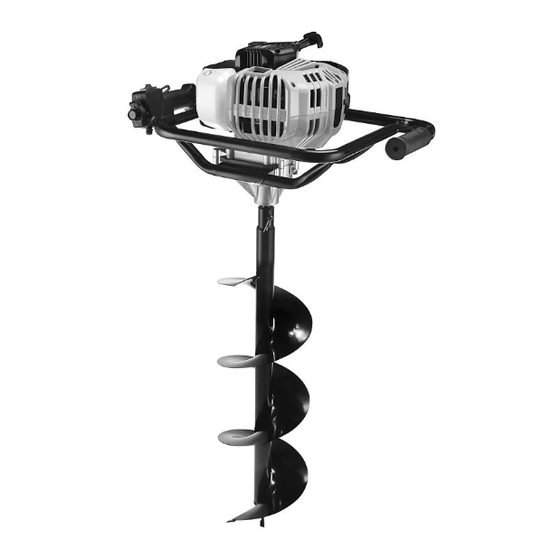

- Page 1 52CC PETROL GROUND AUGER CT2293 OPERATION MANUAL Please read this manual carefully. It contains important safety information. Cannon Tools Limited Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
- Page 2 EC DECLARATION OF CONFORMITY We CANNON TOOLS LTD 20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K. Declare that the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by In case of alteration of the machine, not agreed upon by us, this declaration will lose its validity.
-
Page 3: Specification
1.SPECIFICATION Model：CT2293 Engine Type: 2 stroke, air cooled, single cylinder Displacement: 52cc Max. engine power: 1.45kW Max. Engine speed: 8500/min Fuel tank: 1.2L Specified drill bit diameter: 100/150/200mm Specified drill bit length: 80cm Drill bit rotation speed at maximum allowed engine speed: 240/min Rotation direction of output shaft: counter-clockwise Engine speed at maximum power: 7500min Recommended maximum engine speed: 8500/min... -
Page 4: Safety Instructions
2. SAFETY INSTRUCTIONS THIS MACHINE MAY CAUSE SERIOUS INJURIES. Read the instructions carefully for handling, preparing, maintaining, starting and stopping the machine. Learn more about all the controls and proper use of the machine. – WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. - Page 5 running engine or when it's hot. Do not inhale fuel fumes as they are toxic. – Do not attempt to repair the machine unless you are qualified to do so. – Do not use the machine with a damaged or excessively worn cutting device. –...
- Page 6 – Keep handles dry, clean and free from oil and grease. – Be concentrated when using the tool. Look at what you do, make sense and do not use the tool when you are tired. – Place the equipment in a well-lit area on a flat, stable, dry and well-ventilated surface, away from flammable materials and with plenty of space for sparking and sharpening waste.
- Page 7 – Do not smoke. – Never refuel inside a room. – Never store the tool and the fuel tray indoors where there is a naked flame, such as near a water heater. – If fuel has spilled, do not attempt to start the machine, but rather move it away from the spill before starting to use it.
-
Page 8: Technical Description
3. TECHNICAL DESCRIPTION 1. Drill rod 2. Drill rod 3. Drill rod 4. Trigger 5. Safety button 6. Grab handle 7. ON/OFF switch 8. Handle 9. Motor 10. Recoil 11. Fuel tank 4. FILLING THE FUEL TANK WARNING: When filling the tank: –... - Page 9 Mixing – Prepare the mixture in a clean and empty container. – Pour the oil into the container. – Pour the fuel into the tank. Stir the mixture long enough (more than one minute) to get a proper blending. Filling the fuel tank –...
- Page 10 5. USE Drill rod assembly (See fig .1) – Place the machine body on a flat and stable location. – Remove the clip and pin on the drill rod. – Install the rod and align the holes to be able to connect the two sets. –...
- Page 11 – Gradually increase the speed by pressing and holding the safety switch and then pulling the acceleration trigger. Fig.4 Exert some downward force. (Fig. 4) – When the drill rod has penetrated 10 cm into the ground, grasp the frame strongly and increase the effort downwards.
-
Page 12: Maintenance And Storage
6. MAINTENANCE AND STORAGE Maintenance Service your tool regularly. This shall keep your tool in good working condition and extend its service life. Do not use abrasive and corrosive agents to clean the tool. These types of products damage your tool. Do not repair it yourself. - Page 13 7. DISPOSAL At the end of the machine's working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area. In all circumstances: Do not dispose of this tool with domestic waste.
-
Page 14: Exploded View
9. EXPLODED VIEW... - Page 15 Engine Name Engine gear box plate cushion 6 screw M6*20 rubber handle cover earth auger frame screw M8*20 switch Clutch shell Circlip 42 bearing R12 gear box cover 1 clutch shell gear shaft bearing R10 Circlip 18 big gear ring 5*12 small gear shaft ring 20 gear...
- Page 16 CANNON TOOLS LTD Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K. Made in China...
