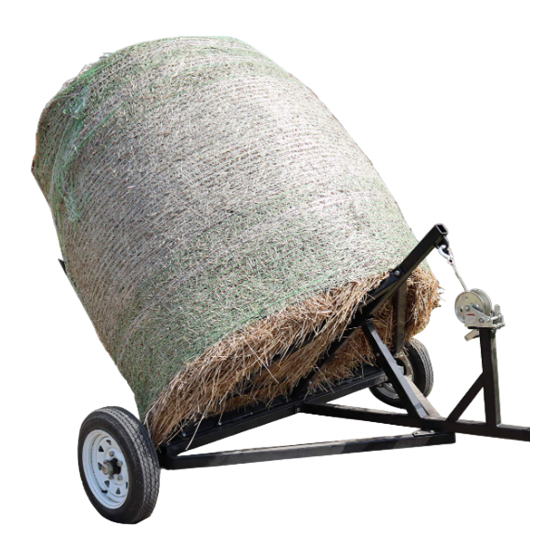

- Page 1 Adjustable Bale Mover OWNER’S MANUAL WARNING: Carefully read and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Model # ATV-45ABM 09202021...
-
Page 2: Intended Use
Thank you very much for choosing this product! For future reference, please complete the owner’s record below: Model: ____ATV-45ABM_____ Purchase Date: _______________ Save the receipt, the warranty, and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. -
Page 3: Work Area
SAVE THESE INSTRUCTIONS WORK AREA • Keep work area clean, free of clutter, and well lit. Cluttered and dark work areas can cause accidents. • Keep children and bystanders away while operating a bale mover. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. -
Page 4: Operation
• Distribute the load evenly. Uneven loads may cause the bale mover to tip, resulting in personal injury to the operator or others. • Use the bale mover on flat and level surfaces capable of supporting the bale mover and its maximum load. -
Page 5: Diagram & Parts List
DIAGRAM & PARTS LIST Part# Description Qty. Part# Description Qty. HITCHBALL COUPLER M12X30 BOLT CONNECTOR M12X80 BOLT REAR FRAME M12X120 BOLT WINCH M12X90 BOLT TIRE FRAME M12X65 BOLT BEAM L PIN FORK B PIN TIRE FIX PLATE ROTATE AXLE TIRE M12X100 BOLT FORK FRAME L PIN... -
Page 6: Warranty
WARRANTY One-year limited parts warranty. PO BOX 155 Miltona, MN 56354 Made in China Page of 6...
