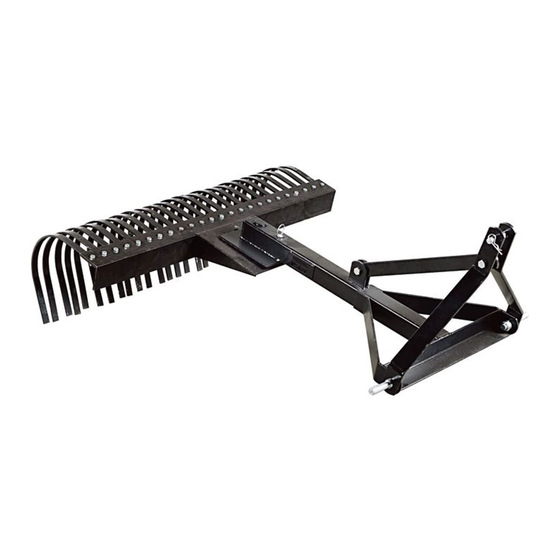

Field Tuff FTF-60LSR3PT Owner's Manual

Landscape rake
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

5' 3PT Landscape Rake
OWNER'S MANUAL
WARNING:
Carefully read and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
-MODEL #
FTF-60LSR3PT–
04202018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTF-60LSR3PT and is the answer not in the manual?

Questions and answers

Related Manuals for Field Tuff FTF-60LSR3PT

Summary of Contents for Field Tuff FTF-60LSR3PT

  • Page 1 5’ 3PT Landscape Rake OWNER’S MANUAL WARNING: Carefully read and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. -MODEL # FTF-60LSR3PT– 04202018...

  • Page 2: Technical Specifications

    Thank you very much for choosing this product! For future reference, please complete the owner’s record below: Model: Purchase Date: _______________ Save the receipt, the warranty, and these instructions. It is important that you read the entire manual to become familiar with this product before you begin using it. This product is designed for certain applications only.

  • Page 3: Work Area

    SAVE THESE INSTRUCTIONS WORK AREA • Keep work area clean, free of clutter, and well-lit. Cluttered and dark work areas can cause accidents. • Keep children and bystanders away while operating the landscape rake. Distractions can cause you to lose control, so visitors should remain at a safe distance from the work area. •...
  • Page 4 ASSEMBLY Step #1: Assemble the two side Tine Assembly Plates(#3 & #4) to Rotating base (#1), using four Hex Bolts M10*30 (#15), four Hex Lock Nuts M10 (#21), four Hex Bolts M10*20 (#16) and four Spring washers (#25) and four Washers Ø 10 (#26). Step #2: Attach the thirty Tines (#9) to the Tine Assembly Plates (#3 &...
  • Page 5 Step #3: Assemble the Hanging beam (#5) to the Connect component (#2), using two Hex Bolts M10*30 (#15),and two Hex Lock Nuts M10 (#21). Step #4: Assemble two Inclined struts A (#6) and two Suspension arms (#7) to the Hanging beam (#5) and Connect component (#2), using one Hex Bolt M16*90 (#19), two Threaded Pins (#11) and three Hex Lock Nuts M16 (#23).

  • Page 6: Maintenance

    Step #6: Assemble Connect component (#2) to the Rotating base (#1), using one Drilling Bolt M24 (#20), One Hexagon Slotted Nut M24 (#24), one Cotter Ø 4*50 (#28), one Pin (#13) and one R Pin (#27). MAINTENANCE • Maintain your landscape rake. It is recommended that the general condition of any landscape rake be examined before it is used.

  • Page 7: Parts List

    PARTS LIST: Part # Description Qty. Part # Description Qty. Rotating base Hex Bolts M10*30 Connect component Hex Bolts M10*20 Left Tine Assembly Support Hex Bolt M12*90 Right Tine Assembly Support Hex Bolts M12*45 Hanging Beam Hex Bolt M16*90 Inclined Strut A Drilling Bolt M24 Suspension arm Hex Lock Nuts M10...
