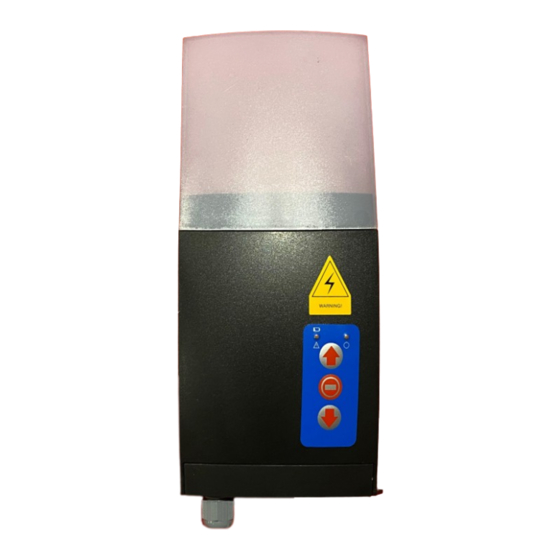

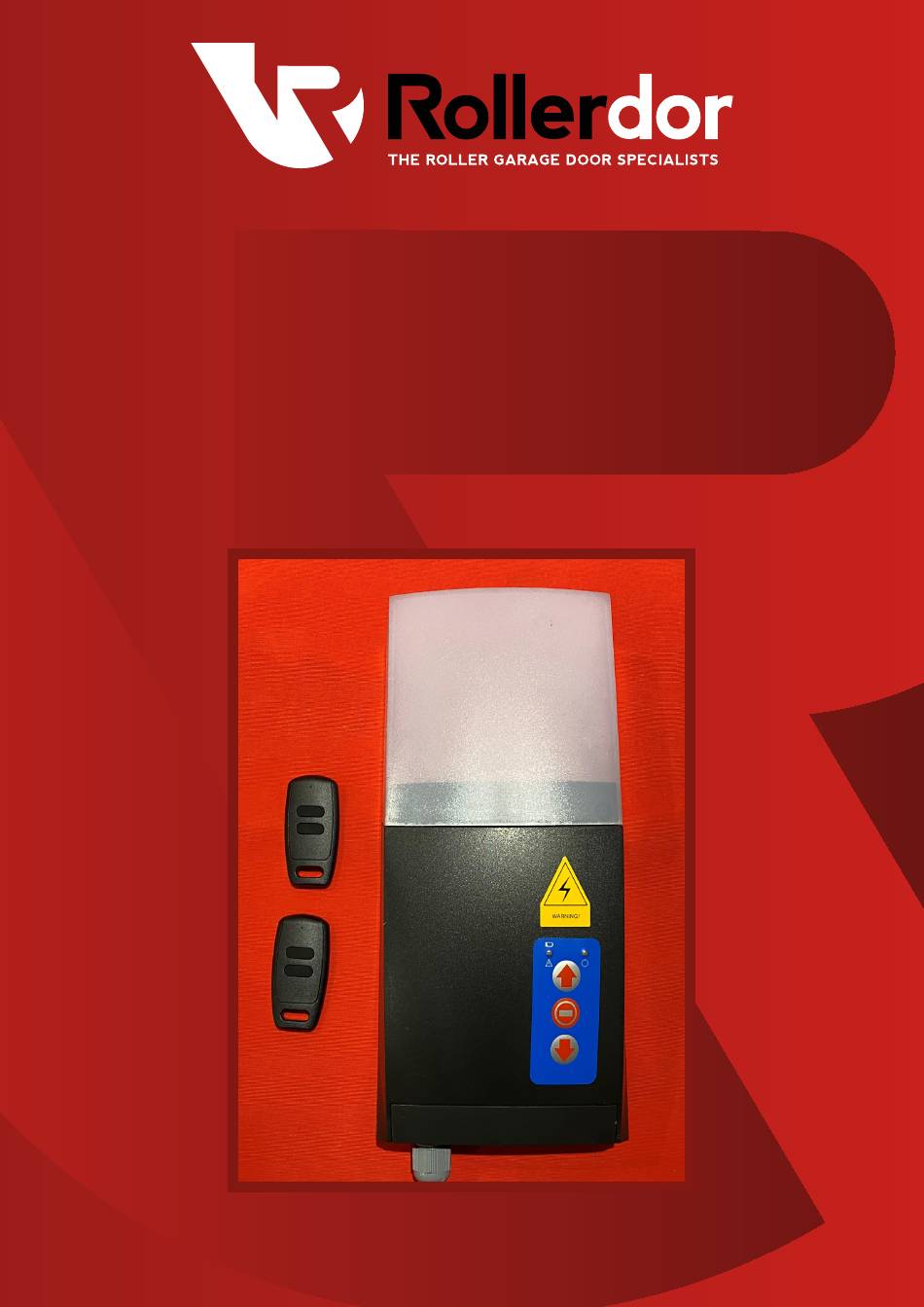

- Page 1 Rollerdor RD20X2ELL Control Box, Edition 2022/1 RD20X2ELL Control Box Installation Guide for Roller Garage Doors Edition 2022/1...
- Page 2 fig.1 fig.2 Pictures are for illustration purposes only, connector blocks are not provided and further fittings may be required.
- Page 3 Rollerdor RD20X2ELL Control Box, Edition 2022/1 1. INSTALLING RECEIVER BOX (SAFETY EDGE) Remove white plastic light cover by squeezing in each side and lifting away (fig.1). Remove small plastic cover at the bottom of the unit to reveal screws and then remove all 4 screws from cover (fig.1)
-
Page 4: Electrical Connections
2. ELECTRICAL CONNECTIONS Pictures are for illustration purposes only, connector blocks are not provided and further fittings may be required. - Page 5 Rollerdor RD20X2ELL Control Box, Edition 2022/1 3. SETTING UP WIRELESS SAFETY EDGE KIT (OPTICAL EDGE) The control box is supplied in Hold to Run operation for open and close, if the limits of the motor have not been set then please set them now using the PROG (P1/UP) &...
- Page 6 fig.10 White button CHECKING CONTROL BOX Control box Dip Switches: check dip switches on main board (fig.11) dip switch number 1 & 2 should be on and number 3 off. Inside the control box is a separate circuit board which is plugged into the main circuit board (fig.12) check the RED LED L3 if this is intermittently flashing then the base rail unit has been paired, move onto Programming Transmitter’s section, if LED 3 is flashing then continue to Programming Base Rail section.
-
Page 7: Programming Transmitter's
Rollerdor RD20X2ELL Control Box, Edition 2022/1 PROGRAMMING TRANSMITTER’S Programming Transmitters 2 Channel: Press P1 (PROG) button two times, on last press HOLD causing the buzzer to emit a continuous sound. Whilst P1 (PROG) is still pressed, press the top button on the transmitter, you will hear a faster beeping sound. - Page 8 WIRELESS KEY PAD INSTALLATION Undo and remove the small screw at the bottom and lift off the front cover. Using the back-plate as a template, mark the positions of two suitable fixing holes onto the wall then secure the back-plate to the wall using the plugs and fixing screws provided.
- Page 9 Rollerdor RD20X2ELL Control Box, Edition 2022/1 SAFETY EDGE EXCLUSION ZONE The curtain is supplied with stops at each end to stop an uneven floor having an effect (fig.13) but if the curtain reopens having hit the floor the safety edge exclusion should be set to ‘turn off’ the edge 50mm before it hits the floor.
-
Page 10: Holiday Mode
HOLIDAY MODE The “Holiday mode” allows the user to temporarily lock the front cover buttons. Note: when the mode is activated, wireless and wired input commands are still enabled. ACTIVATION Press the STOP button in the front cover and keep it pressed for 5 seconds. - Page 11 Rollerdor RD20X2ELL Control Box, Edition 2022/1 Press P1 eight times and keep it pressed. keep it pressed The buzzer emits a continuous sound. ACTIVATE THE Activate the shock sensor. SHOCK SENSOR Once the memorisation is successfully completed, the buzzer emits a fast...
- Page 12 LED IN THE FRONT COVER ON: safety alarm activate (see the specific alarm). OFF: normal functioning. 1 flash - pause: keypad locked (holiday mode). Flashing slowly: low batteries in the bottom slat transmitter (TCSP) Led ON: The control unit is powered. RADIO CARD (MASTER) Flashing: normal functioning.
- Page 13 10 & 12 Jarrold Way Bowthorpe Employment Area Norwich Norfolk NR5 9JD +44 (0)1603 743215 sales@rollerdor.net www.rollerdor.net Company Registration Number. 10676267 Registered Office Address: Rollerdor Ltd, Bankside 300 Peachman Way, Broadland Business Park, Norwich, Norfolk, United Kingdom, NR7 0LB Edition 2022/1...
