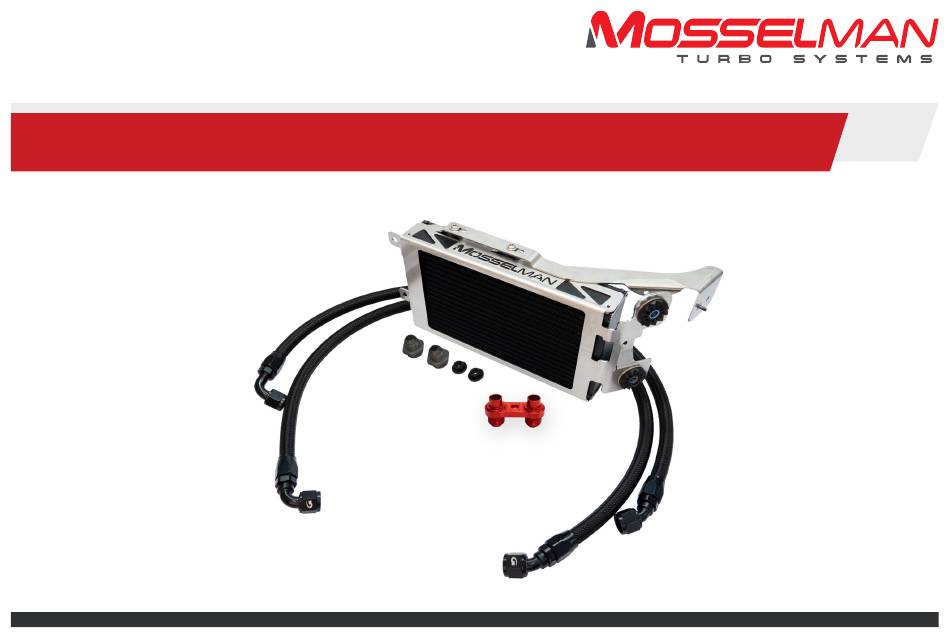

- Page 1 Single Oil Cooler Kit Installation Manual E8x and E9x Version: 100222...
- Page 2 Installation manual for BWM models: 135i N54 135i N55 335i N54 335i N55 The images/examples in this installation manual are from a BMW 3-Series E9x. The actual steps for a BMW 1-Series E8x can be slightly different.
-
Page 3: Box Contents
• 1x Oil adapter AN8 • 1x Hose Kit • Installation kit We highly recommend adding the Mosselman N54 Oil Thermostat for optimal cooling results. Before starting the installation of this product, please read this installation manual carefully to prevent possible damage or injuries. - Page 4 Table of Contents 1. Preparing for installation 2. Installation...
-
Page 5: Preparing For Installation
Once the installation is finished, this makes it easy to confirm visually that all removed parts made their way back into the car. Do not make any changes or modifications to Mosselman Oil Cooler Kit. The engine can get extremely hot during and after it has been used. Allow the engine to cool down before beginning installation. - Page 6 Installation 2.1 Installation environment. • Find a suitable place for installation (preferably inside). • Open the hood. • The engine can get extremely hot during and after it has been used. Make sure not to touch the engine until it is completely cool.
- Page 7 Installation 2.2 Remove the wheel. • Lift the car properly and remove the wheel on the right side. • Remove the covers located in fig. 2.1.
- Page 8 Installation 2.3 Optional: Removing the floor panel • Removing the floor panel is optional, but it will make the installation easier. Oil can leak into the engine bay during the installation of the oil cooler and thermostat. Removing the floor panel makes it easier to clean it afterward.
- Page 9 Installation 2.4 Remove the air duct. • Remove the air duct located in fig. 4.1.
- Page 10 Installation 2.5 Remove the oil lines • Open the screw cap from the coolant tank, located in fig. 5.1, to release the pressure. Caution: Be careful opening the screw cap. Do not open the coolant tank if the engine is still hot! •...
- Page 11 Installation 2.6 Remove the oil lines • Remove the bolt located in fig. 6.2 and remove the oil lines completely from the engine bay. Beware: oil may leak out from the oil lines, use paper towels to prevent oil from leaking into the engine bay.
- Page 12 Installation 2.7 Remove the oil cooler • Remove the bolts, located in fig. 7.1, and remove the oil cooler. • Remove the oil cooler air duct located in fig. 7.2.
- Page 13 • Remove the brake air duct located in fig. 8.1. 2.9. Optional: Remove the oil thermostat The Mosselman Oil Thermostat is optional, but highly recommend for optimal cooling results. Skip to step 2.11 if you are using the OEM thermostat.
- Page 14 Installation 2.10 Optional: Oil Thermostat • Remove the old rubber gasket from the housing. Clean the housing properly to be sure that there will be no dirt between the new gasket and the oil thermostat. • Install a new rubber gasket. 10.1 10.2...
- Page 15 2.11 Install the oil thermostat • Place the Mosselman oil thermostat on the housing and tighten the 3 bolts with 18Nm of torque (fig. 11.1). • Put new o-rings on the oil adapter and install it (fig. 11.2). Tighten the bolt with 19Nm of torque.
- Page 16 Installation 2.12 Oil Cooler • Install the oil line adapters on the oil cooler (fig. 12.1). Make sure that the aluminum ring is in place between the adapter and cooler. The brake air duct needs to be modified to make the new oil cooler fit into the car. •...
- Page 17 2.13 Oil Cooler • Install the brake air duct and oil cooler air duct (fig. 13.1). • Install the Mosselman Oil Cooler (fig. 13.2). - Use the nuts provided in the installation kit for locations 1 and 2. - Use the OEM screws for locations 3 and 4.
- Page 18 Installation 2.14 Oil Cooler • Connect the oil lines to the Mosselman oil cooler (fig. 14.1). Use the longest oil line (1140mm) for location 2. • Use the mounting bracket to install the Mosselman oil cooler (fig. 14.2). - Use the OEM bolt for location 1.
- Page 19 Installation 2.15 Connect the oil lines • Connect the oil lines to the Mosselman oil thermostat (fig. 15.1). 15.1 15.2...
- Page 20 Installation 2.16 Secure the oil lines • Secure the oil lines using the cable ties provided in the box. Make sure that they can’t reach hot or moving parts. 16.1...
- Page 21 • Start the engine and check for possible leaks. • Check the oil level (refill the oil if the level is too low). • Reassemble all the covers and/or other parts that have been removed for the installation. The Mosselman Oil Cooler Kit is installed. 17.1 17.2...
- Page 22 Notes...
- Page 24 Mosselman Turbo Systems Molenstraat 4 6732 BP, Harskamp The Netherlands +31 (0) 318 457832 info@mosselmanturbo.com www.mosselmanturbo.com /MosselmanTurboSystems @MosselmanTurbo /MosselmanTV...
