LG RP4 Simple Manual

ENGLISH
Specification
Power requirements
y Refer to the main label.
Power consumption
y Refer to the main label.
Dimensions (W x H x D): Approx. 247.5 mm x 514.0 mm x 247.5
mm
Bus Power Supply (USB): 5 V 0 500 mA
Amplifier (Total RMS Output power): 120 W RMS
Battery Life: Approx. 10 hours (Varies by volume level and audio
content.)
y This unit contains magnets which can be harmful to some
kind of object (Ex: Magnetic card, Pacemaker etc.).
y Internal lithium battery in the unit should not be replaced by
user because of danger of explosion if battery is incorrectly
replaced, and must be replaced with the same type battery
by expert.
y Do not leave the unit on an unstable place such as high
shelves. It may fall down because of the vibration of the sound.
CAUTION when using this product in environments of low
humidity.
- It may cause static electricity in environments of low
humidity.
- It is recommended to use this product after touching any
metal object which conducts electricity.
RP4.DNGAFLK_SIMPLE (Sheet)_MFL71841329.indd 1-2
POWER: This unit operates on a mains supply of
200 - 240 V ~ 50 / 60 Hz.
Wiring: This unit is supplied with a BS 1363 approved main plug.
When replacing the fuse, always use a fuse of the same rating
and approved to BS 1362. Never use this plug with the fuse
cover omitted. To obtain a replacement fuse cover contact your
dealer. If the type of plug supplied is not suitable for the mains
sockets in your home, then the plug should be removed and a
suitable type fitted. Please refer to the wiring instructions below:
Warning: A mains plug removed from the mains lead of this unit
must be destroyed. A mains plug with bared wires is hazardous
if inserted in a mains socket. Do not connect either wire to the
earth pin, marked with the letter E or with the earth symbol 6
or coloured green or green and yellow. If any other plug is fitted,
use same rating of fuse in the plug.
Important: The wires in this mains lead are coloured in
accordance with the following codes:
- BLUE: NEUTRAL, BROWN: LIVE - As the colours of the wires
in the mains lead of this unit may not correspond with the
coloured marking identifying the terminals in your plug, proceed
as follows: The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.

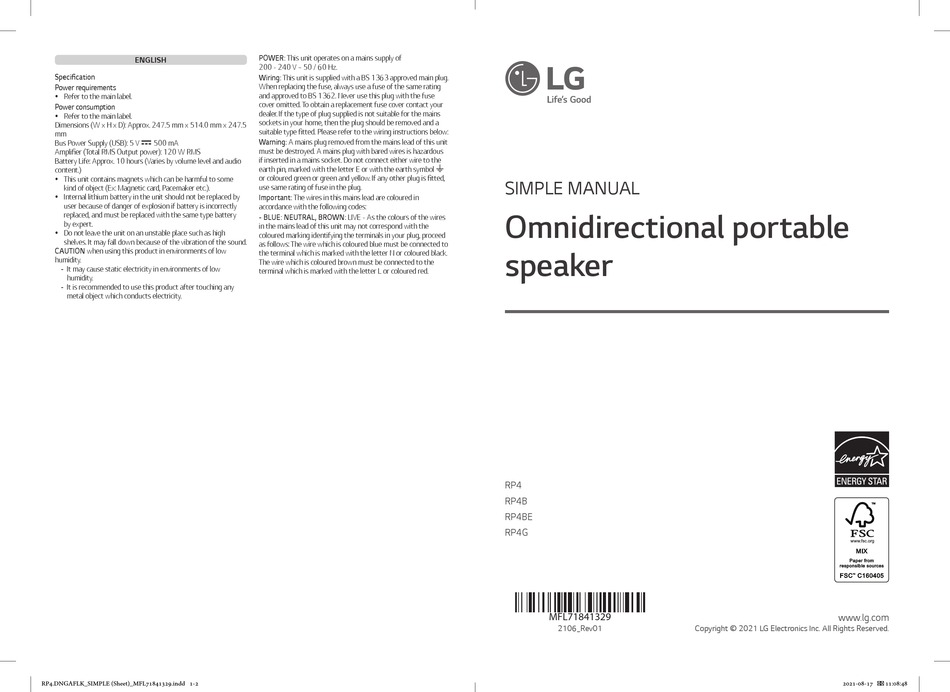

SIMPLE MANUAL
Omnidirectional portable
speaker
RP4
RP4B
RP4BE
RP4G
MFL71841329
2106_Rev01
www.lg.com
Copyright © 2021 LG Electronics Inc. All Rights Reserved.
2021-08-17 11:08:48
