Cedar Hot Tub Assembly, Installation &
Introduction:
Thank you for selecting a Zen Bathworks tub! Your hot
tub will provide many years of soaking enjoyment. Even
if you purchased your tub factory pre-assembled, or are
hiring someone else to assemble it for you, please read
and understand these instructions as they contain many
relevant sections. Having an understanding of how your
tub went together and works is important, and will
increase your ability to maintain your hot tub properly. If
you are assembling your tub from a kit, assembly will be
easier if you follow the correct sequence of steps and use
the proper tools. Please take the time to read the
instructions completely and carefully.
How wooden tubs hold water: The tub is
assembled dry. When saturated with water the dry
wood will swell significantly. As the wood expands,
all the joints compress tightly allowing the tub to
hold water, provided it was assembled properly.
Special note: It is important to keep the tub floor and
staves (The staves are the vertical wood parts that make
up the sides of the tub) stored in a dry place until
assembly time . If the tub gets wet prior to assembly, the
wood may swell to a larger size making assembly much
more difficult and encumbering the sealing of the tub.

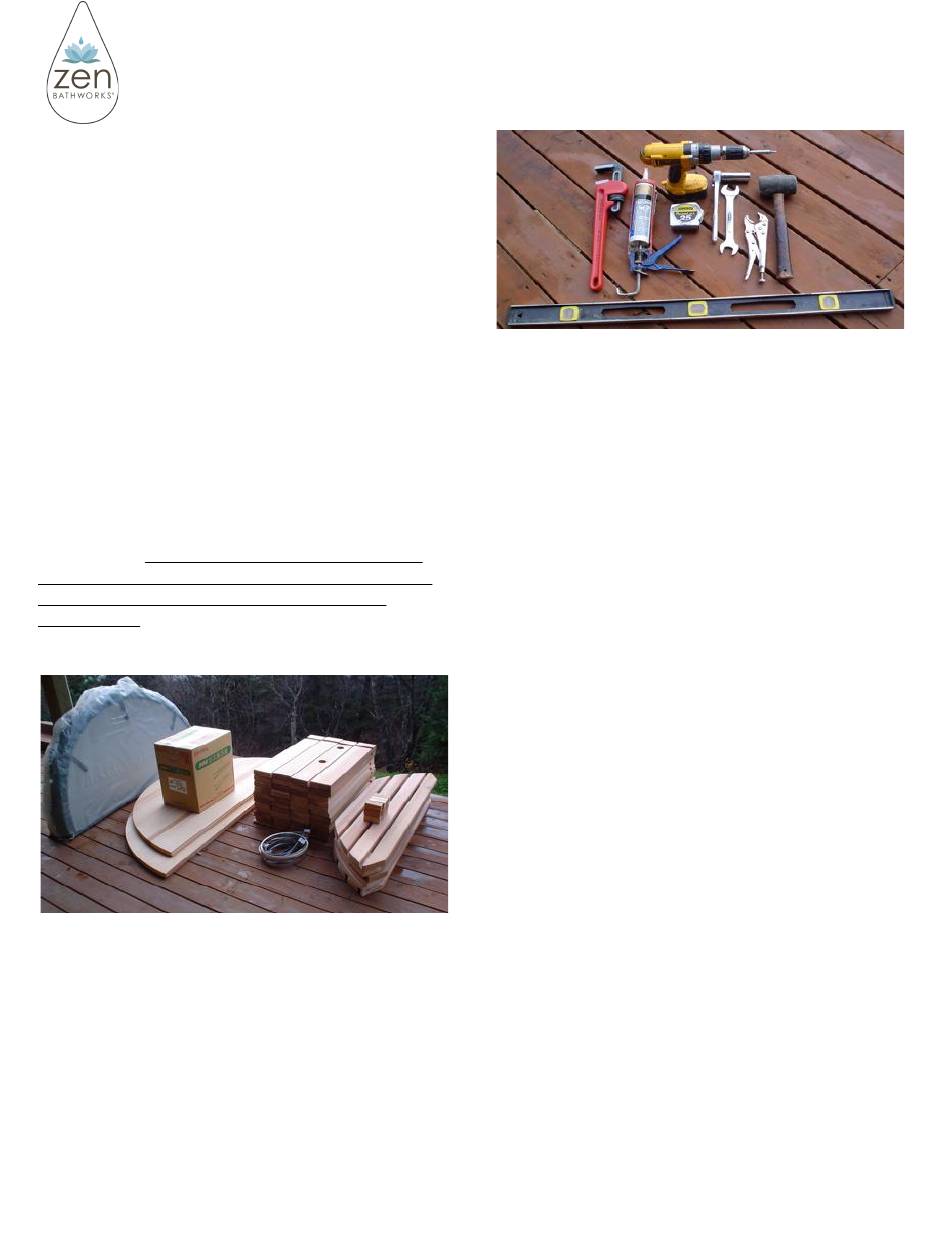

Figure 1.1: Left to Right: Cover, floor sections, staves,
retention bands, bench segments.
Section 1: Packing List
Locate the enclosed packing list to identify and confirm
that all items are included. A copy of the packing list is
inside the packaging. See Figure 1.1 to help identify the
major parts.
Section 2: Tools and Supplies Needed
A few basic tools and items are needed to complete the
assembly of your new tub. Gather what you will need
before you start.
Maintenance Instructions
1 of 16
Figure 2.1 tools required
✔ A large rubber mallet (handle the length of a normal
hammer, head the size of a soup can)
✔ Small tape measure
✔ Screw gun
✔ Torx® T25 bit for screw gun
✔ #2 Square drive bit for screw gun
✔ Carpenters' level (2' or longer)
✔ 15/16" open end, deep socket, or adjustable wrench
✔ Vise Grip pliers, channel locks, or large crescent
wrench
✔ Caulking gun or squeeze tube of clear silicone
✔ Medium sized pipe wrench
✔ 4" x 6" timbers for floor support - referred to as "chine
joists" in this manual
Section 3: Site Preparation
Before assembling your tub, prepare a suitable spot for it.
Hot tubs will weigh from 1500 to 8000 lbs. when full of
water - so a stable foundation is essential. Cedar tubs
should be installed outdoors. You must provide for good
drainage and a solid foundation .
Outdoor installation:
water from splashing, overflow, cleaning and draining
operations can be carried away from the site. If not,
debris will collect around the lower areas of your hot tub
causing wood deterioration over time. Remember, wood
lasts longest either fully submerged, or ventilated .
Prolonged dampness will cause wood rot over time and
should be avoided wherever possible.
Good drainage is vital so that
