ZEN Cedar Assembly Instructions Manual

Cedar Hot Tub Assembly Instructions
Introduction:
Thank you for selecting a Zen Bathworks tub! Your hot
tub will provide many years of soaking enjoyment.
Assembly will be easier if you follow the correct
sequence of steps and use the proper tools. ​ P lease take
the time to read the instructions completely and
carefully before starting the assembly process.
How wooden tubs hold water: ​ T he tub is
assembled dry. Because dry wood will swell a
significant amount when saturated with water, all
the joints compress tightly allowing the tub to hold
water.
Special note:​ ​ I t is important to keep the tub floor and
side staves stored in a dry place until assembly time​ . If
the tub gets wet prior to assembly, the wood may swell to
a larger size making assembly much more difficult and
slowing the sealing of the tub.

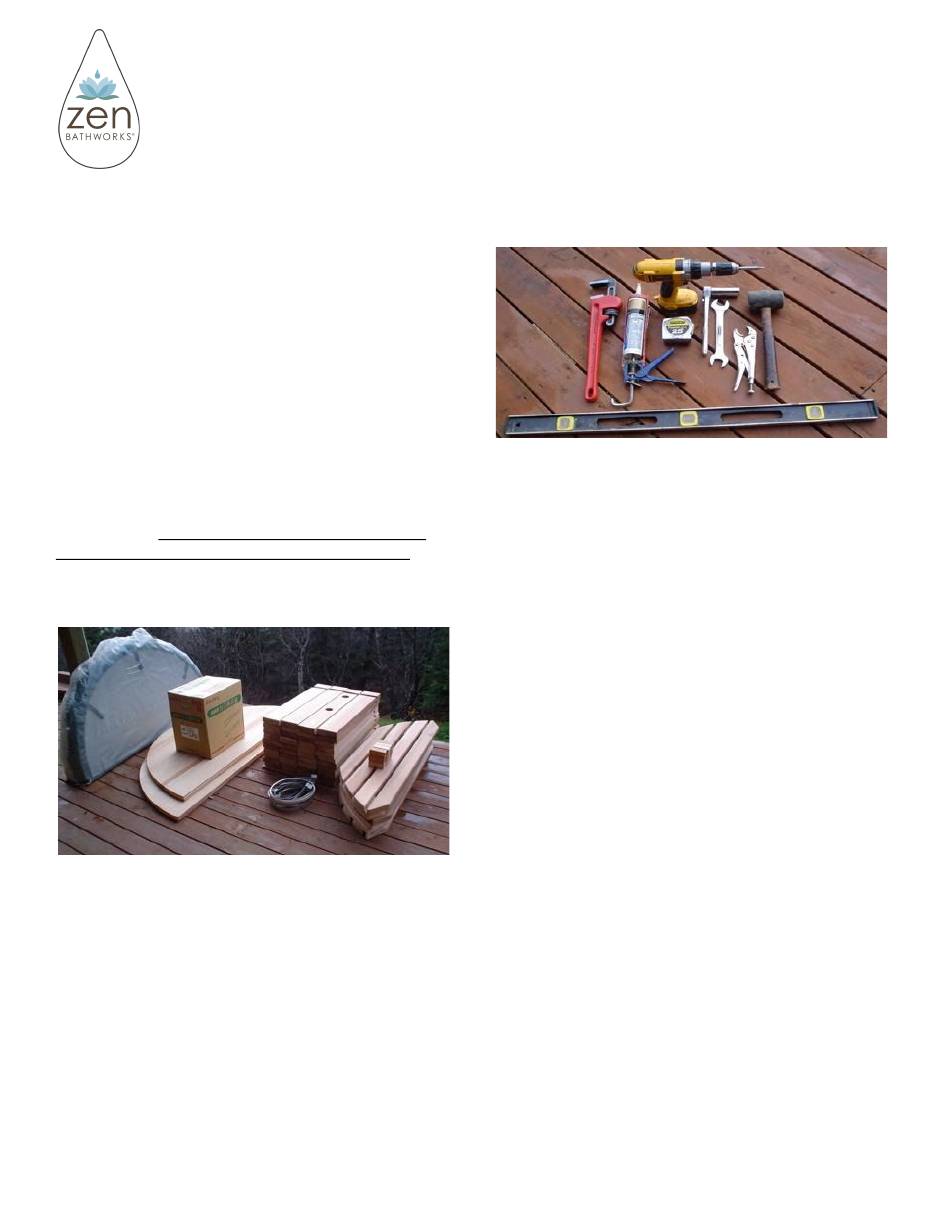

Figure 1.1: Cover, floor panels, staves, compression
straps, benches.
Section 1: Packing List
Locate the enclosed packing list to identify and confirm
that all items are included. A copy of the packing list is
inside the packaging. See Figure 1.1 to help identify the
major parts.
Section 2: Tools and Supplies Needed
A few basic tools and items are needed to complete the
assembly of your new tub. Gather what you will need
before you start.
REV: 2018.01.11
Figure 2.1 tools required
✔ A large rubber mallet (handle the length of a
normal hammer, head the size of a soup can)
✔ Small tape measure
✔ Screw gun
✔ #2 square drive and Philips bit for screw gun
✔ Carpenters' level (2' or longer)
✔ 15/16" open end, socket, or crescent wrench
✔ Vise Grip pliers
✔ Caulking gun or squeeze tube of clear silicone
✔ Medium sized pipe wrench
✔ 4" x 6" timbers for floor support - referred to as
"chine joists" in section 4
Section 3: Site Preparation
Before assembling your tub, prepare a suitable spot for it.
Hot tubs will weigh from 1500 to 8000 lbs. when full of
water - so a stable foundation is essential. Cedar tubs
should be installed outdoors. You must provide for good
drainage and a solid foundation.
Outdoor installation:​
water from splashing, overflow, cleaning and draining
operations can be carried away from the site.
There are four basic styles of foundation for your tub.
You may consider a concrete pad, a gravel pad, piers
made of concrete or treated wood, or a deck.
See Figures 3.1 through 3.4 for ideas.
Good drainage is vital so that
