MimicsLT - Gives you plug n play touchscreen and multimedia control interface for your Android
stick/box.
SOME USES:
Custom Android systems for automotive vehicles
•
Allows you to quickly evaluate the performance and functionality of your Android TV stick/box
•
with minimal setup and fuss.
Android Kiosk display systems
•
If touch support is not required device can be used as a 3.5mm resistive to USB multimedia
•
converter
1
Advertisement
Table of Contents
Related Manuals for Car Solutions MimicsLT
Summary of Contents for Car Solutions MimicsLT
- Page 1 MimicsLT - Gives you plug n play touchscreen and multimedia control interface for your Android stick/box. SOME USES: Custom Android systems for automotive vehicles • Allows you to quickly evaluate the performance and functionality of your Android TV stick/box •...
-
Page 2: Table Of Contents
MM-LT10-CR Table of Contents 1. Overview 2. What's in the box 3. Quick start guide 4. Touchscreen configurations 5. Optional multimedia interface 6. Updating The Firmware 7. Additional Information/Support... -
Page 3: Overview

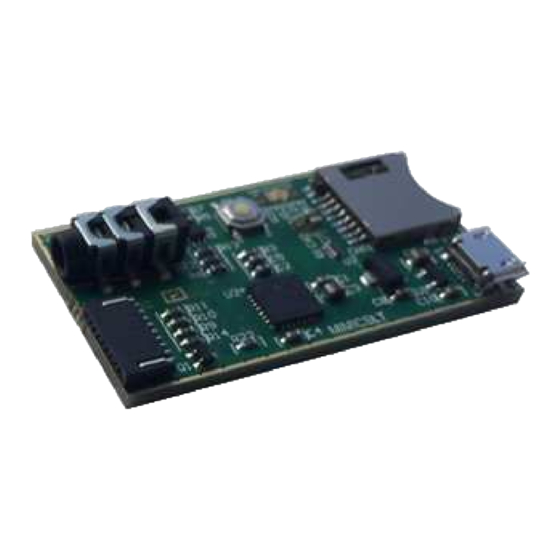

1. Overview The MimicsLT is a small device that enables you to connect an external compatible resistive or capacitive touchscreen to any Android stick/TV box. With the added functionality of a multimedia interface, the MimicsLT is only device you will need for interacting with your Android device. -
Page 4: What's In The Box
2. What's in the box (1) - Capacitive touchscreen adapter - Used to connect to specific touchscreens (2) - MimicsLT main module (3) - Resistive touchscreen adapter - This Allows you to connect any size 4-wire resistive touchscreen (4) - 2" Ribbon cable - This cable is used to connect between the main module and touchscreen adapters (5) - 8"... -
Page 5: Quick Start Guide
But by default, touching the screen should yield some touch activity. Enter calibration mode by pressing the button on the MimicsLT board for about 5 seconds • until a red light starts flashing (see fig 1) Press each of the 4 points on the edges of the screen (for about 1 second) in sequence as •... - Page 6 Fig 2 * It's important to press as close to the edge as possible. If using a resistive touchscreen a stylus can help this make the job easier. * The red light will increase its flashes depending on which point your should press next. i.e. if red light is flashing 2 times per second you should press point #2.
-
Page 7: Touchscreen Configurations
4. Touchscreen configurations Our touch adapters allow various touchscreens to be connected. Here is a couple examples of how to connect them. Our 7" Capacitive Generic 4-wire resistive Our 7" touchscreen must plug into the "CA" connection. *Note: Our capacitive touchscreen adapters have connections to match specific touchscreens. Do not attempt to plug in a touchscreen that is not supported into any of the connections as damage to the unit can result! This is not issue when using a 4-wire touchscreen as we support all of those. -
Page 8: Optional Multimedia Interface
5. Optional multimedia interface Not only does the MimicsLT give you touchscreen control of your Android device, but if you connect it to a standard 3.5mm resistive steering wheel/media interface you will be able to expand the functionality of the module. Here's an example of how enable this functionality. -
Page 9: Updating The Firmware
6. Updating The Firmware Firmware updates allows easy and rapid turnaround low level changes to the core MimicsLT operating system. After loading the MicroSD Card with the firmware files you can plug in the SDcard at any time and it will automatically update! To upload new firmware.
