- Page 1 Surge Protective Devices Installation & Operation Manual Model 159...
-
Page 2: Safety Information

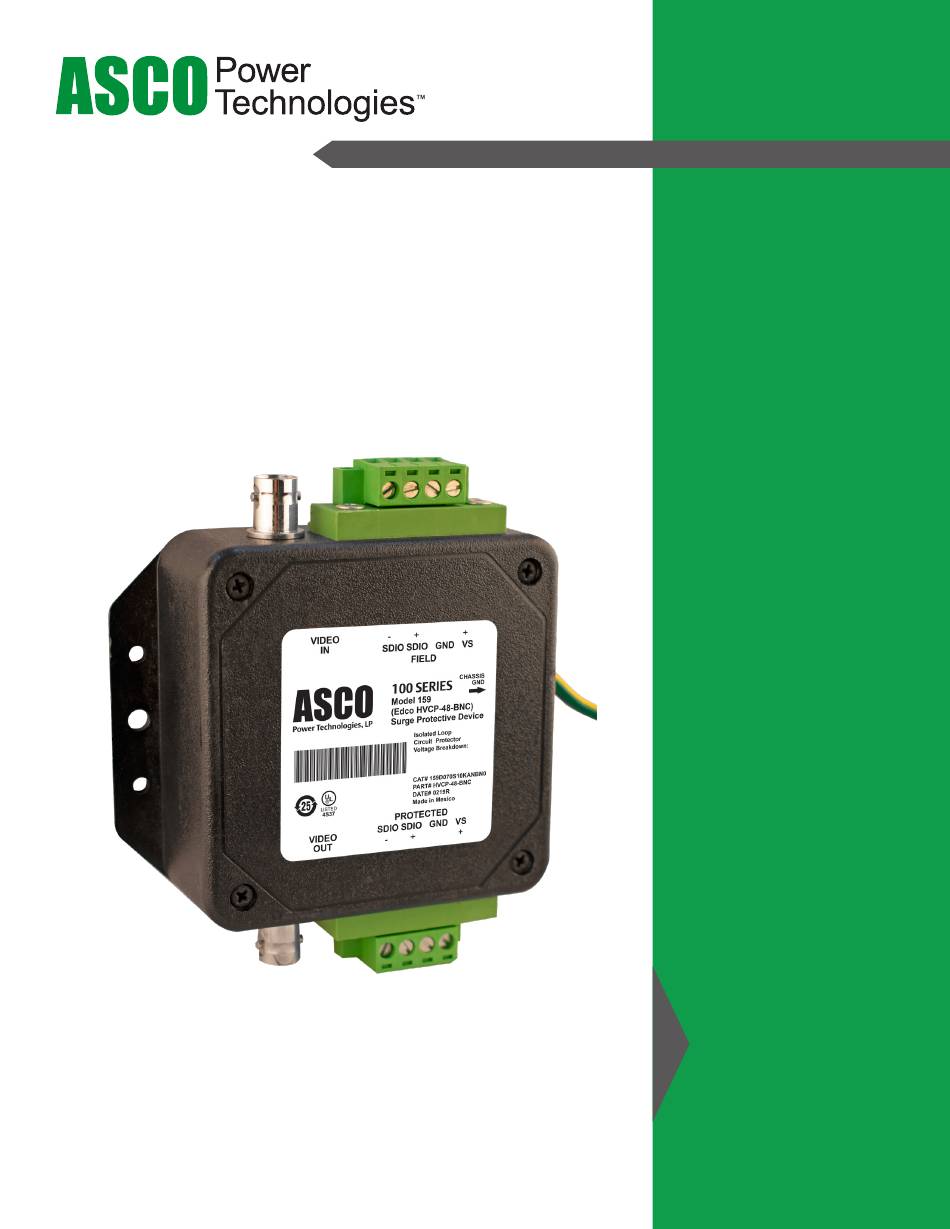

Please Note Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by ASCO Power Technologies for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction, installation, and operation of electrical equipment and has received safety training to recognize and avoid the hazards involved. - Page 3 Surge Protective Device (SPD) 01/2020 Introduction The ASCO Model 159 is a hybrid surge protective device product featuring DC power, data and video protection in one package. Each separate circuit is capable of handling high-current impulses while tightly clamping transients and allowing critical power and data to be transmitted.
-
Page 4: Installation
Equipment may be re-energized after all the above steps are complete. Figure 1: Wiring Diagram Model 159 © 2020 ASCO Power Technologies. All Rights Reserved For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance... - Page 5 CIRCUIT PROTECTOR CIRCUIT PROTECTOR PROTECTED PROTECTED VIDEO VIDEO SDIO SDIO GND VS SDIO SDIO GND VS © 2020 ASCO Power Technologies. All Rights Reserved For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance...
-
Page 6: General Technical Specifications
0% to 95% Non-condensing Certifications RoHS Compliant, UL497B, Tested to IEC 802.11 Limited warranty 5 Year © 2020 ASCO Power Technologies. All Rights Reserved For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance... - Page 7 BNC Video, Hardwire Power and Data 159D070S10KANBJ0 with NEMA 4X Enclosure Edco HVCP-48-BNC-4X ACCESSORY HVDIN DIN Mounting Kit 11852KIT © 2020 ASCO Power Technologies. All Rights Reserved For access to self-service tools and chat support visit se.com/us/en/work/support or call 1-888-778-2733 for technical assistance...
- Page 8 14550 58th Street North While every precaution has been taken to ensure accuracy and completeness in this literature, Schneider Electric assumes no Clearwater, Florida 33760 responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or omissions. se.com/us/en/work/support 1-888-778-2733 IO-75024 Rev- 01-20...
