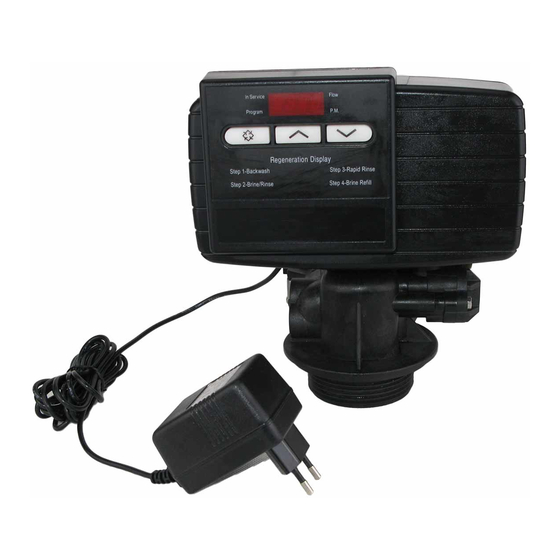

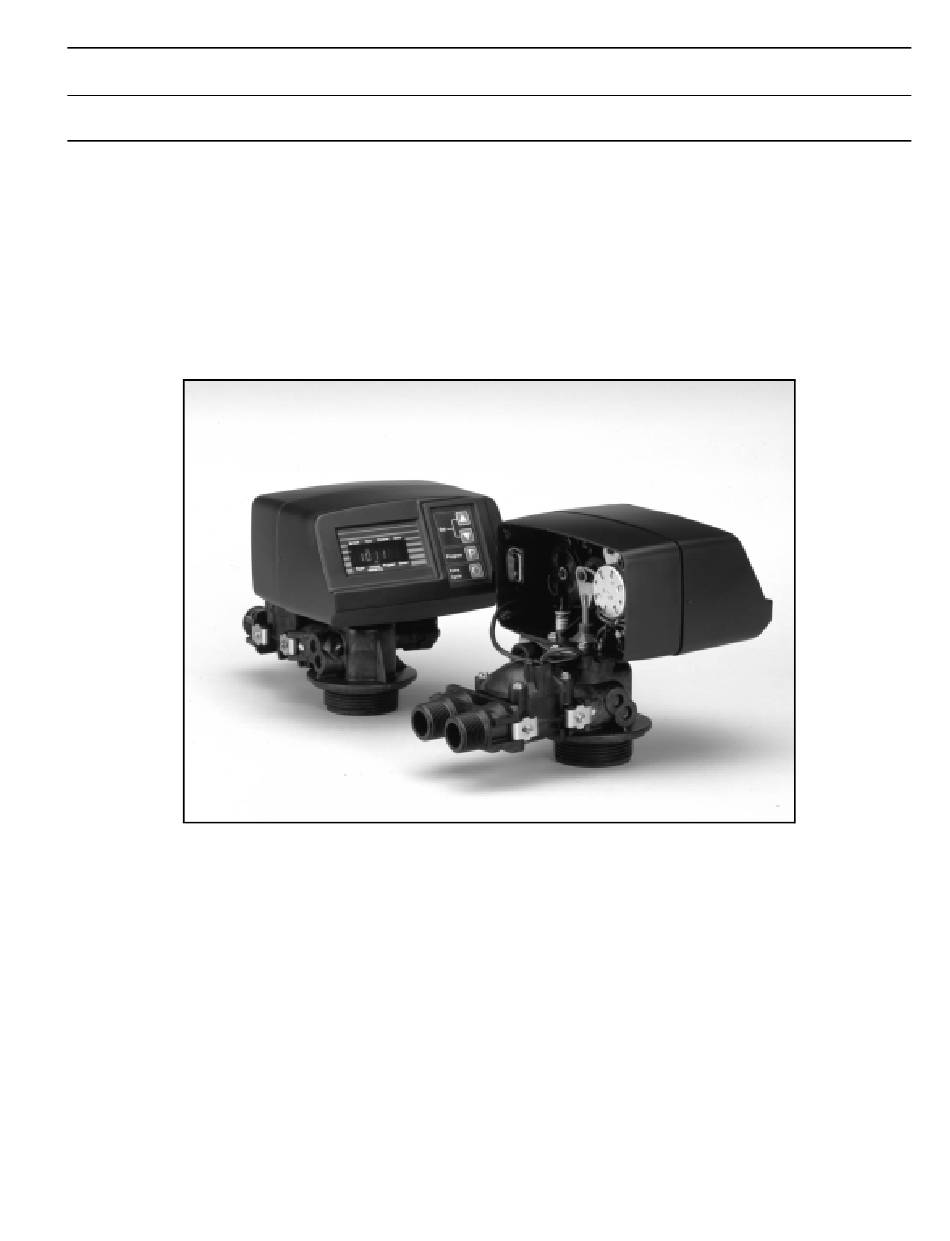

MODEL 5600SE
Upflow Brining
Service Manual
IMPORTANT: Fill in pertinent information on page 2 for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5600SE and is the answer not in the manual?

Questions and answers

Related Manuals for Fleck 5600SE

Summary of Contents for Fleck 5600SE

  • Page 1 MODEL 5600SE Upflow Brining Service Manual IMPORTANT: Fill in pertinent information on page 2 for future reference.

  • Page 2: Job Specification Sheet

    MODEL 5600SE Upflow Job Specification Sheet Job Number ____________________________________________________________ Model Number __________________________________________________________ Water Test______________________________________________________________ Capacity Of Unit__________________________Max._______________________Per Regeneration Mineral Tank Size: Diameter _________________________ Height _________________________________ Under Bedding ____________________________ Amount______________________________________ Type Of Media ____________________________ Cubic Feet __________________________________ Brine Tank Size ________________________________________________________________________...

  • Page 3: General Residential Installation Check List

    MODEL 5600SE Upflow General Residential Installation Check List WATER PRESSURE: A minimum of 25 pounds of water pressure is required for regeneration valve to operate effectively. ELECTRICAL FACILITIES: An uninterrupted alternating current (A/C) supply is required. Please make sure your voltage supply is compatible with your unit before installation.

  • Page 4: Control Start-Up Procedures

    MODEL 5600SE Upflow Control Start-up Procedures Whenever the valve is in Service the current time of day can be set, the control programmed, or an extra regeneration initiated at any time. Set Time Of Day Push either the Up or Down Set Button once to adjust Time Of Day Display by one digit.
  • Page 5 MODEL 5600SE Upflow Control Start-up Procedures (Cont’d.) Depending on current control programming, option setting displays that are not required to be set will not be viewed. Set Control Programming 1. The first option setting display that appears in the Program Mode is Treated Water Capacity.
  • Page 6 MODEL 5600SE Upflow Control Start-up Procedures (Cont’d.) Start An Immediate Extra Cycle When starting an Extra Cycle, you will have one or two options: 1. Press and Release the Extra Cycle Button: With Immediate Regeneration controls the control will go into regeneration cycle immediately.

  • Page 7: Final Setup

    MODEL 5600SE Upflow Control Start-up Procedures (Cont’d.) Fast Cycle Valve Thru Regeneration A. Once the valve reaches Regen Step #1 let water run to drain for about 5 minutes. Next, manually step the valve through a regeneration cycle checking valve operation in each step: B.

  • Page 8: Control Operation

    MODEL 5600SE Upflow Control Operation Timeclock Regeneration Valves In normal operation the Time Of Day Display will be viewed at all times. The control will operate normally until the number of days since the last regeneration reaches the Regeneration Day Override setting. Once this occurs, a regeneration cycle will then be initiated at the preset Regeneration Time.
  • Page 9 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Yellow Cycle Cam (Part No. 24598) Service Position Backwash Position (Regeneration Cycle Step #1) Page 9 Printed in U.S.A.
  • Page 10 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Yellow Cycle Cam (Part No. 24598) (Cont’d.) Brine/Slow Rinse Position (Regeneration Cycle Step #2) Rapid Rinse Position (Regeneration Cycle Step #3) Page 10 Printed in U.S.A.
  • Page 11 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Yellow Cycle Cam (Part No. 24598) (Cont’d.) Brine Tank Fill Position (Regeneration Cycle Step #4) Service Position Page 11 Printed in U.S.A.
  • Page 12 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Red Cycle Cam (Part No. 17885) Service Position Brine/Slow Rinse Position (Regeneration Cycle Step #1) Page 12 Printed in U.S.A.
  • Page 13 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Red Cycle Cam (Part No. 17885) Backwash Position (Regeneration Cycle Step #2) Rapid Rinse Position (Regeneration Cycle Step #3 Page 13 Printed in U.S.A.
  • Page 14 MODEL 5600SE Upflow Water Conditioner Flow Diagrams (Upflow Brining) Using Red Cycle Cam (Part No. 17885) Brine TankFill Position (Regeneration Cycle Step #4) Service Position Page 14 Printed in U.S.A.
  • Page 15 MODEL 5600SE Upflow Valve Wiring Diagram CB1 - 5600SE Circuit Board VDM - Valve Drive Motor EM - Electronic Flow Meter (Optional) SW1 - Homing Switch SW2 - Step Switch HCAM - Homing Cam UFSCAM - Upflow Step Cam Page 15...

  • Page 16: Control Valve Assembly

    MODEL 5600SE Upflow Control Valve Assembly (See opposite page for parts list) 48 47 Page 16 Printed in U.S.A.
  • Page 17 MODEL 5600SE Upflow Control Valve Assembly Parts List Item No. Quantity Part No. Description 1... . 1 ... . . 61400-31 ....Valve Body, Up-Flow 13/16″ Distributor 1 .
  • Page 18 MODEL 5600SE Upflow Valve Powerhead Assembly (See opposite page for parts list) Page 18 Printed in U.S.A.
  • Page 19 MODEL 5600SE Upflow Valve Powerhead Assembly Parts List Item No. Quantity Part No. Description 1... . 1 ... . . 26001-02 ....Drive Housing, Black 2.
  • Page 20 MODEL 5600SE Upflow 3/4″ Turbine Meter Assembly Parts List Item No. Quantity Part No. Description 1... . 2... . 13314....Screw, Hex Washer, 8-18 x 5/8 2.

  • Page 21: By-Pass Valve Assembly, Plastic

    MODEL 5600SE Upflow By-pass Valve Assembly, Plastic Parts List Item No. Quantity Part No. Description 1 ... 1 ... 19723 ....By-Pass Valve Body, Plastic 2 .

  • Page 22: By-Pass Valve Assembly, Brass

    MODEL 5600SE Upflow By-pass Valve Assembly, Brass Parts List Item No. Quantity Part No. Description 1... . 1... . 17290....By-Pass Valve Body, 3/4″...

  • Page 23: 2300 Safety Brine Valve

    MODEL 5600SE Upflow 2300 Safety Brine Valve Parts List Item No. Quantity Part No. Description 1 ... 1 ... 60027-00 ... .2300 Safety Brine Valve Body 2 .
  • Page 24 MODEL 5600SE Upflow 2310 Safety Brine Valve (See Opposite Page for Parts List) Page 24 Printed in U.S.A.
  • Page 25 MODEL 5600SE Upflow 2310 Safety Brine Valve Parts List Item No. Quantity Part No. Description 1... 1 ... 19645 ....Safety Brine Valve Body 2.
  • Page 26 MODEL 5600SE Upflow Service Instructions A. TO REPLACE TIME BRINE VALVE, INJECTORS, 11. Check for leaks at all seal areas. Check drain seal AND SCREEN with the control in the backwash position. 1. Turn off water supply to conditioner: 12. Plug electrical cord into outlet.
  • Page 27 MODEL 5600SE Upflow Service Instructions (Cont’d.) 7. Place timer on top of valve. Be sure drive pin on Pull meter module out of control valve. main gear engages slot in drive yoke. 5. Apply silicone lubricant to four new O rings and 8.
  • Page 28 MODEL 5600SE Upflow Service Instructions (Cont’d.) PROBLEM CAUSE CORRECTION Softener Fails To Regenerate. A. Electrical Service to Unit has been A. Assure Permanent Electrical Interrupted. Service (Check Fuse, Plug, Pull Chain or Switch). B. Timer is not Operating Properly. B. Replace Timer.
  • Page 29 MODEL 5600SE Upflow Service Instructions (Cont’d.) PROBLEM CAUSE CORRECTION Iron in Conditioned Water. A. Fouled Resin Bed. A. Check Backwash, Brine Draw and Brine Tank Fill. Increase Frequency of Regeneration. Increase Backwash Time. B. Iron Content Exceeds B. Add Iron Removal from Filter or Recommended Parameters.

  • Page 30: Service Assemblies

    MODEL 5600SE Upflow Service Assemblies 60022-25 ..BLFC .25 GPM 60626 ..5600SE Meter Assembly 60022-50 ..BLFC .50 GPM For Illustration and Parts List, See Page 20 60022-100 .
  • Page 32 P/N 19746 Rev. 4 04/01...
