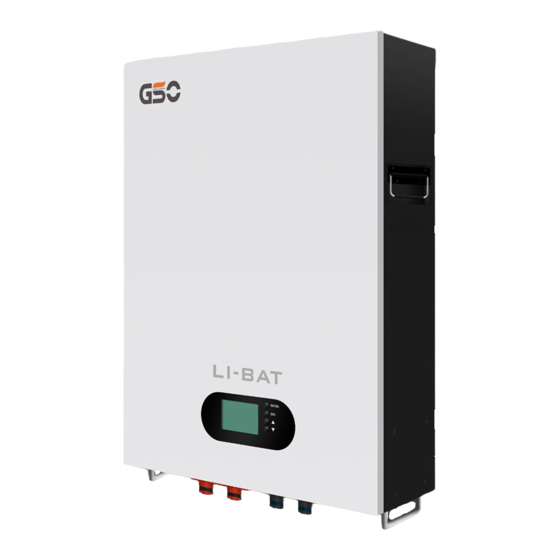

- Page 1 GBP48V SERIES Product manual of lithium iron phosphate battery for communication USER MANUAL Version 1.0 JIANGSU GSO NEW ENERGY TECHNOLOGY CO.,LTD...
-
Page 2: Table Of Contents
CONTENTS I 、 Installation Introduction..............1 1.1 Carry or move................1 1.2 Unpacking inspection..............1 Installation..................1 II、 Product Introduction................1 2.1 Specification................2 III、Product Performance................ 2 IV、System Description................3 4.1 Working mode................3 4.2 LED indicator description............3 4.3 Functional description..............4 4.4 Power on / Power off..............6 4.5 Product picture and Data sheet..........6 4.6 Performance test.................8... -
Page 3: I、Installation Introduction
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION I、Installation Introduction 1.1 Carry or move During the transportation or movement of the lithium battery, avoid carrying it upside down or sleeping on its side, and handle it carefully to avoid collisions. 1.2 Unpacking inspection Check whether the battery is damaged during transportation. -
Page 4: Specification
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION 2.1 Specification Configuration Data Function Single cell 3.2V No of series 15 S 16S option Settable/ Maximum Capacity 50AH/100AH can be 20 parallels Limit function Option Option Storage function Heating function Option Pre-charging function Communication... -
Page 5: System Description
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION IV. System description This product has a full-featured 8-16 series lithium-ion battery pack management system, with protection and recovery of monomer over-voltage/under-voltage, total voltage under-voltage/over-voltage, charge/discharge over-current, high temperature, low temperature, and short circuit. Features. Realize accurate SOC measurement during charging and discharging, and SOH health status statistics. -
Page 6: Functional Description
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION ● Status indication 4.3 Functional description ● Standby state: After the BMS is correctly connected and powered on, and there is no protection state of over-voltage, under-voltage, over-current, short circuit, over-temperature, under-temperature, etc., press the reset button to turn on the device, and the BMS is in standby state. - Page 7 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION After over-discharge protection occurs, charging the battery pack can release the over-discharge protection state. Or press the reset button once, and the BMS will turn on and re-check whether the battery pack voltage reaches the restored value. ●...
-
Page 8: Power On/Power Off
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION 4.4 Power on/power off Function Desp When the BMS is in the dormant state, press the reset button once, the BMS will be activated, and the LED Power indicator will flash in turn, then it will enter the normal on/Start working state. - Page 9 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Model GBP48V-50AH GBP48V-100AH Nominal volt（V） Nominal capacity（AH） Working volt range 42-56.25 Recommend charging volt（V） 52.5 Recommend discharging cutoff volt（V） Standard charging current(A) Max. Constant charging current(A) Standard discharging current（A） Max. Discharging current（A） Temperature（℃）...
-
Page 10: Performance Test
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION 4.6 Performance test Nominal Capacity The battery pack is placed in a 25℃ environmental chamber, 0.2C constant current and constant voltage to 54.65V, 0.05C cut-off, put it aside for 60 minutes; 1C discharge to 37.5V. - Page 11 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Rate charging The battery pack are charged at a constant current of 0.1C, 0.2C, 0.3C, 0.5C, and 1C to 54.75V in an environment of 25℃. Stop charging after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
- Page 12 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Rate discharge...
- Page 13 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION...
- Page 14 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Storage performance-place at room temperature In a normal temperature environment, 100% SOC storage for 28 days, test capacity retention and recovery rate(Test for 5 groups batteries) Storage performance-place at high temperature 55℃，100% SOC storage4*7 28 days, test capacity retention and recovery rate(Test average value for 5 groups batteries) Storage for...
- Page 15 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Cycle performance Testing method: 25℃, 0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off; after 30 minutes of storage, 0.2C discharge Power to 42V, cycle to 80% SOC cut-off; 25℃, 1C constant current charge to 53.25V, constant voltage to 0.05C cut-off;...
-
Page 16: Communication Description
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION V. Communication introduction 5.1 RS485 communication The BMS has RS485 communication for battery pack assembly, and the baud rate is 9600bps. RS485 communication interface adopts 8P8C network cable interface. RS485 Communication interface definition: definition 1、8 RS485-B... - Page 17 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION All wiring must be performed by professionals. Parallel communication When multiple machines are connected in parallel, the RS485 interface is used as the parallel communication interface, and the CAN interface is used as the uplink communication interface.
- Page 18 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION two pieces in parallel diagram Output Three pieces in parallel diagram Output...
-
Page 19: Can Communication
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Four pieces in parallel diagram Output ▲ For more parallel machines, refer to the above parallel machine diagram and increase in order. 5.2 CAN Communication The BMS has the CAN communication function for uploading battery packs, and the CAN communication interface adopts the 8P8C network cable interface. - Page 20 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION CAN communication： Alarming Dial add RS485 Capacity Running On/Off Dialing address selection Parallel DIP switch definition: When the battery pack is connected in parallel, use the DIP switch to distinguish different pack addresses, and the hardware address can be set by the DIP switch on the board.
- Page 21 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Slave address DIP switch position remarks Pack1 Pack2 Pack3 Pack4 Pack5 Pack6 Pack7 Pack8 Pack9 Pack10 Pack11 Pack12 Pack13 Pack14 Pack15...
- Page 22 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Host address No of parallel DIP switch position Remarks 2 in parallel 3 in parallel 4 in parallel 5 in parallel 6 in parallel 7 in parallel 8 in parallel 9 in parallel 10 in parallel 11 in parallel 12 in parallel...
- Page 23 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Two piece in parallel diagram Slave Host Three piece in parallel diagram Slave Host...
-
Page 24: Maintenance And Troubleshooting
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION Four pieces parallel diagram Slave Host ▲ For more parallel machines, refer to the above parallel machine diagram and increase in order. VI. Maintenance and troubleshooting 6.1 Daily maintenance A. Regularly (6 months) clean the battery dust and check whether the battery connection wires are loose. -
Page 25: Warranty
PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION D. Please follow the design parameters and conditions of use during use, and do not exceed the values in this specification, otherwise the protection board may be damaged. If you need to use inverters from other manufacturers, please communicate with our engineers in advance VII. - Page 26 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION packaging, transportation, and storage, it may cause serious accidents-combustion and explosion. In order to prevent casualties and property losses caused by improper handling of lithium batteries in daily life, the following requirements are imposed on lithium battery management: 1.
- Page 27 PRODUCT MANUAL OF LITHIUM IRON PHOSPHATE BATTERY FOR COMMUNICATION batteries and modules returned from production, the following measures must be taken: A) Battery and module defective products warehouses need to be set up separately, and the warehouses shall be physically separated by brick walls, and shall be equipped with sufficient varieties of fire-fighting equipments and alarm facilities.
- Page 28 JIANGSU GSO NEW ENERGY TECHNOLOGY CO.,LTD ADD: NO.142 NORTH JINSHAN ROAD, YANGZHOU CITY,JIANGSU PROVINCE, P.R.C. CHINA TEL: +86 514-87520588 EMAIL: INFO@GSOPOWER.COM WEBSITE: WWW.GSOPOWER.COM...
