Applico GPP52L User Manual

520mm/750mm stainless steel powerpack rangehood
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual for
520mm/750mm Stainless Steel Powerpack Rangehood
GPP52L & GPP75L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPP52L and is the answer not in the manual?

Questions and answers

Related Manuals for Applico GPP52L

Summary of Contents for Applico GPP52L

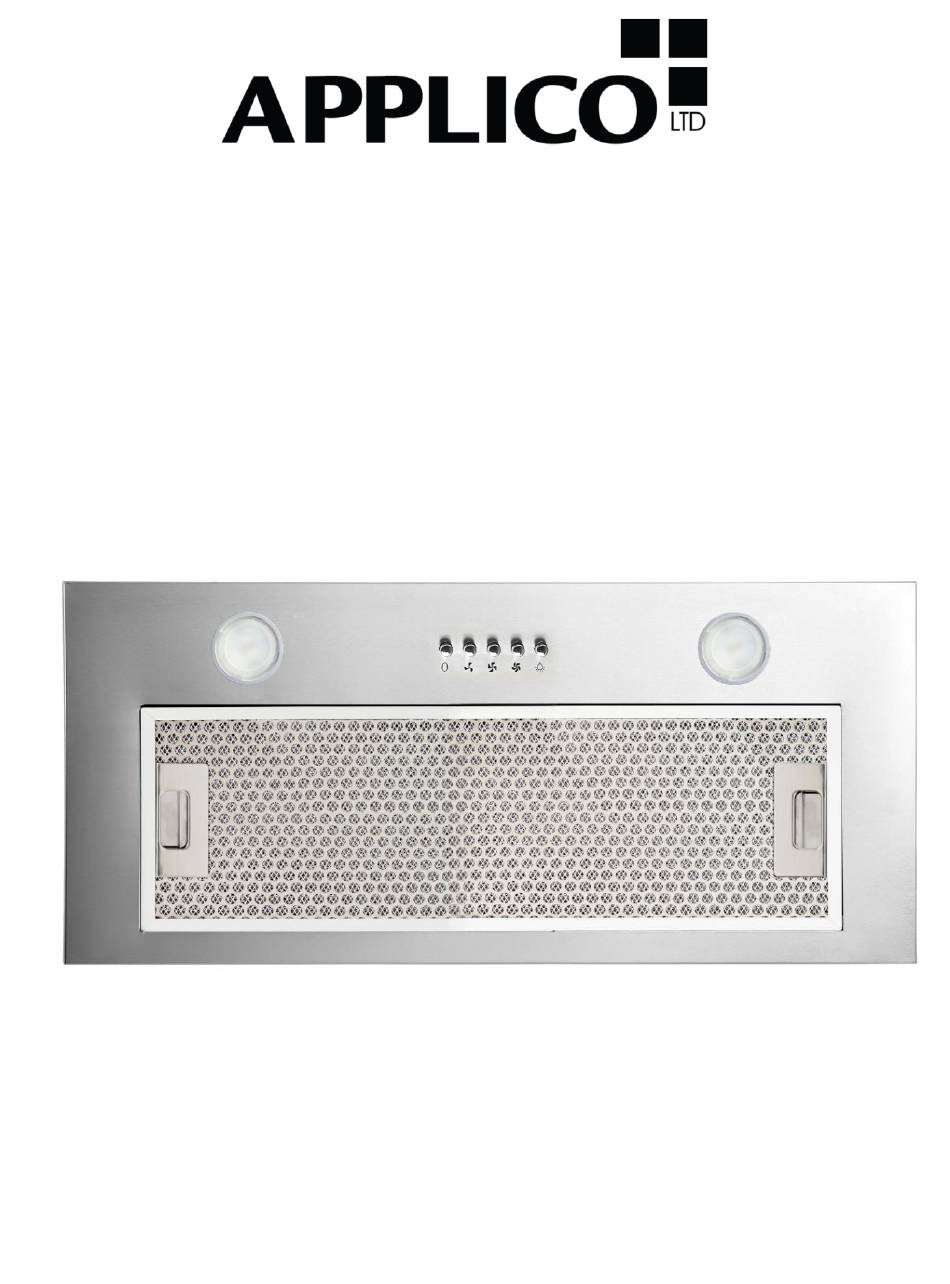

  • Page 1 User Manual for 520mm/750mm Stainless Steel Powerpack Rangehood GPP52L & GPP75L...
  • Page 2 NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference for you or any person not familiar with the operation of the appliance.

  • Page 3: Table Of Contents

    Content Environmental note ....................1 Important safety information ................2 Specifications of your rangehood (mm): ..............5 Using your rangehood .................... 7 Cleaning your rangehood ..................8 Maintenance ......................9 Installation ......................12 Installing your rangehood ..................14 Extraction mode or recirculation mode ............... 17 Box Contents: ......................

  • Page 4: Environmental Note

    Environmental note Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

  • Page 5: Important Safety Information

    Important safety information Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from.
  • Page 6  The edges of the rangehood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS.  If the room where the rangehood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7  Remember that when in extraction mode, your rangehood is removing air from your room. Ensure that proper ventilation measures are being observed. Warning: Always ensure that the rangehood has been switched off before carrying out any work, including replacing light bulbs. ...

  • Page 8: Specifications Of Your Rangehood (Mm)

    Specifications of your rangehood (mm): GPP52L GPP75L...
  • Page 9 Brushed stainless steel finish  150mm diameter ducting outlet  Stainless steel coated grease filter Grease Filter part no. SYRSF68521 for GPP52L Grease Filter part no. SYRSF68751 for GPP75L  Extraction capacity: 700m³/hr  Noise level min/max: 60dB~ 70 dB ...

  • Page 10: Using Your Rangehood

    Using your rangehood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE RANGEHOOD IS USED FOR THE FIRST TIME. Cleaning  You should use a mild liquid detergent and a damp cloth on all the external areas of your rangehood before it is used for the first time. This will help to remove any residues from the manufacturing process.

  • Page 11: Cleaning Your Rangehood

    Cleaning your rangehood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR RANGEHOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE.  Clean the external parts of your rangehood with mild liquid detergent and a new damp cloth.

  • Page 12: Maintenance

    Maintenance  Removing and cleaning the grease filter Grease Filter part no. SYRSF68521 for GPP52L Grease Filter part no. SYRSF68751 for GPP75L  Remove the grease filter by sliding the securing nibs at the sides of the grille on the underside of the rangehood.
  • Page 13  Prior to removing the light bulb, ensure that it has cooled down.  Press gently on the underside of the bulb that needs to be replaced and twist anticlockwise to release.  Replace in reverse order using only genuine spare part 14000600420. Note: ...
  • Page 14  Fitting the charcoal filter (Part number ST1) If the appliance is going to be used in recirculation mode then it is necessary to fit charcoal filter (ST1). This will help to absorb unpleasant odors caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CHARCOAL FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE RANGEHOOD FROM YOUR MAINS SUPPLY.

  • Page 15: Installation

    Installation IMPORTANT: Before installation read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.
  • Page 16  The brown wire must be connected to the terminal marked “L” (live), or coloured red.  The green/yellow wire must be connected to the terminal marked “E” or“ ”. Before beginning installation  Check that the product purchased is of a suitable size for the chosen installation area.

  • Page 17: Installing Your Rangehood

    2. Drill a hole in the cupboard, 715mm*265mm for 750mm model (GPP75L), and 490mm*265mm for 520mm model (GPP52L). Make sure the distance between the edge of the hole and the edge of the cupboard edge is at least 35mm.
  • Page 18 750mm model 520mm model  Connecting to external ducting (top)  Connect the coupling to the top of the rangehood, using two of the smaller screws provided. (If side ducting, this is either through the wall or the soffit)  Connect a 150 mm ducting hose to a discharge outlet that is suitable for cooking vapours.
  • Page 19 appliance but one can be obtained from the Retail outlet where you purchased your appliance.  It is recommended to use semi- rigid aluminum ducting.  The maximum distance between the coupling and your discharge outlet should be 3 meters, with one 90 degree bend. For each additional 90 degree bend, the maximum distance is reduced by a further meter.

  • Page 20: Extraction Mode Or Recirculation Mode

    Extraction mode or recirculation mode IMPORTANT: You will have to decide prior to installing your rangehood whether to use it in extraction mode or recirculation mode. • What is the difference between extraction and recirculation modes In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting.

  • Page 21: Box Contents

    Box Contents: Opening the box (both 750mm & 520mm models), you will find the following items: Description Illustration Rangehood Screw(ST4 x 18mm) User Manual...

  • Page 22: Troubleshooting

    Troubleshooting: IMPORTANT: If your rangehood appears not to be operating properly, before contacting an authorised service agent, please refer to the checklist below. My rangehood will not start.  Check that the rangehood is connected to the electricity supply.  Check that the fan speed control is set correctly. My rangehood is not working effectively.
  • Page 23 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact an Authorized Service Agent. Log onto www.applico.co.nz or phone 0800 555 033 to locate your closest service agent.
  • Page 25 Imported by Applico Ltd. Private Bag 92900 Onehunga, Auckland 1061, New Zealand Website www.applico.co.nz Phone 0800 763 448...
