Summary of Contents for GSM Activate ECO DIALLER V4

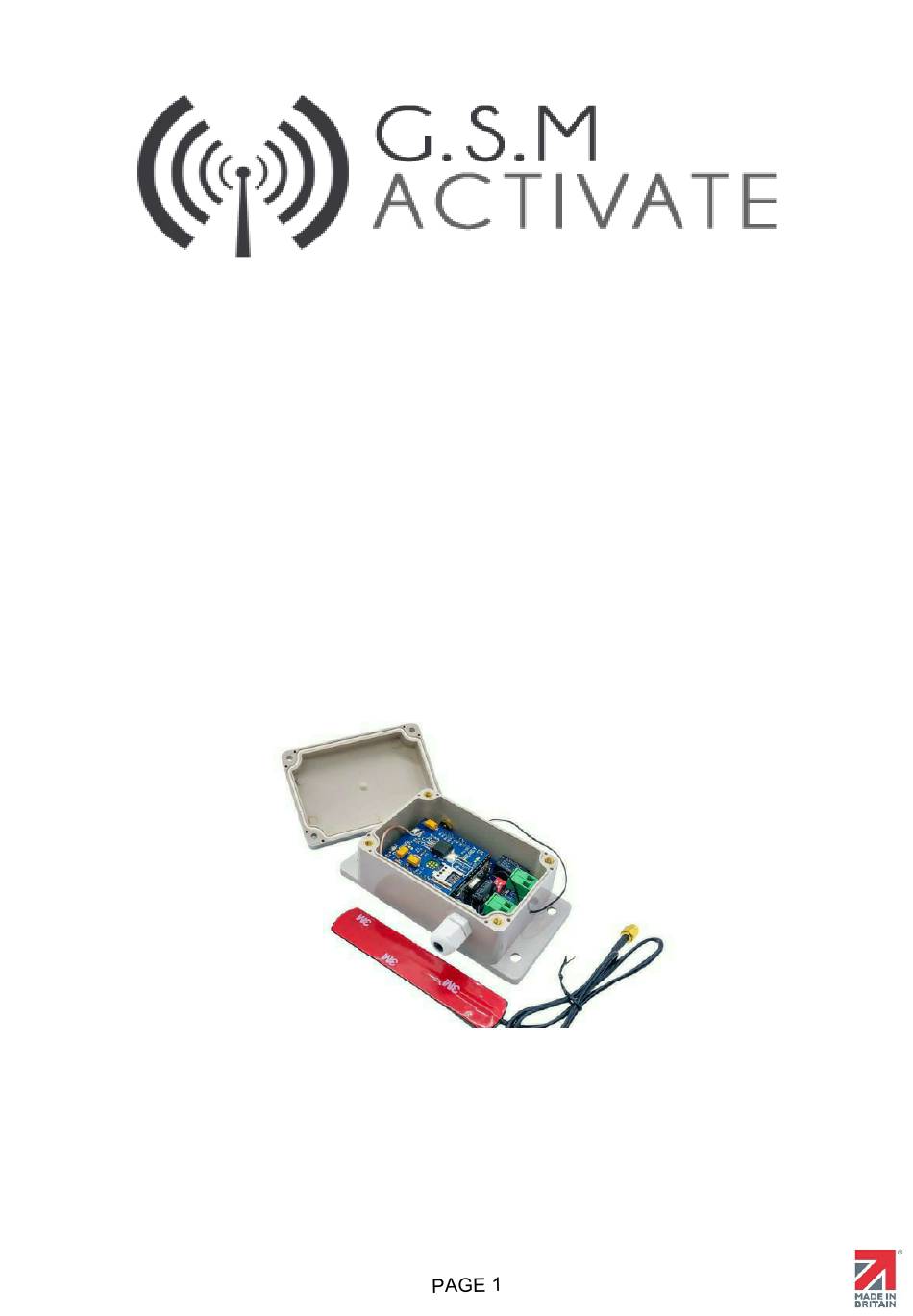

- Page 1 2G/3G GSM DIALLER MINI CO RANGE MODEL : ECO DIALLER V4...
- Page 2 Our GSM Auto Dialler comes with a SIM Active function meaning that it will send a message every six weeks to a preprogrammed number we at GSM Activate own to prevent the SIM card being shut down due to inactivity.
- Page 3 Instructions IMPORTANT - PLEASE READ Please make sure you disconnect the power when you fit the simcard. Then slide the simcard into the holder making sure that the clipped corner of the simcard lines up with the clipped corner of the simcard holder as seen in the image above. Signal Strength To help make sure that you place the unit in a suitable position you can text the unit to see how much signal strength the Auto Dialler is receiving.
- Page 4 How to Programme Contact Numbers After inserting your simcard into your eco Auto Dialler, turn the unit on and wait to see the GREEN ready LED light come on. This will indicate that you have a mobile signal and the unit is ready for use.
- Page 5 How to Programme the SMS You can now change the alarm message for inputs 1 & 2 to your own choosing. To change the message send the text command as follows. NOTE - Your message should read a message of your choosing up to 19 characters long. MESS1=YOUR MESSAGE# The default message is (Input 1)
- Page 6 NOTE - Please ensure you supply a 9 - 24 volts DC from the battery terminals via a 2 amp fuse (for alarm panel instructions) INPUT 1+2 As you can see in the circuit diagram above, the input can be activated by pulling the input 1 &...
- Page 7 Quick Reference Reset To reset the unit back to factory settings you will need to send a text message #RESET# WARNING This will reset all of your parameters. Only send a reset command when Necessary. GREEN READY LED will flash 8 times. Typical Application of this Product ●...
