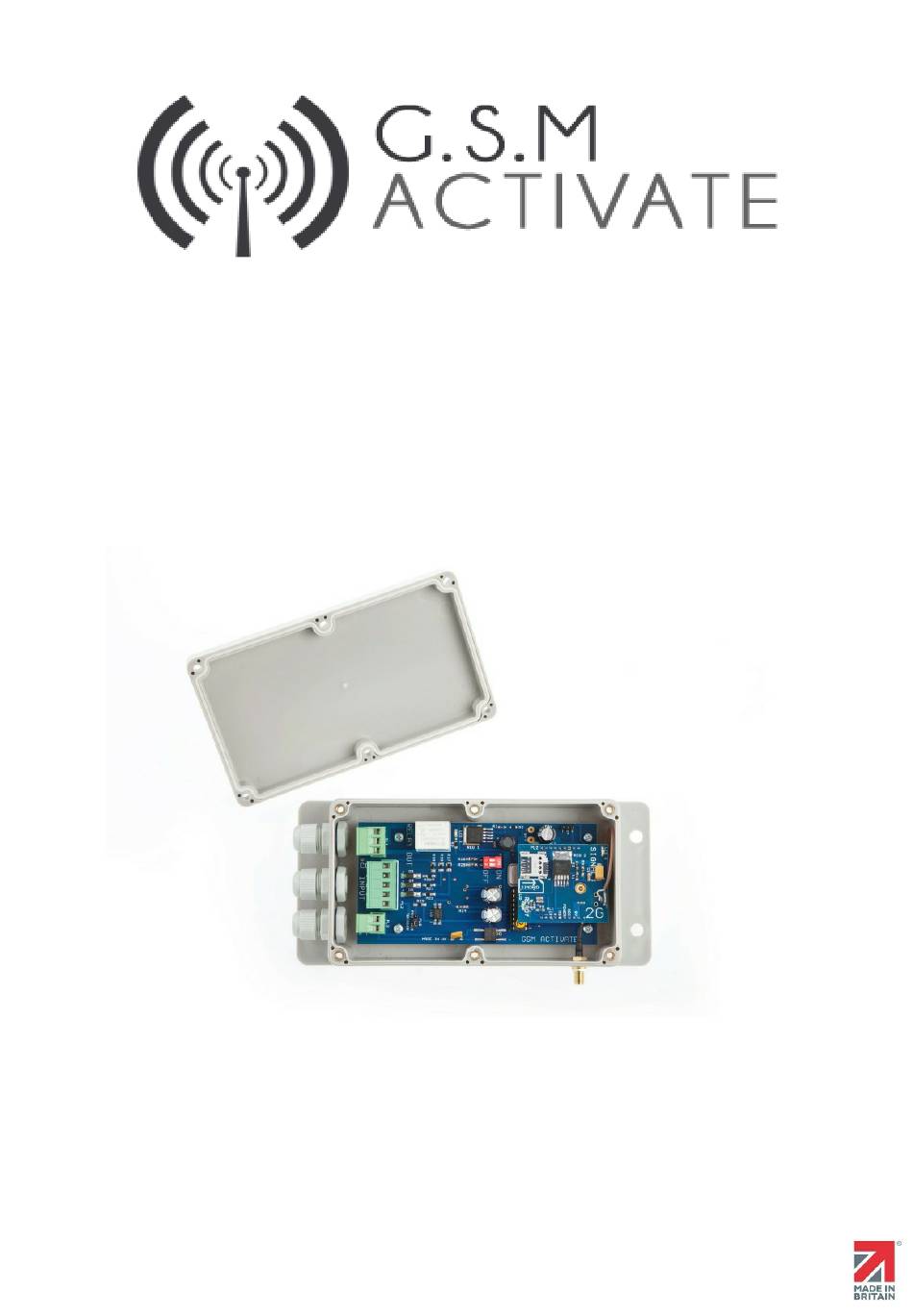

- Page 1 2G, 3G & 4G GSM Auto Dialler PAGE 1 Model number 2G / 3G /4G - AD4IN1V4...
-
Page 2: Specification
Product Information Our 2G, 3G, 4G AD4IN1V2 Auto Dialler is a versatile unit which can be attached to many of your electronic devices in your homes, workplace, gardens or wherever you may need it. It will alert you using GSM technology by sending a text message or phone call to your mobile phone or landline. -
Page 3: Important - Please Read
Our GSM Auto Dialler comes with a SIM Active function meaning that it will send a message every six weeks to a preprogrammed number we at GSM Activate own to prevent the SIM card being shut down due to inactivity. - Page 4 Dipswitch The dialler can work on 2G, 3G & 4G networks. The module works worldwide with all simcards (see page 3 for applicable bands). You can choose which frequency the unit will use at the start by using the dipswitch combinations below 1 - Dipswitch 1 Set to OFF &...
- Page 5 How to Program the SMS Text Message You can now change the alarm message for inputs 1 & 2 to your own choosing allowing you to know which input has been triggered. To change the message send the text command as follows. #MESS1=YOUR MESSSAGE# The default message is - Input 1 activated...
-
Page 6: Alarm=Off
How to Use The GSM Auto Dialler The Auto Dialler has four independent input’s Input 1 = Terminal 1 connection. (Negatively triggered) pulled to ground Input 2 = Terminal 2 connection. (Negatively triggered) pulled to ground Input 3 = Terminal 3 connection. (Negatively triggered) pulled to ground Input 4 = Terminal 4 connection. - Page 7 How to Use the Relay Output Auto Relay Trigger Input On (see below) The Auto Dialler has an 8 amp volt free contact relay output which can be used to switch on external electric devices such as lighting, sirens etc. By texting the unit you can turn the relay ON or OFF.
-
Page 8: Please Read
Modular Plug In Boards The GSM Auto Dialler now has some modular plug in boards which can add extra functionality to the base unit. To discuss the new modular boards please contact us using the contact details below. PLEASE IGNORE THIS PAGE IF YOU ARE NOT USING A PLUG IN BOARD. Wireless Add On Plug Our wireless plug in allows up to 4 sensors to be paired to the auto dialler. - Page 9 Inputs As you can see in the circuit diagram above the inputs can be activated by pulling input 1, 2 & 3 to ground. Alternatively, input 4 can be triggered by pulling to ground or if the link is applied using a positive trigger. Relay Output - Volt Free Contact The relay has common, normally open and normally closed contacts which are capable of 8 Amp loads.
-
Page 10: Quick Reference
Quick Reference For more information or technical support, please browse the FAQ’s on our website www.gsm-activate.co.uk Alternatively you can email our technical support team at technical@gsm-activate.co.uk and we will do our best to reply within 24 hours Monday to Friday. 30/12/21 - GD Page 10...
