Summary of Contents for Portek SPRAYMAXX

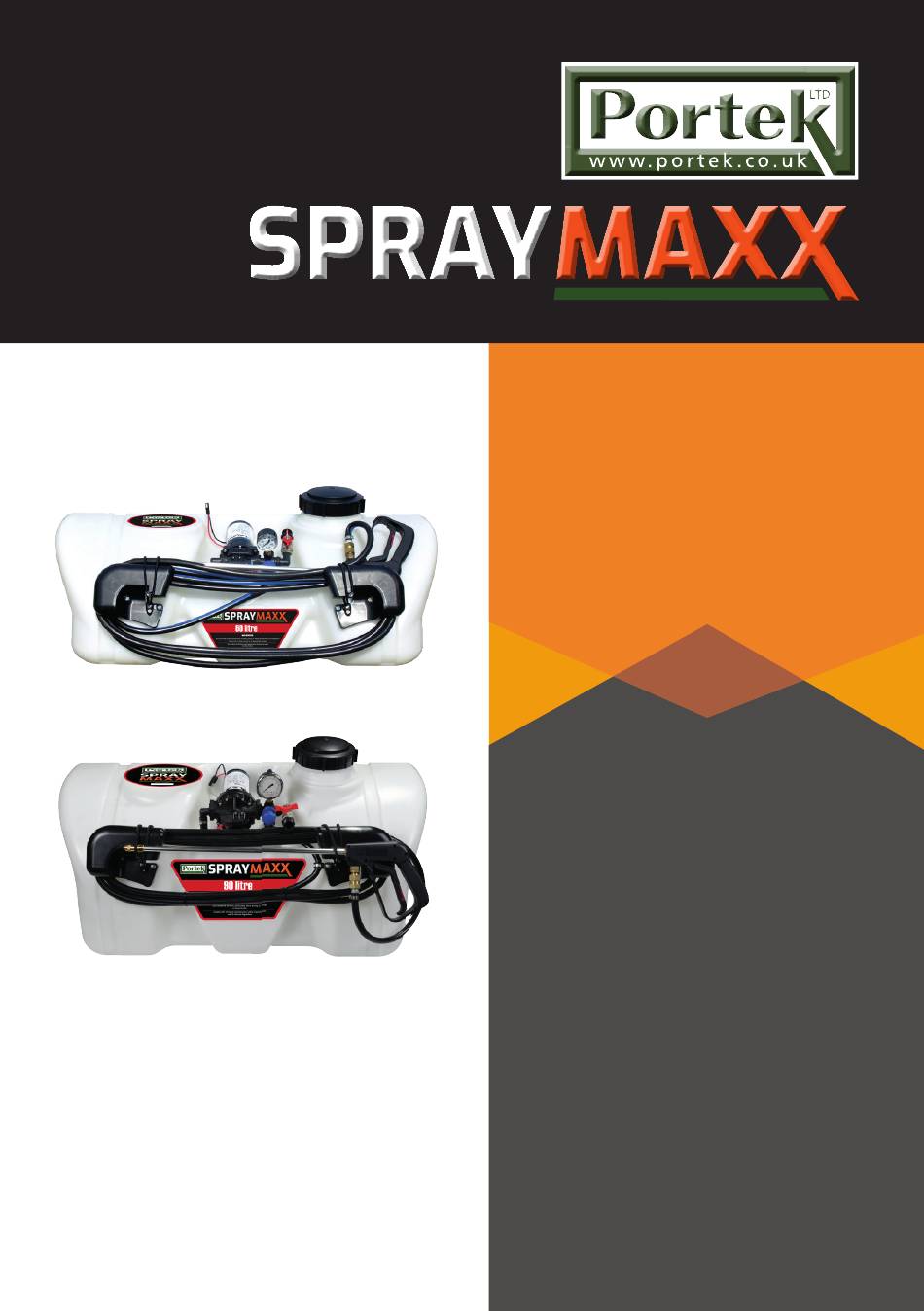

- Page 1 60 litre & 90 litre models ATV / UTV Read and fully understand the instructions before operating Mounted Sprayer the Portek SprayMaxx Operator's Handbook portek.co.uk...
-
Page 2: Table Of Contents
Contents CONTENTS Before You Start Safety Information Introduction Assembly Set Up Calibration 8 - 9 Filling, Mixing & Spraying 10 - 11 Cleaning, Maintenance & Storage 12 - 13 Parts Diagram & Parts List 14 - 15 Technical Data 16 - 17 Warranty 18 - 19 Declaration of Conformity... -
Page 3: Before You Start
READ AND UNDERSTAND THIS MANUAL FULLY BEFORE OPERATING THE SPRAYMAXX This user manual accompanies the SprayMaxx ATV/UTV Mounted Sprayer and contains important information on set up and handling. Before using the equipment, read the user manual carefully. This particularly applies to the safety notes. Failure to do so may result in personal injury or damage to the equipment. -
Page 4: Safety Information
2. Check for signs of wear or damage, before using the SprayMaxx and after any impact, and repair as necessary. 3. The SprayMaxx is designed for use by adults. Young people over 16 years may use the tool under supervision only. -
Page 5: Introduction
Introduction INTRODUCTION Congratulations on the purchase of your SprayMaxx ATV/UTV Sprayer, which has been designed for the spraying of herbicides and pesticides. The design of the tank enables the unit to be mounted on to the cargo rack of an ATV, UTV, pick up or trailer. -
Page 6: Assembly
Assembly & Operation ASSEMBLY The following steps are given as a guide to assemble your SprayMaxx sprayer: 1. Check inside the tank for any foreign objects. 2. Remove the pressure gauge from parts bag and fit onto sprayer. 3. Fit lid on top of the tank. -
Page 7: Set Up
Set Up 1. Securely fix the two hose wrap brackets to the SprayMaxx tank with the fittings provided. 2. Connect the SprayMaxx wire harness using the bullet connectors at the pump and then connect to your 12 volt power source/battery. -
Page 8: Calibration
Calibration 1. Measure Nozzle Spacing: Measure the distance between each nozzle to determine the length of your travel distance. Nozzle Spacing Distance to Travel 40cm (16”) 78m (255’) 45cm (18”) 70m (227’) Nozzle 50cm (20") 62m (204’) Spacing 55cm (22") 56m (185’) 60cm (24") 52m (170’) - Page 9 Calibration 4. Set Correct Spraying Pressure: With the sprayer Nozzle 1 parked and the pump running, set the ideal or intended pressure. REFER TO CHEMICAL SUPPLIER 5. Catch Output From Each Nozzle: Catch the fluid output in a container (marked in oz) for the same number of seconds it took to drive the measured distance in step 3 (42 seconds).
-
Page 10: Filling, Mixing & Spraying
• Measure out the correct quantity of pesticides using clean measuring jugs used only for this purpose. • Half fill the SprayMaxx with clean water, then add the measured pesticide/chemical. • Rinse out the measuring jug and empty the container. Pour all rinsings into the spray tank. - Page 11 Spraying Planning to Spray Safely • Before commencing spraying, plan the work effectively to reduce potential contamination. • Wind direction and speed must be taken into account. Avoid spraying on still, hot and sunny days or when wind speed exceeds 6.5km/h. •...
-
Page 12: Cleaning, Maintenance & Storage
Cleaning • Drain Tank and Rinse: Rinse all liquid out of the tank. When flushing the sprayer, pay attention to where the chemical will run. Always clean in an area that will not contaminate water supplies, streams or crops. • Pressure Wash Inside Tank: After draining the tank, rinse the inside by spraying clean water with a pressure washer. - Page 13 Maintenance & Storage MAINTENANCE • After use, the SprayMaxx must be thoroughly decontaminated including the tank, pump, hoses and the hand lance to avoid damage to crops from harmful spray residue and to the sprayer from corrosion or blockage. • After spraying, flush the tank, hose and the hand lance by running it with clean water plus a recommended cleaning fluid.
-
Page 14: Parts Diagram & Parts List
Parts List EXPLODED DIAGRAM For both 60 & 90 litre capacity SprayMaxx with a 12 volt pump. NOTE: Tank pictured is not indicative of every model but basic equipment is the same. Hose Wrap Kit Assembly - supplied pre-assembled. - Page 15 Parts List Part No. Description Part No. Description 088/007 Powerjet Spray Lance 13 088/042 ” Ball Drain Valve 088/008 Economy Spray Lance 14 088/022 ” Mini Ball Valve F/F 088/136 60L Sprayer Tank 15 088/023 Reducer ”m x ”m 088/137 90L Sprayer Tank 16 088/014 Suction Filter (10mm) 088/003 3.8L/min Pump...
-
Page 16: Technical Data
Technical Data 60 Litre Range Easily mounted on the back on an ATV (such as a quad bike), these sprayers are fitted with a hand lance that provides thorough and adjustable spray coverage. Spray booms and boomless sprayers are available. 60 Litre 60 Litre 3.8L/min Pump... - Page 17 Technical Data 90 Litre Range Easily mounted on the back on an ATV (such as a quad bike), these sprayers are fitted with a hand lance that provides thorough and adjustable spray coverage. Spray booms and boomless sprayers are available. 90 Litre 90 Litre 8.3L/min Pump...
-
Page 18: Warranty
Portek in addition or inconsistent with these provisions. Purchasers to whom these provisions apply agree to hold Portek not liable for claims by their customers in excess of the obligations of Portek expressly set forth herein. - Page 19 Warranty Exclusions All SprayMaxx machines are covered for a period of 1 year (unless stated otherwise) from the date of purchase by the Owner, when used for the designed purpose of that product by Domestic Users or if stated otherwise.
-
Page 20: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity Portek Ltd, Bryn Hall, Knolton Bryn, Overton on Dee,Wrexham, LL13 0LF declare that the machinery named below conforms to the requirements of EC Council Machinery Directive Annex II. Designation of Machinery: Portek SprayMaxx ATV Mounted Sprayer.
