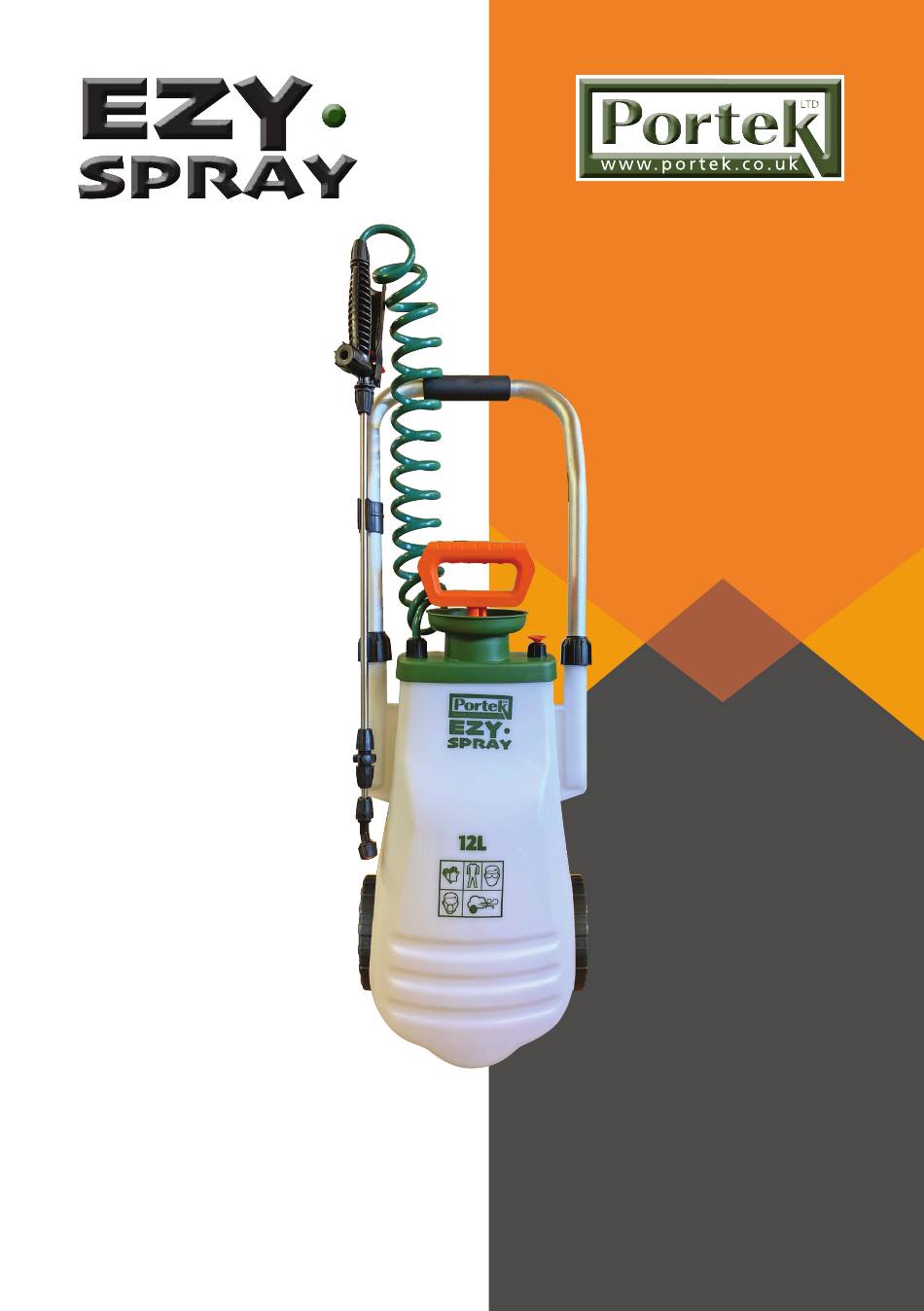

- Page 1 Multi-Purpose Read and fully understand the instructions before operating Wheeled Sprayer the Portek EZY Spray Operators Handbook portek.co.uk...
- Page 2 ALWAYS WEAR THE CORRECT PROTECTION. ESSENTIAL EQUIPMENT FOR YOUR PROTECTION The EZY Spray complies with the safety standards as stated in the Declaration of Conformity. For your safety You must wear full protection as specified below. Face and eye protection...
- Page 3 DISPOSAL At the end of the EZY Spray’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. Contact your local authority for details of collection schemes in your area.
- Page 4 Techical Info. & Parts List Ideal for garden borders, weed control, garden bug Bottle capacity control, patio cleaning, car washing, grounds and park Working capacity maintenance. WARNING: The use of solvent and acidic Max working pressure 40psi based chemicals will cause permanent damage to this Weight (empty sprayer) 3.96kg sprayer and invalidate the warranty.
- Page 5 Assembly Handle Assembly Remove the two black plastic fixing caps from their bag and slide one onto each side of the handle. Insert the two shafts of the handle into the handle mounting sections moulded into the spray bottle. Screw down the two black plastic fixing caps to secure the handle. Lance Assembly If not already in place, make sure the rubber gasket and compression fittings and are...
- Page 6 Filling the Spray Bottle Warning: Ensure remaining pressure is released before attempting to open the Ezy Spray. Unscrew the pump handle anti-clockwise to loosen and remove from the pump handle/ assembly from the fill inlet. Fill the spray bottle with your chosen liquid to the desired level (marked on the side of the main unit - max.
- Page 7 Operation & Troubleshooting Spray Operation The sprayer is operated by depressing the trigger. For continuous spraying pull the red plastic locking catch backwards and locate onto the plastic lug, locking the trigger in the open position. Flow Rate The flow rate of the spray from the lance will reduce as the pressure in the sprayer reduces. The pressure can be topped to a desired level using the orange pump handle.
- Page 8 Declaration of Conformity Declaration of Conformity Portek Ltd, Bryn Hall, Knolton Bryn, Overton on Dee,Wrexham, LL13 0LF declare that the machinery named below conforms to the requirements of EC Council Machinery Directive, Annex II. Designation of Machinery: Portek EZY Spray Multi-purpose Sprayer...
