ClareOne High/Low Temperature Sensor
Last modified: 04/22/21
Part number: CLR-C1-HLT

Description

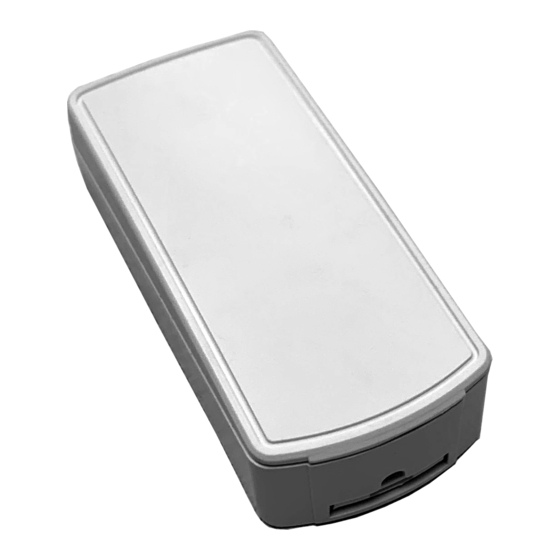

The ClareOne High/Low Temperature Sensor is a supervised,
wireless sensor that detects both a high temperature (100° F)
and low temperature (40° F). The sensor is mounted using
double-sided adhesive tape (included).
When activated, the sensor transmits an alert or status to the
ClareOne panel. This includes supervisory, tamper, and low
battery. The sensor is powered by (2) replaceable 3-VDC,
lithium coin-cell batteries.

Important safety instructions

Before you install this sensor, be sure to:
Read, keep, and follow all instructions.
When there is a low battery, replace with compatible
batteries.
© 04April21 Clare Controls, LLC.

Installation

Mounting the sensor on metal can affect the transmission
range and magnet gap performance. Please test the sensor
from the desired location before permanently mounting it.

Freeze Sensor Mounting

Using the supplied mounting tape find a location that would
most likely get cold first (alarm trips at 40F) for example:
• Under a kitchen sink
• In the bathroom
• Avoid area that may retain heat as furnace rooms or
near hot water pipes.

High Temp Sensor Mounting

High Temp sensors are designed to detect an increase in the
room temperature. Locate the sensor up as high as possible as
heat rises, the sensor detects at 100F.

For Additional Tamper Security

Punch out the tamper cover on
the bottom of the sensor and
using the small screw; secure it to
the mounting location. When the
sensor is removed "tampered" the
tab remains providing a tamper
condition.
CAUTION: Battery may explode if mistreated. Do not
recharge, disassemble, or dispose of in fire.
1 / 3
DOC ID: 2021-04-2104-03
