Item #: AF20MATST
Assembly Instruction
Please visit our website for the most current instructions, assembly tips report damage,
or request parts. www.walkeredison.com
Revised 08/2019
Copyright
2018, by Walker Edison Furniture Co., LLC. All rights reserved.
c
P .1
Advertisement
Related Manuals for Walker Edison AF20MATST
Summary of Contents for Walker Edison AF20MATST

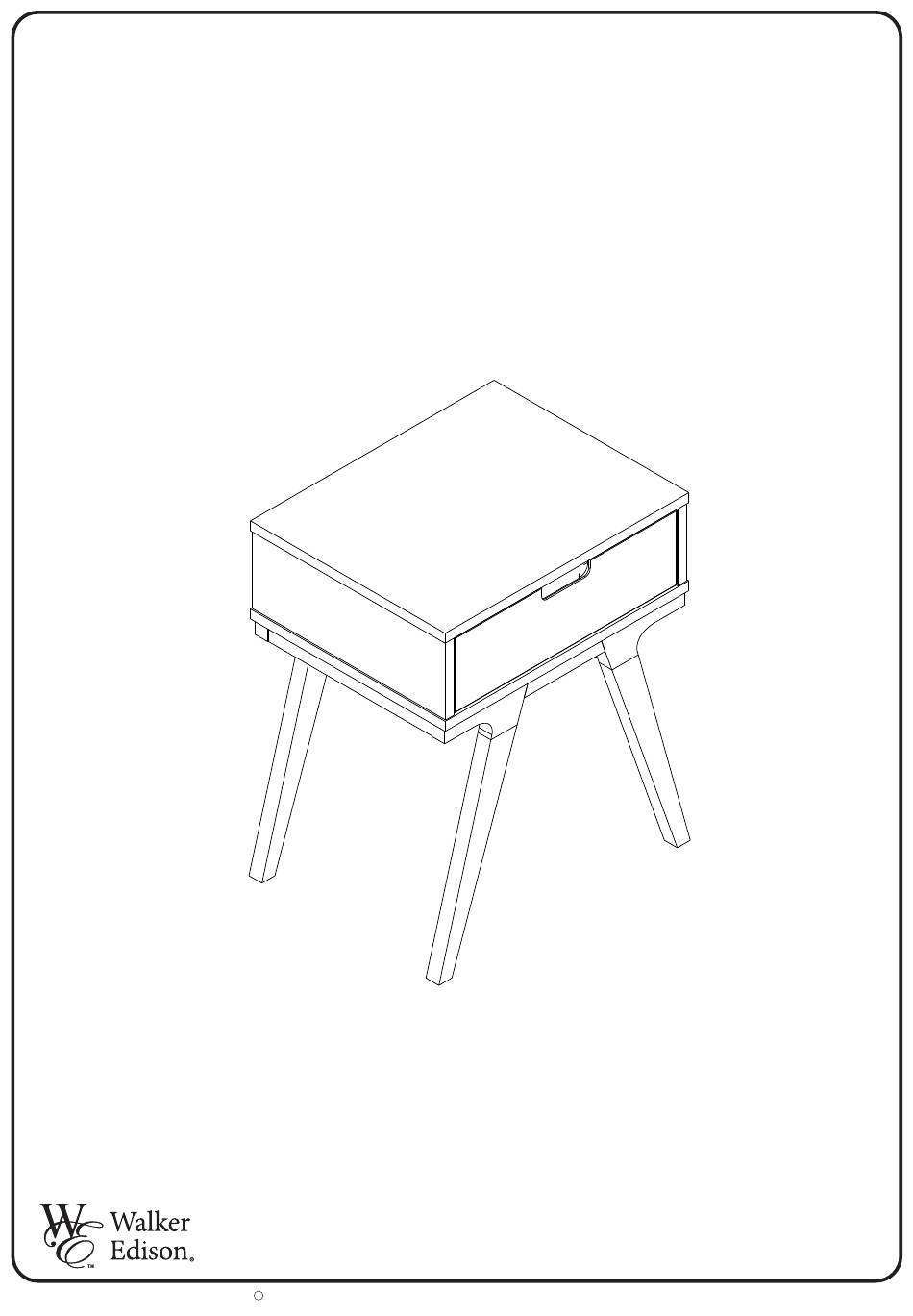

- Page 1 Item #: AF20MATST Assembly Instruction Please visit our website for the most current instructions, assembly tips report damage, or request parts. www.walkeredison.com Revised 08/2019 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P .1...
- Page 3 P .3...
- Page 4 5,5x28mm Cam Bolt 06 pcs 14x14mm Cam Lock 06 pcs 4,0x4 mm 24 pcs 4,0x3 mm 14 pcs 3,0x16 mm 11 pcs 34 pcs 8,0x30 mm Drawer Limiter 01 pc P .4...
- Page 5 Step 1 Place Wood Dowel (F) in parts 2,3,7,9,10,12,13. (2x) (2x) (2x) Attach Cam Bolt (A) to Part 1. Use Screw (E) to attach Step 2 Drawer Limiter (G) to Part 1. P .5...
- Page 6 Step 3 Use Cam Lock (B) to attach parts 2 and 3 to part 1. (6x) Back Attach part 4 to the body using Screw (D). Step 4 (6x) Attach part 5 to the body using Screw (E). Step 5 (10x) P .6...
- Page 7 Step 6 Use Screw (C) to attach part 7 to part 8 and 6. Remember to reverse the parts and repeat. 180° (4x) Attach Legs, parts 9 and 10 to the body using Screw (C). Step 7 (20x) P .7...
- Page 8 Step 8 Attach parts 13 and 12 to part 11 using Screw (D). Insert part 14 into the drawer and attach part 15 to the drawer using Screw (D). (8x) Step 9 P .8...
