Summary of Contents for Toguard CE18A

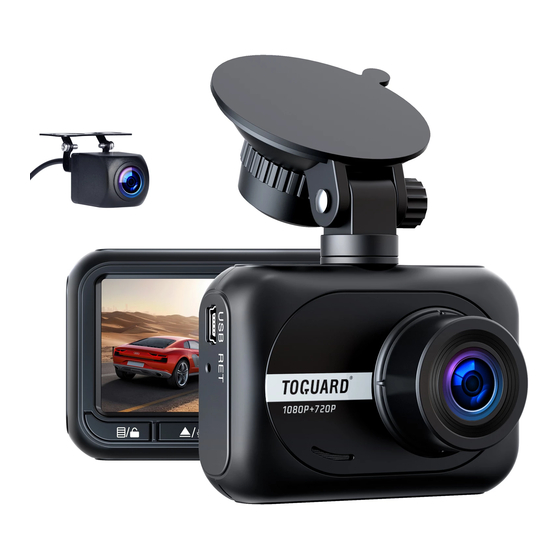

- Page 2 Toguard CE18A 1080P+720P Dash Camera 1080P+720P...
- Page 4 Important Notice: ● This product is intended for using in motor vehicles only. Do NOT install the camera where it might block the driver’s view of road (including the mirrors) or the deployment of the airbag. Before using this device, please insert the memory card first, and ●...
- Page 6 Interface and Button Function Mount Socket Power Reset Memory Card Slot FHD 1080P Speaker Lens Menu / Up / Down Mode Mute...
-
Page 7: Button Function
Button Function: When the camera is off, press and hold power button to turn on the camera. Under any mode, press and hold power button to turn Power off the camera. When the camera is on, short press to turn on/off screen display. -
Page 8: Setup And Installation
(speed Class 10 or above),and format the card in the camera menu before recording. 2.Use the suction cup mount to install the CE18A dash cam on the windshield. The recommended place is near the rearview mirror facing front, adjust the lens angle for best coverage. -
Page 9: Operating Mode
Operating Mode: The CE18A operates in 3 modes: Video Recording Mode, Photo Mode and Playback Mode. These modes also have menu to help you configure recording and taking photos. Press and hold “Menu”to switch between different modes and access to the mode you want. - Page 10 4 5 6 7 00 00 28 1080P A B C D E F G H I 2021/01/13 15 10 13 1. Video Mode Icon 9. Video Resolution 2. Loop Recording Status 10. Rear screen 3. Motion Detection 11. Parking Monitor Status 4.
-
Page 11: Video Recording Menu
Video Recording Menu: Resolution Resolution Loop Recording Motion Detection Resolution: Adjust recording video resolution, 1080P/ 720P/ VGA available.When connected to the rear camera, recording wideo resolution: 1080P+720P/720P+720P/VGA+VGA Loop Recording: This function allows you to set video length to 1/3/5minutes, select a value to activate loop recording, so when storage is full, it will automatically loop back to the earliest file and record over it. - Page 12 Resolution Audio Recording: Date Stamp G-Sensor Parking Monitor Audio Recording: Turn ON/OFF audio recording in video. Date Stamp : Enable/Disable the date and time marks in video files. G-Sensor : G-sensor will detect significant or sudden shock and movement, then automatically locks current file from loop recording.
-
Page 13: Photo Taking Mode
Photo Taking Mode: The CE18A camera can operate in Photo Taking Mode, and take HD photo up to 12 Mega pixels. To take a photo: Simply power on the CE18A camera. Press Mode to select Photo Mode, and press OK to take photo . -
Page 14: Photo Mode Menu
Photo Mode Menu: Resolution Resolution Anti-Shake Date Stamp Resolution : Set the photo resolution, Up to 12MP available. Anti-Shake : Turn on to stabilize photo, reduce shaking. Date Stamp : Enable/Disable the date and time stamp in photo. Playback Mode: This mode allows you to play back recorded video or view photos. -
Page 15: Playback Menu
Playback Menu: After choosing a recorded video or photo, press the Menu button once to access the setting menu for Playback Mode. Resolution Delete Protection Slideshow Delete: Delete the current file displayed or delete all files. Protection: Lock/Unlock the current file displayed or Lock/ Unlock all files. -
Page 16: System Setting Menu
System Setting Menu: Press MENU button twice to access System Setting Menu in any mode. The TOOL icon is highlighted in the upper left corner. Resolution Screen Saver Auto Power Off Frequency Beep Sound Screen Saver: Set the time to automatically turn off the LCD display after no operation. - Page 17 Resolution Language Date/Time Frequency Format Default Setting Language : Chinese/English/Japanese/Deutsh/French/ Italian/Spanish Date/Time: Change the time and date by using the UP and DOWN button, then press OK to confirm. Format: Format the Micro SD card. Default Setting: Reset all settings back to factory default. Version: Check firmware version.
-
Page 18: Specification
Specification : Toguard CE18A Model Image Sensor High Resolution CMOS Sensor Screen 2.45 inch LCD Display 170° High-Resolution Wide Angle Lens Lens 1920*1080P+1280*720P/ Video Resolution 1280*720P+1280+720P/ 640*480P+640*480P Video Format Video Coding H.264 Picture Format 12MP / 10MP / 8MP / 5MP /3MP/2MP/ Photo Resolution 1.3MP/VGA... -
Page 19: Common Problems And Solutions
Storage temperature -4°F~140°F (-20°C~60°C) Operating -10°C~50°C） °F~122°F（ temperature Common Problems and Solutions: Q: Even though set the screen saver, but the screen will randomly. A: The power supply might not be stable, please change another car charger to try. Q: Why dash cam drain car battery? A: Please check whether the cigarette lighter still be on after you turn off car engine. - Page 20 2.Please soak suction mount to warm water for a moment. If it is still not working, we are glad to send a new suction mount to you, please contact us (support@toguard.cc) to get a replacement. Q: Without external power supply, the camera only lasts very short time, or it just can’t turn on.
- Page 21 Not having a positive experience? Please contact us by support@toguard.cc We will offer prompt and authoritative reply within 24 hours and try our best to resolve your problem ASAP. More Safe Guarantee with Toguard!
