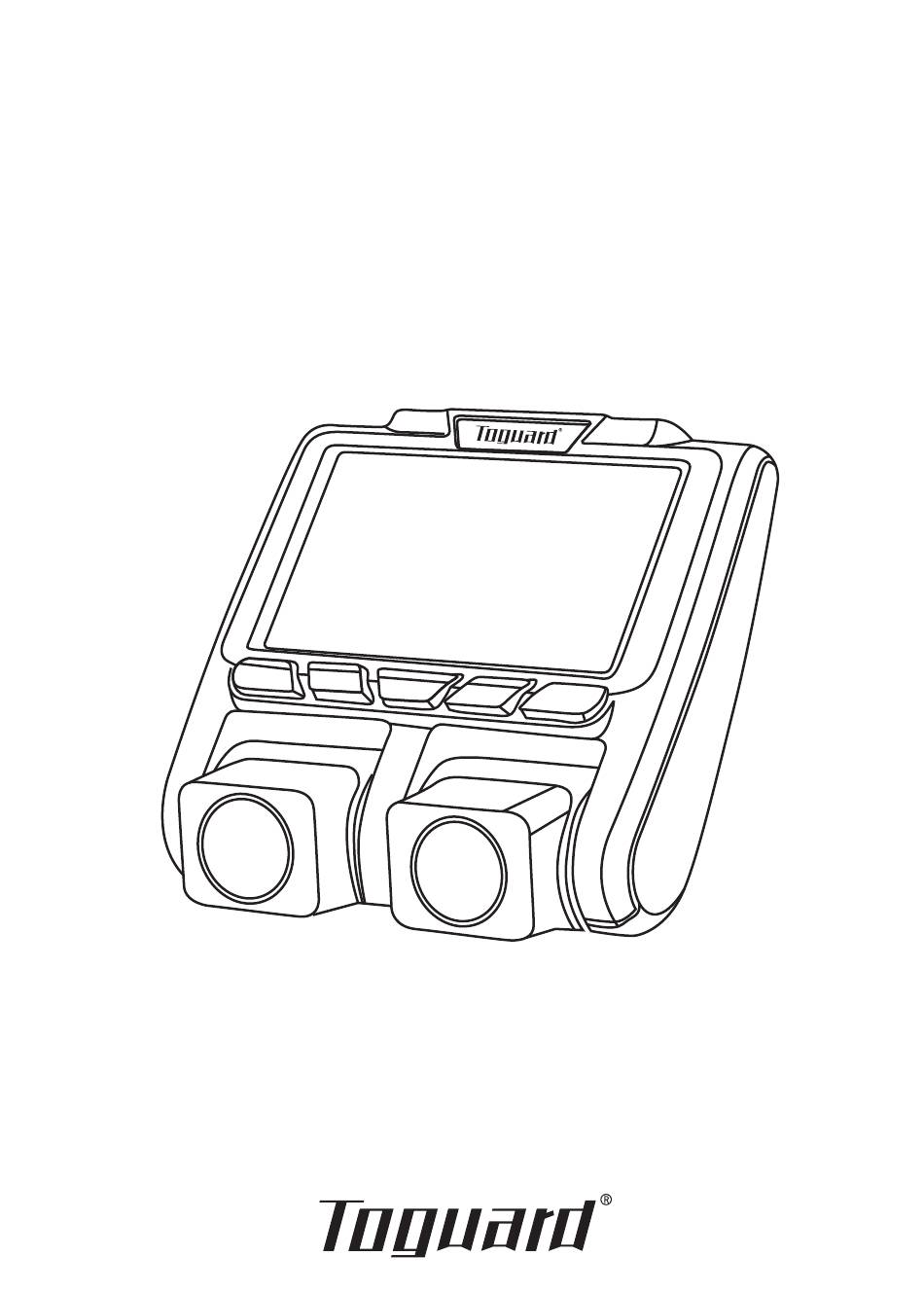

- Page 1 Toguard CE45 Dual Channel Full HD 1080P Dash Camera...
-
Page 3: Important Notice
IMPORTANT NOTICE 1. This product is intended for use in motor vehicle only. Do NOT install the camera where it might block the driver’s view of road (including the mirrors) or the deployment of the airbag. 2. As default, The A lens is facing backward, used to record inside of the car;... - Page 5 IMPORTANT NOTICE 1.LED Indicator 2.LCD Screen 3.OK / Shutter 4.UP / Display Switch 5.Power 6.Down / Audio Switch 7.Mode / Menu 8.A Lens 9.B Lens 10. Reset 11. Card Slot 12. Mini USB 13. AV out...
-
Page 6: Button Functions
Button Functions Button Operation and Functions Press and hold to turn ON/OFF the camera Power When the camera is on, short press it to dim the screen display, press any key to light up the screen again. In Setting Menu, short press to select option and adjust values. In Playback, short press to select media files. -
Page 7: Setup And Installation
Cigarette lighter Socket 1. Use the sticker mount or the suction cup mount to install the CE45 dash cam on the windshield, recommended position is near the rearview mirror near the passenger seat, adjust both lens angle for best coverage. -
Page 8: Operating Mode
Operating Mode The CE45 camera operates in 3 modes: Video Recording Mode, Photo Mode and Playback Mode, These modes also have menu to help you configure recording and taking photos. In standby (video recording stopped), press and hold M button to switch between different modes and access the mode you want. - Page 9 1. Video Mode Icon 2. Loop Recording Status 7. Recording Time 3. Motion Detection Status 8. A/B Lens Display Mode 4. Audio Recording Status 9. Memory Card Status 5. Parking Monitor Status 10. Power Status 6. Locked Video Icon 11. Time & Date Video Recording Mode Setup Menu In all 3 operating mode, you can press the M button once to...
- Page 10 Resolution: Adjust recording video resolution, the options are: A-2160P 24fps: Only A lens recording at 2880*2160 / 24fps. A-1440P 30fps: Only A lens recording at 2560*1440 / 30fps. A-1080P 30fps: Only A lens recording at 1920*1080 / 30fps. A-1080P + B-1080P: A lens and B lens recording at 1920*1080 / 30fps simultaneously.
- Page 11 The CE45 camera can operate in Photo Taking Mode, and take HD photo up to 12 Mega pixels. To Take a Photo : Power on the CE45 camera. Press and hold M button to select Photo Mode, and Press OK, then ]the camera will take 2 photos from A lens and B lens.
-
Page 12: System Setup Menu
Photo Taking Mode Setup Menu Resolution: Set the photo resolution, 12MP/10MP/8MP/ 5MP/ 3MP/VGA available. Exposure Compensation: Adjust exposure value to adjust the brightness of the photo. Date Stamp: Enable/Disable the date and time marks in image files. System Setup Menu In standby under any mode, short press M button twice to access System Setup Menu. -
Page 13: Specification
/ 1 minutes / 3 minutes available. Format: Format the memory card. Default Setting: Reset all settings back to factory default. Version: Check firmware version. Specification Toguard CE45 Model High Resolution CMOS Sensor ImageSensor 3 inch LCD Display Screen Dual 170°... - Page 14 Video Format Video Coding H.264 Normal / Loop Record /Motion Detection Video Mode Picture Format JPEG Photo Resolution 12MP / 10MP / 8MP / 5MP/3MP/VGA Loop Recording 1 / 3 / 5minutes Power on Supported recording Supported G-Sensor Lock Supported English / French / Spanish /Portuguese/German/ Language Chinese/Russia/ Japanese...
-
Page 15: Common Problems And Solutions
Common Problems and Solutions 1.The dash cam will stop automatically when recording. Solution: (1) Check whether the memory is full. (2) Check whether the loop recording function of the dash cam is working. (3) Check the memory card write speed, make sure it is a high speed card (Class 10 or above). - Page 16 3. If the video played on the computer is somehow not fluent or jammed. Solution: (1) Check the memory card reading speed, make sure it is at least a Class 10 card. (2) Try the video with another player, POTplayer is recommended. 4.There are stripes interference in the image.
- Page 17 6. When the video play on your computer, the video will pause. Or the video mode is not compatible with the player. Solution: (1) Check the memory card reading speed, make sure it is at least a Class 10 card. (2) Try the video with another player, POTplayer is recommended.
- Page 18 We will offer prompt and authoritative reply within 24 hours and try our best to resolve your problem ASAP More Safe Guarantee with toguard. If you are not satisfied with our product. Please tell us about your thought That will be much appreciated.
