Summary of Contents for UniFlow MiCard PLUS-2 V2

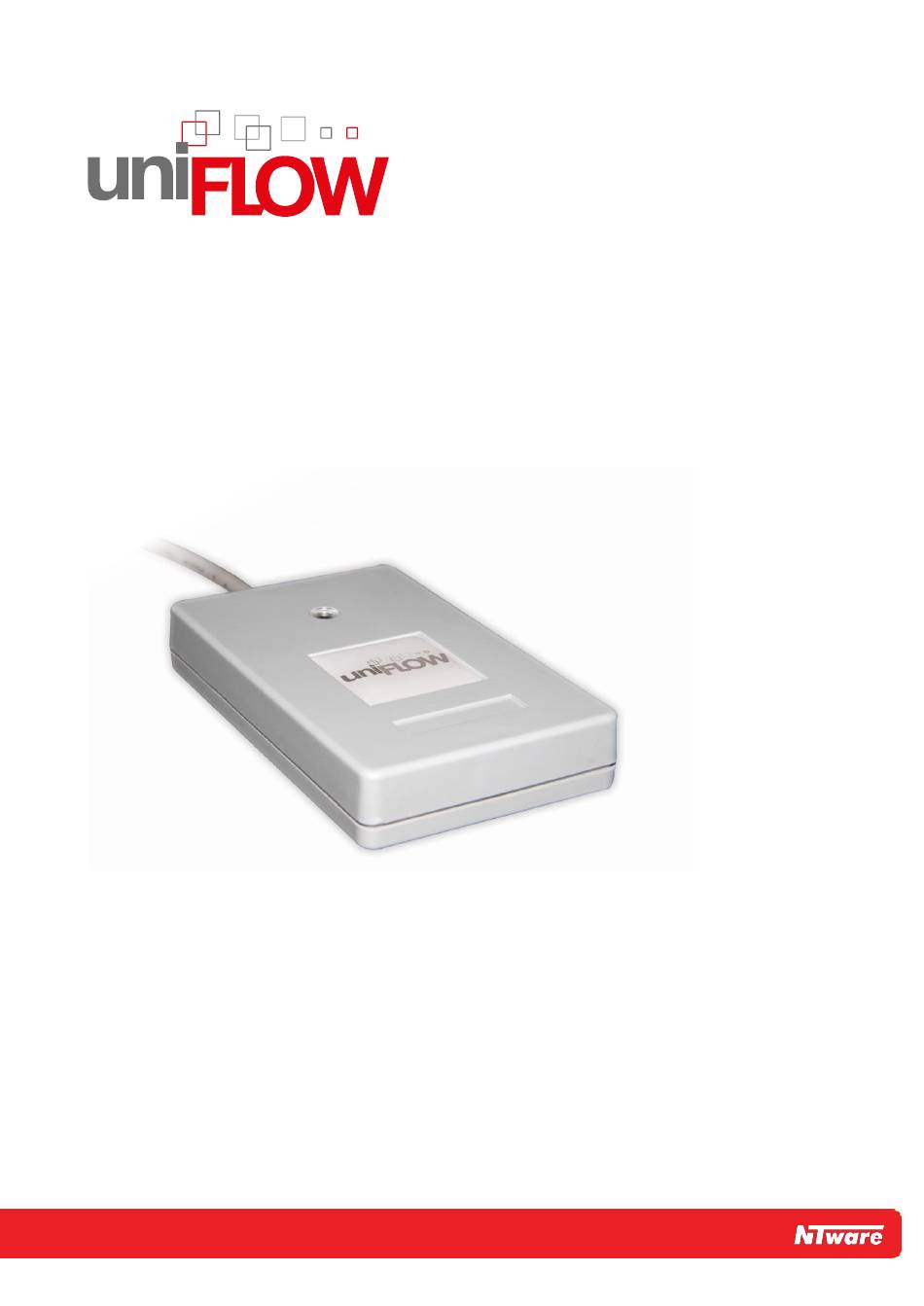

- Page 1 MiCard PLUS-2 V2 Installation Manual...
- Page 3 Holger Bauszus, Thomas Lemmer Thomas 31-May-2017 Claudia Kleinekemper Lemmer Thomas 18-Sep-2017 Thomas Lemmer Lemmer Document Name MiCard PLUS-2 V2 - Installation Manual https://web.nt-ware.net/its/browse/MOMKB-899 Knowledgebase MOMKB-899 ( File Name MiCard PLUS-2 V2 - Installation Manual - V1.2.pdf Technologies MiCard PLUS-2 V2 Concerned Short Summary Installation Manual for the NT-ware MiCard PLUS-2 V2.
- Page 5 Disclaimer NT-ware Systemprogrammierungs-GmbH, all its affiliates, partners and licensors disclaim all warranties, including, but not limited to, warranties about the accuracy or completeness of statements of this site's/document's content or the content of any site or external sites for a particular purpose. This site/document and the materials, information, services, and products at this site/document, including, without limitation, text, graphics, and links, are provided 'as is' and without warranties of any kind, whether expressed or implied.
- Page 6 SQL databases. We strongly suggest that you refrain from modifying these SQL databases manually without prior consultation from the NT-ware support team. NT-ware does not assume responsibility or liability for possible impact on your uniFLOW environment after modifying any of the SQL databases. Copyright and Contact NT-ware Systemprogrammierungs-GmbH Niedersachsenstraße 6...
- Page 7 Send feedback here button of the uniFLOW Online Help. Technical Support First technical support services will be provided by your dealer. Before you contact the dealer for technical support, ensure you have read this document.
- Page 8 This style is used for code examples: XML code, variables or regular expressions. Pictograms Important Note: Information that is crucial for the correct functioning of the uniFLOW software. Further Information: Pointer to additional manuals, installation manuals, white papers or the NT-ware Knowledgebase.
- Page 9 About this Document This document is delivered as part of the device / the software from NT-ware. Please read this document before using the device / the software and keep this document or the link to an online version of this document for future reference.
-
Page 11: Table Of Contents
MiCard PLUS-2 V2 Contents Contents Introduction ....................1 Connection ....................1 Beep Status ....................1 LED Status ....................2 Compatibility ....................2 Configuration Utility ................... 3 Specifications ..................... 4 Supported Card Types ....................5 Mounting Options ......................6 Compliance and Disposal Notes ..................7... -
Page 13: Introduction

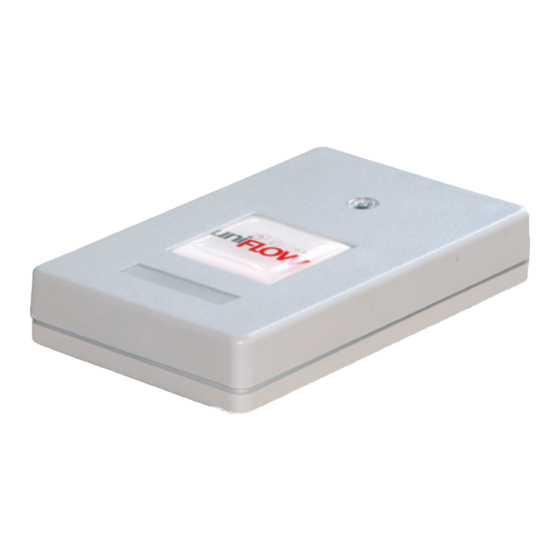

MiCard PLUS-2 V2 Introduction The MiCard PLUS-2 V2 is a USB card reader that combines proximity and contactless technologies into one single reader. MiCard PLUS-2 V2 possesses the capabilities of reading both 125 kHz proximity cards and 13.56 MHz contactless cards. This reader eliminates the need for manual entry and provides error-free identification and security throughout the workplace. -
Page 14: Led Status
With the Configuration Utility (on page 3) the beeper volume can be set to one of four different volumes: off, low, medium and high. LED Status The table below shows the LED status information given by the MiCard PLUS-2 V2. Status Green LED... -
Page 15: Configuration Utility
MiCard PLUS-2 V2 Configuration Utility The MiCard PLUS-2 V2 can be configured with the pcProxConfig tool. Configuration via uniFLOW Server Configuration > Connections > Agents/Terminals > MiCard is not possible. The pcProxConfig tool must be installed on a Windows computer first. -
Page 16: Specifications
MiCard PLUS-2 V2 Specifications MiCard PLUS-2 V2 - RDR-80081AGU-NT2-20 Model: USB-powered Power Supply: USB Type A, pre-wired 50 cm (19.7 ") USB cable USB Connector: Tri-state LED, dual tone beeper Indicators: 125 kHz Transmit Frequency: ... -
Page 17: Supported Card Types
MiCard PLUS-2 V2 Supported Card Types 125 kHz Supported Cards AWID Cardax UID CASI-RUSCO® CDVI Cotag Deister UID DIGITAG Dimpna UID EM 410x EM 4102 EM 4150 GProx™ II UID GProx™ II ID HID® Prox HiTag 1 HiTag 2... -
Page 18: Mounting Options
Others: eTag CSN Inside Secure CSN Default Setting The default setting of the MiCard PLUS-2 V2 supports the following card types: HID® Prox HID iCLASS® ID Mounting Options There are different ways of mounting MiCard card readers to the printer, depending on the device manufacturer and model of the MFD. -
Page 19: Compliance And Disposal Notes
MiCard PLUS-2 V2 Compliance and Disposal Notes FCC Compliance Notes (for USA) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 20 MiCard PLUS-2 V2 designated collection points, in accordance with your national legislation and the Directive 2012/19/EU. The correct disposal of this product will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling.
-
Page 21: Index
MiCard PLUS-2 V2 Index Index Beep Status ............1 Introduction ............1 Compatibility ............ 3, 2 LED Status .............2 Compliance and Disposal Notes ......7 Configuration Utility ......... 2, 3 Mounting Options ..........6 Connection ............1 Specifications ............ 3, 4 Disclaimer ............. 5 Supported Card Types ..........5... - Page 22 © NT-ware 2009-2017...
