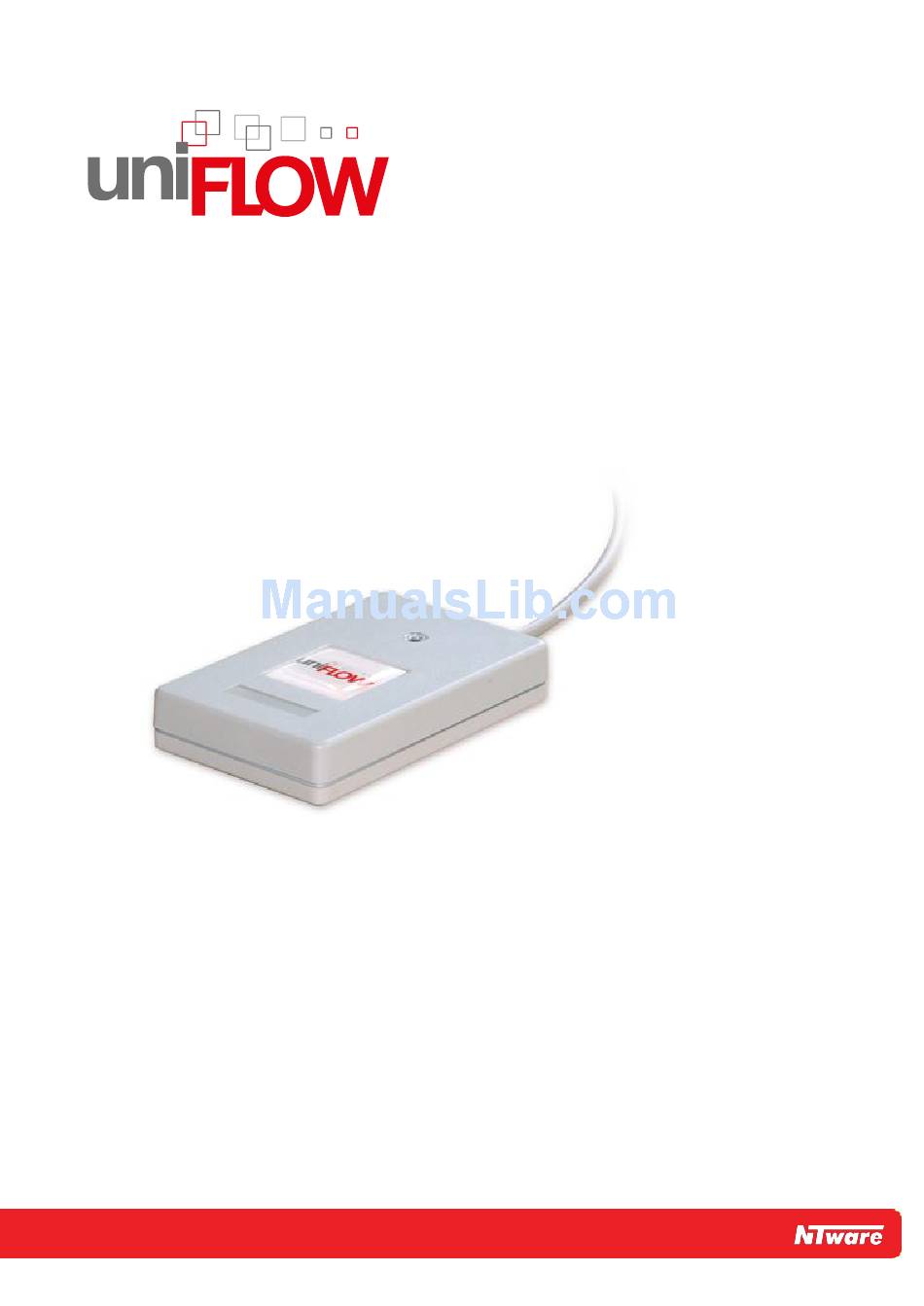

- Page 1 MiCard PLUS - Installation Manual...
- Page 3 MiCard PLUS concerned Short Summary Installation Manual for the NT-ware MiCard PLUS. Document Version Changes changes Added the two default card types, supported by the MiCard PLUS. Corrected a versioning information for microMIND V2. Smaller corrections and improvements. Corrected the disclaimer.
- Page 5 Eisfeld Datentechnik GmbH & Co. KG; Red Titan EscapeE of Red Titan Limited; NETHAPHOR ®, SiteAudit™ are trademarks of NETAPHOR SOFTWARE Inc.; Therefore™ of Therefore; UNIX® of The Open Group; uniFLOW OM®, uniFLOW™, uniFLOW Serverless Secure Printing®, MIND®, microMIND®, and MiCard® are registered trademarks of NT-ware Systemprogrammierung GmbH;...
- Page 6 Symbols Text Styles Text that appears in this style is used for screen text that appears in the uniFLOW user interface and on user interface controls. Text that appears in this style is used for User entries on screen, text that the user actually has to type in.
-
Page 7: Table Of Contents
MiCard PLUS - Installation Manual Contents Contents Introduction ..........................2 Compatibility ........................... 2 Supported Card Types ......................3 Specifications .......................... 4 FCC and IC Compliance Note ..................... 5 Configuration Utility ........................ 6... -
Page 8: Introduction

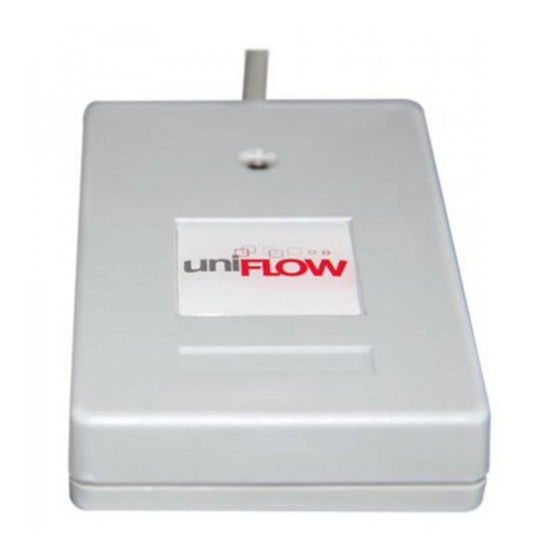

MiCard PLUS - Installation Manual Introduction The MiCard PLUS is a USB card reader that combines proximity and contactless technologies into one single reader. MiCard PLUS possesses the capabilities of reading both 125 kHz proximity cards and 13.56 MHz contactless cards. This reader eliminates the need for manual entry and provides error-free identification and security throughout the workplace. -
Page 9: Supported Card Types
13,56 MHz Supported Cards Advant CSN (Legic) eTag CSN HID iCLASS CSN I-Code CSN I-tag CSN ISO 14443A CSN ISO 15693 CSN MIFARE CSN The default setting of the MiCard PLUS supports the following card types: HID® Prox MIFARE CSN... -
Page 10: Specifications
MiCard PLUS - Installation Manual Specifications Typical Maximum Read Range: 2,5 cm – 7,6 cm (1.0" – 3.0") dependent upon proximity card type and environmental conditions. Dimensions: 9 cm x 5,55 cm x 1,8 cm (3.5" x 2.2" x 0.7") ... -
Page 11: Fcc And Ic Compliance Note
MiCard PLUS - Installation Manual FCC and IC Compliance Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 12: Configuration Utility
MiCard PLUS - Installation Manual Configuration Utility The MiCard PLUS can be configured with the pcProxConfig tool. The pcProxConfig tool must be installed on a Windows computer first. Download the software and manual here: pcProxConfig (Software Manual download) http://www.nt-ware.com/mom/add_software_download/files/MiCard_Plus/pcProxCo nfig.zip When downloaded, unzip the file and run the pcProxConfig.exe file. - Page 14 © NT-ware 2009-2012...
