WARNING:
To reduce the risk of serious
injury and/or property damage,
observe all warnings and
instructions while operating the
tool. Keep work area clean and well
lit. Maintain tool in top condition and
obtain service from manufacturer if
tool malfunctions. Use only
accessories and replacement parts
that are provided by the
manufacturer.
Always wear proper personal
protection when operating welder.
A full face shield per ANSI Z87.1-
2003 standard is required at all times
to protect face and eyes against
injury from flying parts. Adequate
gloves and clothing are required to
reduce the risk of burns. Allow parts
to cool before handling.
IF YOU HAVE ANY QUESTIONS ABOUT THE OPERATION OF PRODUCT CALL TOLL FREE
INSTRUCTIONS

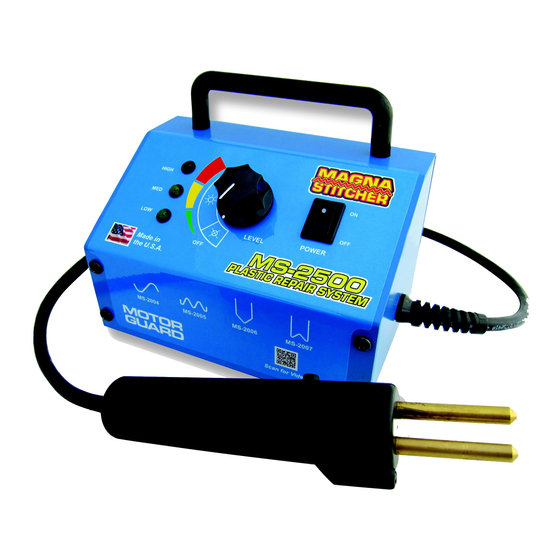

MAGNA-STITCHER
Plastic Repair System
Model MS-2500
Read and understand all instructions before attempting to operate tool.
Failure to follow instructions may result in electric shock, fire and/or serious
personal injury.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
8:00 am to 5:00 pm - Pacific Time - Monday through Friday
800-227-2822
TM
This tool must be connected to a
properly grounded outlet installed
in accordance with all local codes
and ordinances. Never remove the
grounding prong or modify the plug
in any way. Do not use adapter
plugs. Consult an electrician if you
are in any doubt as to whether the
plug is properly grounded. Avoid
bodily contact with grounded
surfaces.
Do not operate tool in explosive
atmospheres, such as in the
presence of flammable liquids,
gases or dust. Welders create
sparks which may ignite dust or
fumes. Use in well ventilated areas
only. Welders generate heat which
can ignite surrounding materials
causing fires.
Advertisement
Table of Contents
Related Manuals for Motor Guard Magna Stitcher MS-2500
Summary of Contents for Motor Guard Magna Stitcher MS-2500
- Page 1 INSTRUCTIONS MAGNA-STITCHER Plastic Repair System Model MS-2500 WARNING: Read and understand all instructions before attempting to operate tool. Failure to follow instructions may result in electric shock, fire and/or serious personal injury. IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of serious This tool must be connected to a ...
- Page 2 APPLICATION The Motor Guard Magna Stitcher Plastic Repair System can be used to perform structural repair of many plastic parts. The MS-2500 works by welding a rigid stainless steel stake into the surface of the plastic resulting in a permanent repair of the crack. Repairs can be made on flat surfaces, tabs, holes, ribs, inside and outside corners.
- Page 3 GENERAL REPAIR PROCEDURE WITH MAGNA STAKES Insert stake into Electrodes (5) as shown in Figure 2. Three positions are available to insert stakes at different angles. Fig. 2 Place stake against surface to be repaired while applying moderate pressure. Depress the Trigger Button (3) to heat the stake. While continuing to apply pressure, allow the stake to sink halfway through the thickness of the work piece.
- Page 4 Motor Guard Corporation assumes the responsibility of providing products that are free from defects in workmanship and material. Should a product fail due to a defect in workmanship or material, Motor Guard Corporation will repair or, at its option, replace the product without charge, other than the transportation charges, provided that the product is returned to the factory, transportation prepaid, within One (1) Year of the date of purchase.
